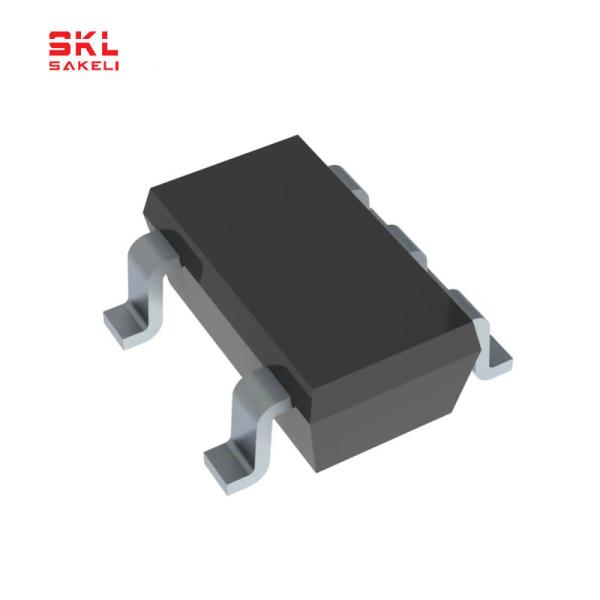

TLV62568DBVR PMIC IC Step-Down Buck DC-DC Converter Switching Regulators 5.5V
TLV62568DBVR PMIC IC Step-Down Buck DC-DC Converter Switching Regulators 5.5V
Specifications
Brand Name :
TI
Model Number :
TLV62568DBVR
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1 - 3 days
Packaging Details :
standard
Mounting Type :
Surface Mount
Operating Temperature :
-40°C ~ 125°C (TA)
Package / Case :
SC-74A, SOT-753
Supplier Device Packag :
SOT-23-5
Voltage - Input (Min) :
2.5V
Voltage - Input (Max) :
5.5V
PN :
TLV62568DBVR
Description
TLV62568DBVR Power Management ICs
SOT-23-5 Step-Down Buck DC-DC Converter Switching Regulators 5.5V

Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
2.5V
Voltage - Input (Max)
5.5V
Voltage - Output (Min/Fixed)
0.6V
Voltage - Output (Max)
5.5V
Current - Output
1A
Frequency - Switching
1.5MHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
SC-74A, SOT-753
Supplier Device Package
SOT-23-5
Base Product Number
TLV62568

TLV62568DBVR Applications


• General Purpose POL Supply
• Network Video Camera
• Set Top Box
• Wireless Router

Description


The TLV62568DBVR device is a synchronous step-down buck DC-DC converter optimized for high efficiency and compact solution size. The device integrates switches capable of delivering an output current up to 1 A.

At medium to heavy loads, the device operates in pulse width modulation (PWM) mode with 1.5-MHz switching frequency. At light load, the device automatically enters Power Save Mode (PSM) to maintain high efficiency over the entire load current range. In shutdown, the current consumption is reduced to less than 2 µA.

The TLV62568DBVR provides an adjustable output voltage via an external resistor divider. An internal soft start circuit limits the inrush current during startup. Other features like over current protection, thermal shutdown protection and power good are built-in. The device is available in a SOT23 and SOT563 package.
