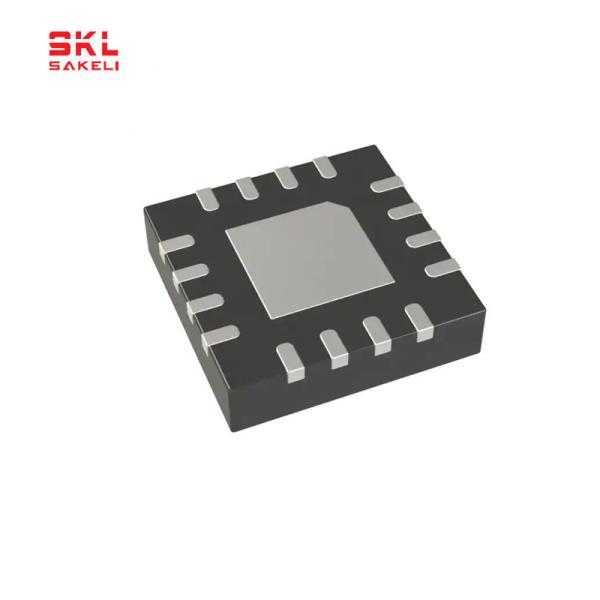

AD8338ACPZ-R7 Amplifier IC Chips Variable Gain Amplifier 1 Circuit Package 16-LFCSP
AD8338ACPZ-R7 Amplifier IC Chips Variable Gain Amplifier 1 Circuit Package 16-LFCSP
Specifications
Brand Name :
ADI
Model Number :
AD8338ACPZ-R7
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Slew Rate :
50V/µs
-3db Bandwidth :
18 MHz
Voltage - Input Voltage - Supply Span (Min) :
3 V
Voltage - Supply Span (Max) :
5 V
Operating Temperature :
-40°C ~ 85°C
Mounting Type :
Surface Mount
Description

AD8338ACPZ-R7 Amplifier IC Chips Variable Gain Amplifier 1 Circuit Package 16-LFCSP

Product Status
Active
Amplifier Type
Variable Gain
Number of Circuits
1
Output Type
-
Slew Rate
50V/µs
-3db Bandwidth
18 MHz
Current - Supply
-
Voltage - Supply Span (Min)
3 V
Voltage - Supply Span (Max)
5 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
16-WFQFN Exposed Pad, CSP
Supplier Device Package
16-LFCSP (3x3)

FEATURES
► Voltage controlled gain range of 0 dB to 80 dB
► 3 mA supply current at gain of 40 dB
► Low frequency (LF) to 18 MHz operation
► Supply range: 3.0 V to 5.0 V
► Low noise: 4.5 nV/√Hz at 80 dB gain
► Fully differential signal path
► Offset correction (offset null) feature
► Internal 1.5 V reference
► 16-lead LFCSP
► Automatic gain control feature
► Wide gain range for high dynamic range signals
APPLICATIONS
► Front end for inductive telemetry systems
► Ultrasonic signal receivers
► Signal compression for driving an ADC
► AGC amplifiers
