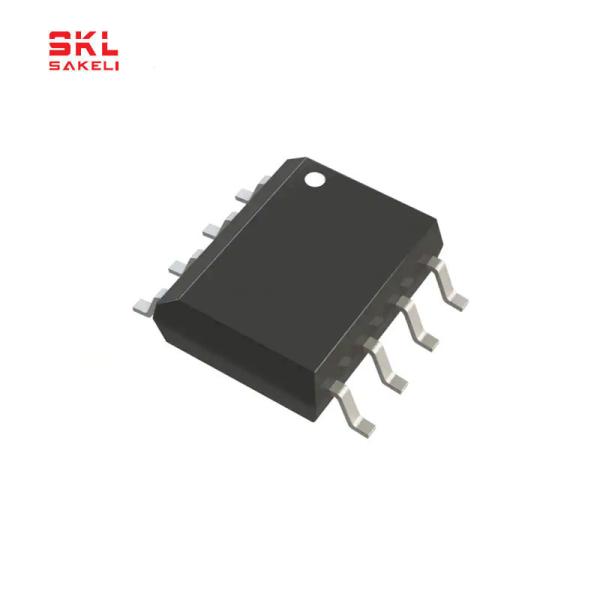

AD823ARZ-R7 Amplifier IC Chips OPAMP JFET Package 8SOIC Dual 16 MHz FET Input Amplifier
AD823ARZ-R7 Amplifier IC Chips OPAMP JFET Package 8SOIC Dual 16 MHz FET Input Amplifier
Specifications
Brand Name :
ADI
Model Number :
AD823ARZ-R7
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Product Status :
Active
Slew Rate :
25V/µs
Current - Input Bias :
5 pA
Voltage - Input Offset :
700 µV
Current - Supply :
7mA
Current - Output / Channel :
17mA
Description

AD823ARZ-R7 Amplifier IC Chips OPAMP JFET Package 8SOIC Dual 16 MHz FET Input Amplifier

Amplifier Type
J-FET
Number of Circuits
2
Output Type
Rail-to-Rail
Slew Rate
25V/µs
-3db Bandwidth
16 MHz
Current - Input Bias
5 pA
Voltage - Input Offset
700 µV
Current - Supply
7mA
Current - Output / Channel
17 mA
Voltage - Supply Span (Min)
3 V
Voltage - Supply Span (Max)
36 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC

FEATURES
Single-supply operation
Output swings rail-to-rail
Input voltage range extends below ground
Single-supply capability from 3 V to 36 V
High load drive
Capacitive load drive of 500 pF, G = +1
Output current of 15 mA, 0.5 V from supplies
Excellent ac performance on 2.6 mA/amplifier
−3 dB bandwidth of 16 MHz, G = +1
350 ns settling time to 0.01% (2 V step)
Slew rate of 22 V/µs
Good dc performance
800 µV maximum input offset voltage
2 µV/°C offset voltage drift
25 pA maximum input bias current
Low distortion: −108 dBc worst harmonic @ 20 kHz
Low noise: 16 nV/√Hz @ 10 kHz
No phase inversion with inputs to the supply rails
APPLICATIONS
Battery-powered precision instrumentation
Photodiode preamps
Active filters
12-bit to 16-bit data acquisition systems
Medical instrumentation
