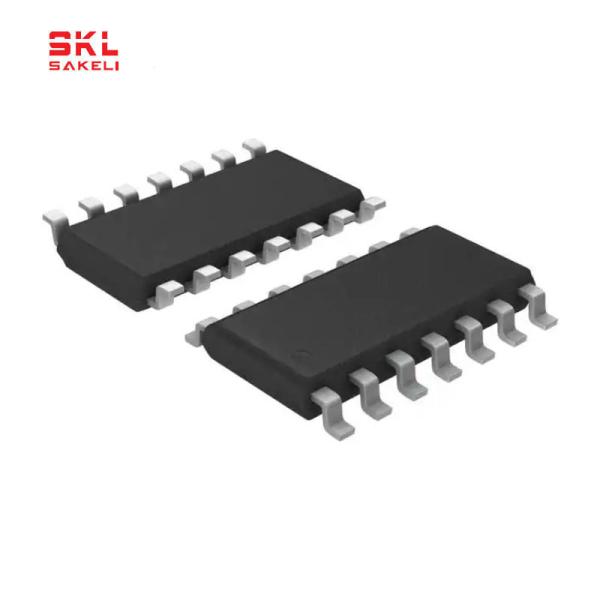

MAX4614ESD+T IC Integrated Chip Fast Switching Rail-To-Rail Signal Handling 70MHz
MAX4614ESD+T IC Integrated Chip Fast Switching Rail-To-Rail Signal Handling 70MHz
MAX4614ESD+T IC Integrated Chip Fast Switching Rail-To-Rail Signal Handling 70MHz
MAX4614ESD+T IC Integrated Chip Fast Switching Rail-To-Rail Signal Handling 70MHz
Specifications
Brand Name :
ADI / MAXIM
Model Number :
MAX4614ESD+T
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1 - 3 days
Packaging Details :
standard
Mounting Type :
Surface Mount
Operating Temperature :
-40°C ~ 85°C (TA)
Package / Case :
14-SOIC
Supplier Device Package :
14-SOIC
Voltage - Supply, Single (V+) :
2V ~ 5.5V
Number of Circuits :
1
PN :
MAX4614ESD+T
Description
MAX4614ESD+T Electronic Components
IC Chips 14-SOIC Circuit Switch Rail-To-Rail® Signal Handling 10Ohm

Product Status
Active
Switch Circuit
SPST - NO
Multiplexer/Demultiplexer Circuit
1:1
Number of Circuits
4
On-State Resistance (Max)
10Ohm
Channel-to-Channel Matching (ΔRon)
200mOhm
Voltage - Supply, Single (V+)
2V ~ 5.5V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
12ns, 10ns
-3db Bandwidth
70MHz
Charge Injection
6.5pC
Channel Capacitance (CS(off), CD(off))
5pF, 5pF
Current - Leakage (IS(off)) (Max)
1nA
Crosstalk
-96dB @ 100kHz
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
14-SOIC (0.154", 3.90mm Width)
Supplier Device Package
14-SOIC
Base Product Number
MAX4614

Features


● Fast Switching Times
• 12ns tON, 10ns tOFF
● Pin Compatible with Industry-Standard 74HC4066/MAX4610
● Guaranteed On-Resistance
• 10Ω max (+5V supply)
• 20Ω max (+3V supply)
● Guaranteed Match Between Channels (1Ω max)
● Guaranteed Flatness Over Signal Range (1Ω max)
● <6nA Off-Leakage Current Over Temperature (TA = +85°C)
● Rail-to-Rail® Signal Handling
● TTL/CMOS-Logic Compatible
