ADG904BCPZ-REEL7 Electronic Components IC Chips CMOS 1.65V 2.75 V Mux SP4T
ADG904BCPZ-REEL7 Electronic Components IC Chips CMOS 1.65V 2.75 V Mux SP4T
Specifications
Brand Name :
ADI / MAXIM
Model Number :
ADG904BCPZ-REEL7
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Product Status :
Active
Multiplexer/Demultiplexer Circuit :
-
On-State Resistance (Max) :
-
Voltage - Supply, Single (V+) :
1.65V ~ 2.75V
Voltage - Supply, Dual (V±) :
-
Switch Time (Ton, Toff) (Max) :
10ns, 16ns
PN :
ADG904BCPZ-REEL7
Description

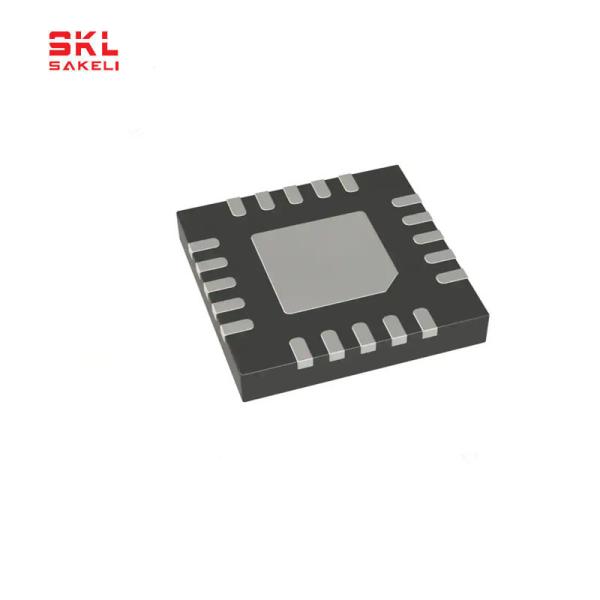

ADG904BCPZ-REEL7 Electronic Components IC Chips CMOS 1.65 V to 2.75 V 4:1 Mux SP4T Package 20-LFCSP

Product Status
Active
Switch Circuit
SP4T
Multiplexer/Demultiplexer Circuit
4:1
Number of Circuits
1
On-State Resistance (Max)
-
Channel-to-Channel Matching (ΔRon)
-
Voltage - Supply, Single (V+)
1.65V ~ 2.75V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
10ns, 16ns
-3db Bandwidth
2.5GHz
Charge Injection
-
Channel Capacitance (CS(off), CD(off))
2pF
Current - Leakage (IS(off)) (Max)
1µA
Crosstalk
-58dB @ 100MHz
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
20-WFQFN Exposed Pad, CSP
Supplier Device Package
20-LFCSP (4x4)
FEATURES
Wideband switch: –3 dB @ 2.5 GHz
ADG904: absorptive 4:1 mux/SP4T
ADG904-R: reflective 4:1 mux/SP4T
High off isolation (37 dB @ 1 GHz)
Low insertion loss (1.1 dB dc to 1 GHz)
Single 1.65 V to 2.75 V power supply
CMOS/LVTTL control logic
20-lead TSSOP and 4 mm × 4 mm LFCSP packages
Low power consumption (1 μA maximum)
Qualified for automotive applications
APPLICATIONS
Wireless communications
General-purpose RF switching
Dual-band applications
High speed filter selection
Digital transceiver front end switch
IF switching
Tuner modules
Antenna diversity switching
