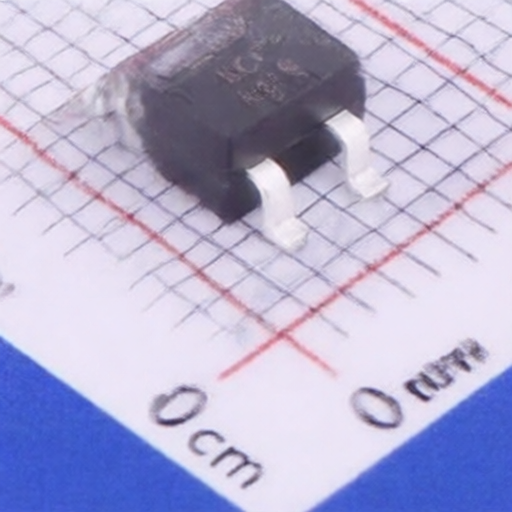

Durable MCC MB1S-TP glass passivated bridge rectifier for single phase applications up to 1000 volts
Durable MCC MB1S-TP glass passivated bridge rectifier for single phase applications up to 1000 volts
Specifications
Non-Repetitive Peak Forward Surge Current :
35A
Operating Junction Temperature Range :
-55℃~+150℃@(Tj)
Voltage - Forward(Vf@If) :
1V@0.4A
Current - Rectified :
500mA
Voltage - DC Reverse(Vr) :
100V
Description :
Bridge Rectifier 100V 0.5A Surface Mount MBS-1
Mfr. Part # :
MB1S-TP
Model Number :
MB1S-TP
Package :
MBS-1
Description

MB05S THRU MB10S 0.5 Amp Single Phase Glass Passivated Bridge Rectifier 50 to 1000 Volts

The MB05S thru MB10S series is a 0.5 Amp Single Phase Glass Passivated Bridge Rectifier designed for applications requiring reliable rectification from 50 to 1000 Volts. These rectifiers feature glass passivated diode construction, high temperature soldering guaranteed to 260C/10 seconds, and save space on printed circuit boards. They are suitable for various electronic applications and are available with a halogen-free option.

Product Attributes

  • Brand: MCC (Micro Commercial Components)
  • Construction: Glass Passivated Diode
  • Certifications: UL Recognized File # E165989, RoHS Compliant, Halogen free available upon request
  • Flammability Rating: Epoxy meets UL 94 V-0
  • Moisture Sensitivity Level: 1
  • Terminals: Plated leads, Solderable per MIL-STD-750, Method 2026

Technical Specifications

MCC Part Number Device Marking Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Average Forward Current (IF(AV)) Peak Forward Surge Current (IFSM) Maximum Instantaneous Forward Voltage (VF) Maximum DC Reverse Current (IR) Typical Thermal Resistance (RthJA) Typical Junction Capacitance (CJ) Rating For Fusing (I2t) Operating Junction and Storage Temperature Range (TJ TSTG)
MB05S MB05S 50V 35V 50V 0.5A (Note 2) / 0.8A (Note 3) 35A (8.3ms, half sine) 1.0V (IFM = 0.4A; TA = 25C) 100A (TA = 25C) / 5A (TA = 125C) 85 /W (Note 2) / 70 /W (Note 3) 13pF (Measured at 1.0MHz, VR=4.0V) 5.0As (t<8.30ms) -55 to +150C
MB1S MB1S 100V 70V 100V 0.5A (Note 2) / 0.8A (Note 3) 35A (8.3ms, half sine) 1.0V (IFM = 0.4A; TA = 25C) 100A (TA = 25C) / 5A (TA = 125C) 85 /W (Note 2) / 70 /W (Note 3) 13pF (Measured at 1.0MHz, VR=4.0V) 5.0As (t<8.30ms) -55 to +150C
MB2S MB2S 200V 140V 200V 0.5A (Note 2) / 0.8A (Note 3) 35A (8.3ms, half sine) 1.0V (IFM = 0.4A; TA = 25C) 100A (TA = 25C) / 5A (TA = 125C) 85 /W (Note 2) / 70 /W (Note 3) 13pF (Measured at 1.0MHz, VR=4.0V) 5.0As (t<8.30ms) -55 to +150C
MB4S MB4S 400V 280V 400V 0.5A (Note 2) / 0.8A (Note 3) 35A (8.3ms, half sine) 1.0V (IFM = 0.4A; TA = 25C) 100A (TA = 25C) / 5A (TA = 125C) 85 /W (Note 2) / 70 /W (Note 3) 13pF (Measured at 1.0MHz, VR=4.0V) 5.0As (t<8.30ms) -55 to +150C
MB6S MB6S 600V 420V 600V 0.5A (Note 2) / 0.8A (Note 3) 35A (8.3ms, half sine) 1.0V (IFM = 0.4A; TA = 25C) 100A (TA = 25C) / 5A (TA = 125C) 85 /W (Note 2) / 70 /W (Note 3) 13pF (Measured at 1.0MHz, VR=4.0V) 5.0As (t<8.30ms) -55 to +150C
MB8S MB8S 800V 560V 800V 0.5A (Note 2) / 0.8A (Note 3) 35A (8.3ms, half sine) 1.0V (IFM = 0.4A; TA = 25C) 100A (TA = 25C) / 5A (TA = 125C) 85 /W (Note 2) / 70 /W (Note 3) 13pF (Measured at 1.0MHz, VR=4.0V) 5.0As (t<8.30ms) -55 to +150C
MB10S MB10S 1000V 700V 1000V 0.5A (Note 2) / 0.8A (Note 3) 35A (8.3ms, half sine) 1.0V (IFM = 0.4A; TA = 25C) 100A (TA = 25C) / 5A (TA = 125C) 85 /W (Note 2) / 70 /W (Note 3) 13pF (Measured at 1.0MHz, VR=4.0V) 5.0As (t<8.30ms) -55 to +150C

2410121525_MCC-MB1S-TP_C507294.pdf
