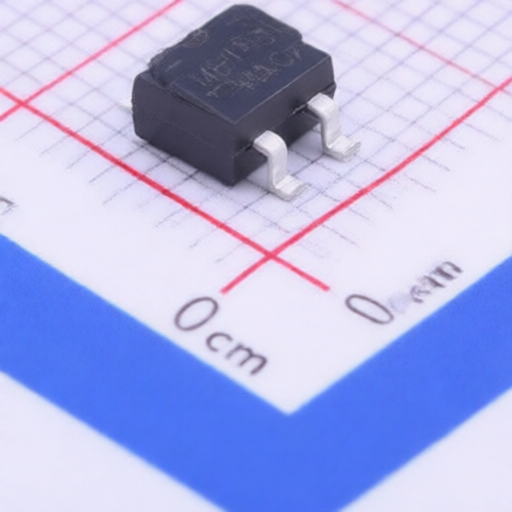

single phase rectifier Chongqing Pingwei Tech MB10S designed for printed circuit board electronic circuits
single phase rectifier Chongqing Pingwei Tech MB10S designed for printed circuit board electronic circuits
Specifications
Non-Repetitive Peak Forward Surge Current :
30A
Operating Junction Temperature Range :
-55℃~+150℃@(Tj)
Voltage - Forward(Vf@If) :
950mV@400mA
Current - Rectified :
1A
Voltage - DC Reverse(Vr) :
1kV
Description :
30A 950mV@400mA 1A 1kV MBS Bridge Rectifiers RoHS
Mfr. Part # :
MB10S
Model Number :
MB10S
Package :
MBS
Description

Product Overview

MB2S THRU MB10S are single-phase, 1.0 Amp glass-passivated bridge rectifiers designed for printed circuit board applications. They offer high surge current capability, reliable low-cost construction, and simple installation. These rectifiers are ideal for various electronic circuits requiring efficient rectification.

Product Attributes

  • Brand: MB (implied from part numbers)
  • Material: Glass Passivated Junctions, Molded Plastic Case
  • Certifications: UL 94V-0 rate flame retardant, MIL-STD- 202E Method 208 (Lead)

Technical Specifications

Type NumberMax Recurrent Peak Reverse Voltage (VRRM)Max RMS Voltage (VRMS)Max DC Blocking Voltage (VDC)Max Average Forward Rectified Current (IF(AV)) On glass-epoxy P.C.B / On aluminum substratePeak Forward Surge Current (IFSM) 8.3msMax Forward Voltage Drop (VF) per element at 0.4A DCMax DC Reverse Current (IR) @TA=25C / @TA=125CI2t Rating for Fusing (t<8.3ms)Typical Junction Capacitance Per Leg (CJ)Typical Thermal Resistance Per Leg (R(JA))Storage Temperature (TSTG)Operating Junction Temperature (TJ)
MB2S200 V140 V200 V0.8 A / 1.0 A30 A0.95 V10.0 A / 200.0 A3.74 ASec13 pF85 C/W-55 to +150 C-55 to +150 C
MB4S400 V280 V400 V0.8 A / 1.0 A30 A0.95 V10.0 A / 200.0 A3.74 ASec13 pF85 C/W-55 to +150 C-55 to +150 C
MB6S600 V420 V600 V0.8 A / 1.0 A30 A0.95 V10.0 A / 200.0 A3.74 ASec13 pF85 C/W-55 to +150 C-55 to +150 C
MB8S800 V560 V800 V0.8 A / 1.0 A30 A0.95 V10.0 A / 200.0 A3.74 ASec13 pF85 C/W-55 to +150 C-55 to +150 C
MB10S1000 V700 V1000 V0.8 A / 1.0 A30 A0.95 V10.0 A / 200.0 A3.74 ASec13 pF85 C/W-55 to +150 C-55 to +150 C

2409302333_Chongqing-Pingwei-Tech-MB10S_C360567.pdf
