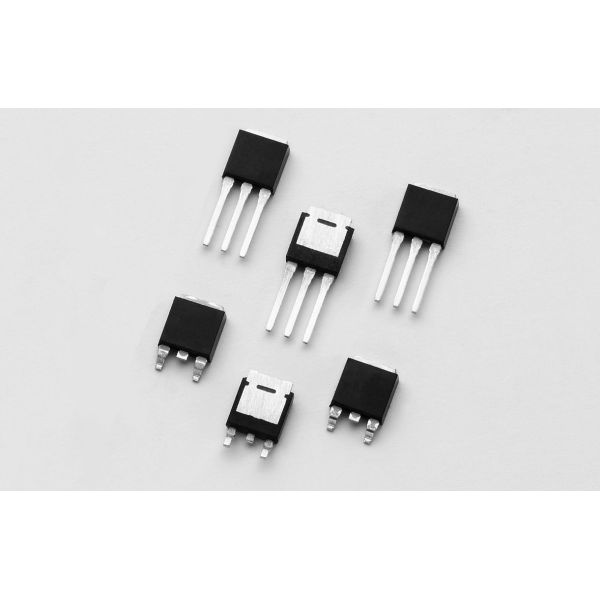

Uni directional SCR Littelfuse SJ6006DS2RP with surge current rating of 100A and halogen free design
Uni directional SCR Littelfuse SJ6006DS2RP with surge current rating of 100A and halogen free design
Specifications
Holding Current (Ih) :
6mA
Current - Gate Trigger(Igt) :
15mA
Voltage - On State(Vtm) :
1.6V
Current - On State(It(RMS)) :
6A
Peak off - state voltage(Vdrm) :
600V
Gate Trigger Voltage (Vgt) :
1.5V
Operating Temperature :
-40℃~+150℃
Description :
6mA 15mA 600V TO-252 SCRs RoHS
Mfr. Part # :
SJ6006DS2RP
Model Number :
SJ6006DS2RP
Package :
TO-252
Description

Product Description

The SJxx06xx high temperature SCR series is designed for uni-directional switch applications. It is ideal for phase control, heating, motor speed controls, converters/rectifiers, and capacitive discharge ignitions. These SCRs feature a low gate current trigger level and a sensitive version with a significantly lower gate trigger current. Key advantages include voltage capability up to 600V, surge capability up to 100A, and a maximum junction temperature of 150C. The series is halogen-free and RoHS compliant.

Typical applications include capacitive discharge systems for motorcycle engine CDI, portable generator engine ignition, strobe lights, and nailers. They are also suitable for generic rectifiers, battery voltage regulators, converters, and controls for power tools, home appliances, and white goods.

Product Attributes

  • Brand: Littelfuse, Inc
  • Certifications: RoHS compliant, Halogen free, UL Recognized (V-0 flammability)
  • Terminal Finish: 100% Matte Tin-plated
  • Body Material: UL Recognized epoxy
  • Lead Material: Copper Alloy

Technical Specifications

SeriesVDRM/VRRM (V)IT(RMS) (A)IGT (mA)VGT (V)ITSM (A)tq (s)R(J-C) (C/W)
SJxx06xSx & SJxx06xx (Standard)400 or 60060.2 to 15~1.583 (50Hz) / 100 (60Hz)30-351.2
SJxx06xS2 (Sensitive)400 or 6006< 0.2~0.883 (50Hz) / 100 (60Hz)1301.2

2410301828_Littelfuse-SJ6006DS2RP_C17368096.pdf
