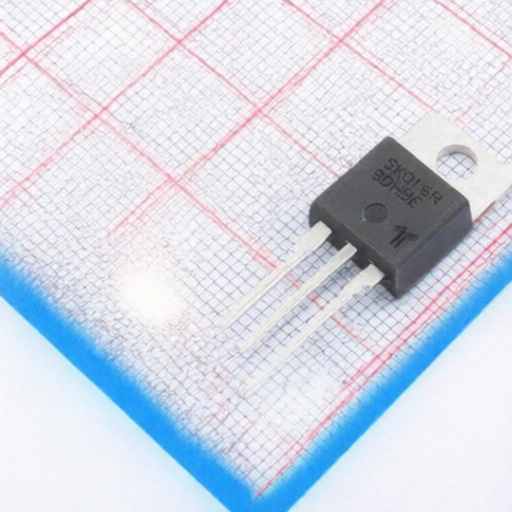

Littelfuse SK016RTP SCR Thyristor Featuring Copper Alloy Leads and Epoxy Body Material UL Recognized
Littelfuse SK016RTP SCR Thyristor Featuring Copper Alloy Leads and Epoxy Body Material UL Recognized
Specifications
Holding Current (Ih) :
40mA
Current - Gate Trigger(Igt) :
30mA
Voltage - On State(Vtm) :
1.6V
Average Gate Power Dissipation (PG(AV)) :
600mW
Current - On State(It(RMS)) :
16A
Peak off - state voltage(Vdrm) :
1kV
Current - Surge(Itsm@f) :
225A@60Hz
SCR Type :
1 SCR
Operating Temperature :
-40℃~125℃
Gate Trigger Voltage (Vgt) :
1.5V
Description :
SCR 1000V 16A Through Hole TO-220AB
Mfr. Part # :
SK016RTP
Model Number :
SK016RTP
Package :
TO-220AB
Description

Product Overview

The Teccor Sxx15x & Sxx16x Series are standard SCR thyristors designed for unidirectional switching in phase control applications. They offer excellent performance for heating and motor speed controls, triggered by low current and voltage. Key features include glass-passivated junctions, high voltage capability up to 1000V, and surge capability up to 225A. These SCRs are RoHS-compliant and suitable for various applications like capacitive discharge systems, power tools, and home appliances. Internally constructed isolated packages are available for ease of heat sinking.

Product Attributes

  • Brand: Teccor
  • Certifications: RoHS-compliant, UL Recognized (body material)
  • Material: Glass-passivated junctions, Copper Alloy lead material, UL Recognized epoxy body material

Technical Specifications

SymbolParameterTest ConditionsSxx15LSxx16R/Sxx16NUnit
Absolute Maximum Ratings
IT(RMS)RMS on-state currentTC = 90C15-A
IT(RMS)RMS on-state currentTC = 110C-16A
IT(AV)Average on-state currentTC = 90C9.5-A
IT(AV)Average on-state currentTC = 110C-10.0A
ITSMPeak non-repetitive surge currentsingle half cycle; f = 50Hz; TJ (initial) = 25C188188A
ITSMPeak non-repetitive surge currentsingle half cycle; f = 60Hz; TJ (initial) = 25C225225A
I2tI2t Value for fusingtp = 8.3 ms210210As
di/dtCritical rate of rise of on-state currentf = 60 Hz ; TJ = 125C125125A/s
IGMPeak gate currentTJ = 125C33A
PG(AV)Average gate power dissipationTJ = 125C0.60.6W
TstgStorage temperature range-40 to 150-40 to 150C
TJOperating junction temperature range-40 to 125-40 to 125C
Electrical Characteristics
VTMOn-state voltage15A Device IT = 30A; tp = 380 s MAX.1.6-V
VTMOn-state voltage16A Device IT = 32A; tp = 380 s MAX.-1.6V
IDRM / IRRMOff-state currentVDRM = VRRM TJ = 25C400 - 600V MAX. 10 A; 800 - 1000V MAX. 20 A400 - 600V MAX. 10 A; 800 - 1000V MAX. 20 AA
IDRM / IRRMOff-state currentVDRM = VRRM TJ = 100C400 - 600V 500 A; 800V 1000 A; 1000V 3000 A400 - 600V 500 A; 800V 1000 A; 1000V 3000 AA
IDRM / IRRMOff-state currentVDRM = VRRM TJ = 125C400 - 600V 1000 A; 800V 2000 A400 - 600V 1000 A; 800V 2000 AA
IGTGate trigger currentVD = 12V RL = 60 MAX. 30MAX. 30mA
VGTGate trigger voltageVD = 12V RL = 60 MAX. 1.5MAX. 1.5V
dv/dtCritical rate of rise of off-state voltageVD = VDRM; gate open; TJ = 100C400V MIN. 450 V/s; 600V MIN. 425 V/s; 800V MIN. 400 V/s; 1000V MIN. 200 V/s400V MIN. 450 V/s; 600V MIN. 425 V/s; 800V MIN. 400 V/s; 1000V MIN. 200 V/sV/s
dv/dtCritical rate of rise of off-state voltageVD = VDRM; gate open; TJ = 125C400V MIN. 350 V/s; 600V MIN. 325 V/s; 800V MIN. 300 V/s400V MIN. 350 V/s; 600V MIN. 325 V/s; 800V MIN. 300 V/sV/s
VGDGate non-trigger voltageVD = VDRM RL = 3.3 k TJ = 110CMIN. 0.2MIN. 0.2V
IHHolding currentIT = 200mA (initial)MAX. 40MAX. 40mA
tqTurn-off timeIT=2A; tp=50s; dv/dt=5V/s; di/dt=-30A/sMAX. 35MAX. 35s
tgtGate trigger timeIG = 2 x IGT PW = 15s IT = 12ATYP. 2TYP. 2s
Thermal Resistances
R(J-C)Junction to case (AC)2.51.1C/W
R(J-A)Junction to ambient5040C/W

2411200005_Littelfuse-SK016RTP_C7305301.pdf
