Littelfuse IXYS CMA50E1600HB Thyristor with 1600 Volt Max Blocking Voltage and 1.11 kAs Fusing Value
Littelfuse IXYS CMA50E1600HB Thyristor with 1600 Volt Max Blocking Voltage and 1.11 kAs Fusing Value
Specifications
Holding Current (Ih) :
100mA
Current - Gate Trigger(Igt) :
50mA
Voltage - On State(Vtm) :
1.3V
Current - On State(It(RMS)) :
79A
Peak off - state voltage(Vdrm) :
1.6kV
Current - Surge(Itsm@f) :
-
SCR Type :
1 SCR
Gate Trigger Voltage (Vgt) :
1.5V
Operating Temperature :
-40℃~+150℃@(Tj)
Description :
100mA 50mA 1.6kV 1 SCR TO-247 SCRs RoHS
Mfr. Part # :
CMA50E1600HB
Model Number :
CMA50E1600HB
Package :
TO-247
Description

Product Overview

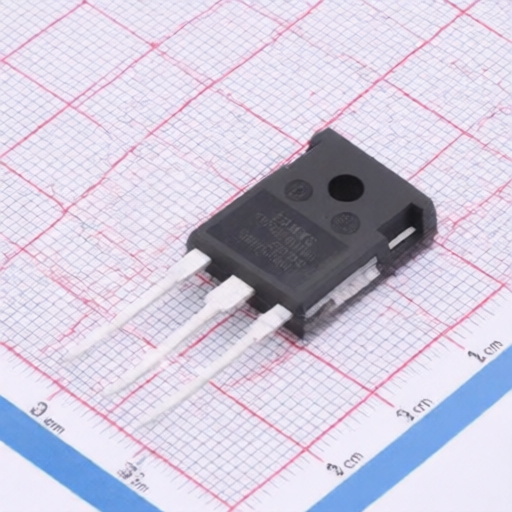

The CMA50E1600HB is a single thyristor designed for line frequency applications. It features a planar passivated chip for long-term stability and is suitable for various power control scenarios. The device comes in a standard TO-247 package and is RoHS compliant.

Product Attributes

  • Brand: IXYS
  • Part Number: CMA50E1600HB
  • Package: TO-247
  • Certifications: RoHS compliant, Epoxy meets UL 94V-0
  • Chip Technology: Planar passivated
  • Backside: Anode

Technical Specifications

SymbolDefinitionConditionsUnitmin.typ.max.
VRRM / VDRMmax. repetitive reverse/forward blocking voltageTVJ = 150CV1600
IT(RMS)RMS forward currentTAV 180 sineA50
ITAVaverage forward current180 sineA50
I2tvalue for fusingt = 10 ms; (50 Hz), sine TVJ = 45CkAs1.06
I2tvalue for fusingt = 8,3 ms; (60 Hz), sine TVJ = 45CkAs1.11
VTforward voltage dropIT = 50 A; TVJ = 25CV1.31
VT0threshold voltageTVJ = 25CV0.83
rTslope resistance for power loss calculation onlyTVJ = 25Cm9.6
Ptottotal power dissipationTC = 25CW310
PGMmax. gate power dissipationtp = 30 sW10
PGAVaverage gate power dissipationW0.5
CJjunction capacitanceVR = 0 V; f = 1 MHzpF26
ITSMmax. forward surge currentt = 10 ms; (50 Hz), sine TVJ = 45CkA1.52
ITSMmax. forward surge currentt = 8,3 ms; (60 Hz), sine TVJ = 45CkA1.48
tgdgate controlled delay timeIT = 50 A; G = 0.3s2
tqturn-off timeIT = 50 A; VD = VDRM; di/dt = 10 A/s; dv/dt = 20 V/ss200
RthJCthermal resistance junction to caseK/W1.11
VGTgate trigger voltageIT = 5 A; VD = 6 V; TVJ = 25CV0.81.5
IGTgate trigger currentIT = 5 A; VD = 6 V; TVJ = 25CmA1025
VGDgate non-trigger voltageVD = VDRM; TVJ = 150CV0.2
IGDgate non-trigger currentVD = VDRM; TVJ = 150CA5
ILlatching currentIT = 50 A; G = 0.3mA25
IHholding currentVD = 6 V; RGK = ; TVJ = 100CmA25
TVJvirtual junction temperatureC-40150
Tstgstorage temperatureC-40150

2410311221_Littelfuse-IXYS-CMA50E1600HB_C3614136.pdf
