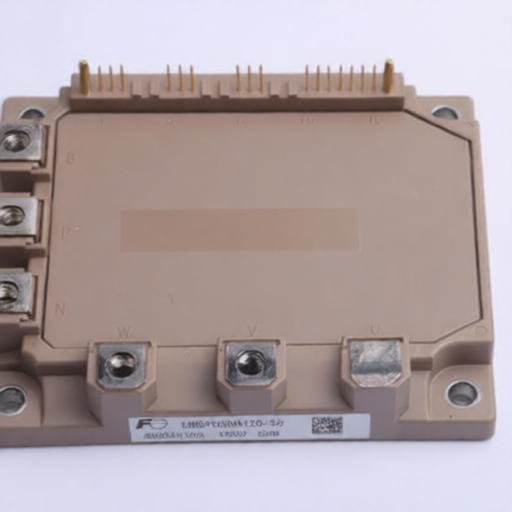

1200V 50A intelligent power module Fuji Electric 6MBP50RA120-55 IGBT IPM R series for inverter systems
1200V 50A intelligent power module Fuji Electric 6MBP50RA120-55 IGBT IPM R series for inverter systems
Specifications
Description :
Single IGBTs RoHS
Mfr. Part # :
6MBP50RA120-55
Model Number :
6MBP50RA120-55
Description

Product Overview

The IGBT-IPM R series 1200V / 50A is a 6-in-one-package intelligent power module designed for low power loss and soft switching applications. It features direct junction temperature detection for temperature protection, high performance and reliability with overheating protection, and a reduced number of parts in the built-in control circuit for enhanced reliability. Compatible with existing IPM-N series packages, this module is suitable for various inverter applications.

Product Attributes

  • Brand: Not specified
  • Origin: Not specified
  • Material: Not specified
  • Color: Not specified
  • Certifications: Not specified

Technical Specifications

ItemSymbolConditionMin.Typ.Max.Unit
Absolute Maximum RatingsVDC(at Tc=25C unless otherwise specified)0-1200V
VDC(surge)(at Tc=25C unless otherwise specified)0-1000V
VSC(at Tc=25C unless otherwise specified)200-800V
CES(at Tc=25C unless otherwise specified)0-1200V
Electrical Characteristics (Power Circuit)ICESVCE=1200V input terminal open--1.0mA
VCE(sat)Ic=50A--2.6V
VF-Ic=50A--3.0V
Electrical Characteristics (Control Circuit)IccpPower supply current of P-line side Pre-driver(one unit)3-1.70mA
ICCNPower supply current of N-line side three Pre-driver10-1.95mA
Vin(th)Input signal threshold voltage (on/off)1.00-1.70V
TCOHOver heating protection temperature level110-125C
Dynamic CharacteristicstonIC=50A, VDC=600V-0.3-s
toffIC=50A, VDC=600V-0.4-s
trrIF=50A, VDC=600V--3.6s
Thermal CharacteristicsRth(j-c)Junction to Case thermal resistance-0.35-C/W
Rth(j-c)Junction to Case thermal resistance-0.85-C/W
Rth(c-f)Case to fin thermal resistance with compound-0.05-C/W
General SpecificationsVDCDC bus voltage200-800V
VCCOperating power supply voltage range of Pre-driver13.51516.5V
fSWSwitching frequency of IPM1-20kHz

2410121257_Fuji-Electric-6MBP50RA120-55_C22470715.pdf
