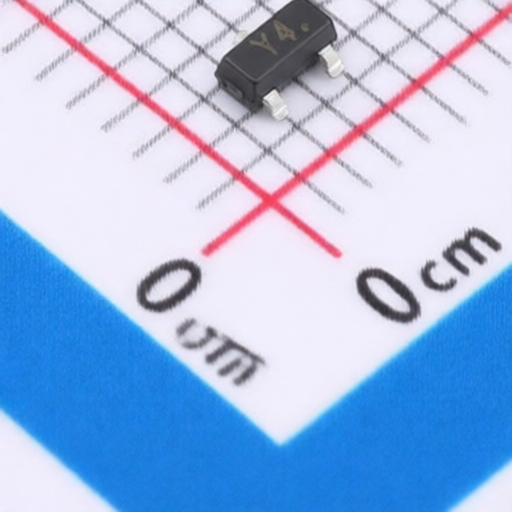

Small Signal Zener Diode YANGJIE BZX84B15Q Featuring Epoxy UL94 V0 Rating And AEC Q101 Qualified Design
Small Signal Zener Diode YANGJIE BZX84B15Q Featuring Epoxy UL94 V0 Rating And AEC Q101 Qualified Design
Specifications
Operating Junction Temperature Range :
-55℃~+150℃
Reverse Leakage Current (Ir) :
100nA@10.5V
Pd - Power Dissipation :
350mW
Impedance(Zzt) :
30Ω
Diode Configuration :
1 Independent
Zener Voltage(Range) :
14.7V~15.3V
Zener Voltage(Nom) :
15V
Description :
Zener Diode 15V 350mW Surface Mount SOT-23
Mfr. Part # :
BZX84B15Q
Model Number :
BZX84B15Q
Package :
SOT-23
Description

Small Signal Zener Diodes

The BZX84B3V6Q thru BZX84B36Q series are small signal Zener diodes designed for general regulation functions. They feature epoxy that meets UL-94 V-0 flammability rating and is halogen-free, with a Moisture Sensitivity Level of 1. The diodes offer Zener voltages ranging from 3.6V to 36V with an approximate tolerance of 2%. Parts with the suffix "Q" are AEC-Q101 qualified.

Product Attributes

  • Brand: Yangzhou Yangjie Electronic Technology Co., Ltd.
  • Origin: China (implied by company location)
  • Material: Epoxy (UL-94 V-0 flammability rating, halogen-free)
  • Color: Black (body color)
  • Certifications: UL-94 V-0, AEC-Q101 (for "Q" suffix), RoHS Compliant

Technical Specifications

Part NumberDevice MarkingVz at Izt (V)Izt (mA)Zzt () max.Zzk () max.IR (A)@VRVR (V)VF (V) @ IF=10mAdcRJA (C/W)Power Dissipation (mW)Storage Temp (C)Junction Temp (C)
BZX84B3V6QZ153.65901.060000.9357350-55~+150-55~+150
BZX84B3V9QZ163.95901.060000.9357350-55~+150-55~+150
BZX84B4V3QZ174.35901.060000.9357350-55~+150-55~+150
BZX84B4V7QZ14.75801.05000.20.9357350-55~+150-55~+150
BZX84B5V1QZ25.15601.04801.20.9357350-55~+150-55~+150
BZX84B5V6QZ35.65401.04002.50.9357350-55~+150-55~+150
BZX84B6V2QZ46.25101.01503.70.9357350-55~+150-55~+150
BZX84B6V8QZ56.85151.0804.50.9357350-55~+150-55~+150
BZX84B7V5QZ67.55151.0805.30.9357350-55~+150-55~+150
BZX84B8V2QZ78.25151.0806.20.9357350-55~+150-55~+150
BZX84B9V1QZ89.15151.01007.00.9357350-55~+150-55~+150
BZX84B10QZ9105201.01508.00.9357350-55~+150-55~+150
BZX84B11QY1.115201.01509.00.9357350-55~+150-55~+150
BZX84B12QY2.125251.015010.00.9357350-55~+150-55~+150
BZX84B13QY3135301.017011.00.9357350-55~+150-55~+150
BZX84B15QY4155301.020013.00.9357350-55~+150-55~+150
BZX84B16QY5165401.020014.00.9357350-55~+150-55~+150
BZX84B18QY6.185451.022516.00.9357350-55~+150-55~+150
BZX84B20QY7205551.022518.00.9357350-55~+150-55~+150
BZX84B22QY8225551.025020.00.9357350-55~+150-55~+150
BZX84B24QY9245701.025022.00.9357350-55~+150-55~+150
BZX84B27QY10272800.530025.30.9357350-55~+150-55~+150
BZX84B30QY11.302800.530029.40.9357350-55~+150-55~+150
BZX84B33QY12332800.532533.40.9357350-55~+150-55~+150
BZX84B36QY13362900.535037.40.9357350-55~+150-55~+150

2411192311_YANGJIE-BZX84B15Q_C20600130.pdf
