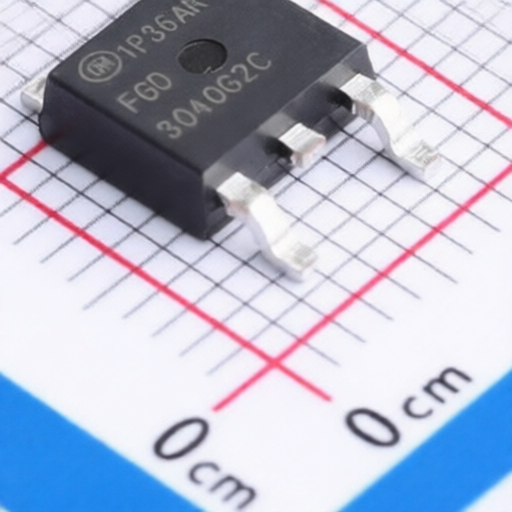

Pb-Free automotive ignition IGBT onsemi FGD3040G2-F085C high current ignition coil driver transistor
Pb-Free automotive ignition IGBT onsemi FGD3040G2-F085C high current ignition coil driver transistor
Specifications
Td(off) :
4.8us
Pd - Power Dissipation :
150W
Td(on) :
900ns
Collector-Emitter Breakdown Voltage (Vces) :
400V
Input Capacitance(Cies) :
-
IGBT Type :
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic) :
1.25V@4V,6A
Gate Charge(Qg) :
21nC
Operating Temperature :
-55℃~+175℃@(Tj)
Turn-On Energy (Eon) :
-
Description :
IGBT 400V 41A 150W Surface Mount DPAK
Mfr. Part # :
FGD3040G2-F085C
Model Number :
FGD3040G2-F085C
Package :
DPAK
Description

Product Overview

The EcoSPARK 2 Ignition IGBT is a high-performance N-Channel Ignition IGBT designed for automotive ignition coil driver circuits. It offers a high SCIS Energy rating of 300 mJ at 25C, logic-level gate drive, and is AEC-Q101 Qualified and PPAP Capable. This device is Pb-Free and RoHS Compliant, making it suitable for high current ignition systems and coil-on-plug applications.

Product Attributes

  • Brand: EcoSPARK 2
  • Origin: Semiconductor Components Industries, LLC (onsemi)
  • Certifications: AEC-Q101 Qualified, PPAP Capable
  • Material: Pb-Free, RoHS Compliant

Technical Specifications

Part NumberBVCER (V)ESCIS25 (mJ)IC25 (A)IC110 (A)PD (W)TJ, TSTG (C)R JC (C/W)VCE(SAT) @ 6A, 4V (V)QG(ON) @ 10A, 5V (nC)VGE(TH) @ 1mA (V)td(ON)R @ 0.9s (s)trR @ 1.9s (s)td(OFF)L @ 4.8s (s)tfL @ 2.0s (s)
FGD3040G2F085C4003004125.615055 to +17511.15 - 1.25211.3 - 2.20.91.94.82.0
FGB3040G2F085C4003004125.615055 to +17511.15 - 1.25211.3 - 2.20.91.94.82.0

2410010231_onsemi-FGD3040G2-F085C_C903654.pdf
