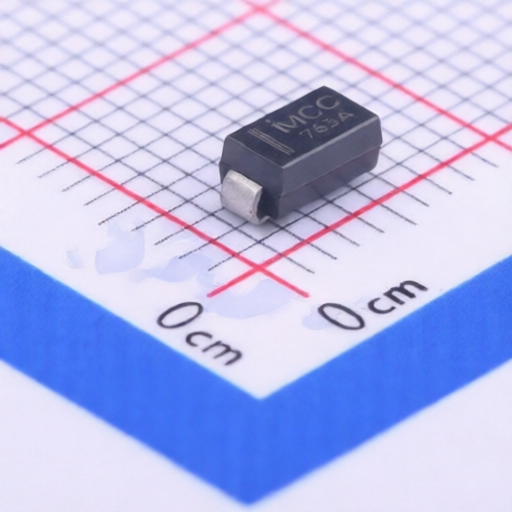

Low Regulation Factor 1 Watt Zener Diode MCC SMAJ4763A-TP with UL 94 V0 Epoxy and Halogen Free Option
Low Regulation Factor 1 Watt Zener Diode MCC SMAJ4763A-TP with UL 94 V0 Epoxy and Halogen Free Option
Specifications
Operating Junction Temperature Range :
-65℃~+150℃
Impedance(Zzt) :
250Ω
Diode Configuration :
Independent
Pd - Power Dissipation :
1W
Zener Voltage(Nom) :
91V
Impedance(Zzk) :
3kΩ
Description :
Zener Diode Independent 91V 1W Surface Mount SMA(DO-214AC)
Mfr. Part # :
SMAJ4763A-TP
Model Number :
SMAJ4763A-TP
Package :
SMA(DO-214AC)
Description

Product Overview

The SMAJ4728A thru SMAJ4764A series features 1 Watt Zener Diodes with voltage ratings from 3.3 to 100 Volts. These diodes are designed for surface mount applications and offer low Zener impedance and low regulation factor. They are available in a DO-214AC (SMA) package and are RoHS compliant. Key features include a 5% tolerance on Zener voltage, epoxy meeting UL 94 V-0 flammability rating, and Moisture Sensitivity Level 1. Halogen-free options are available upon request.

Product Attributes

  • Brand: Micro Commercial Components (MCC)
  • Package Type: DO-214AC (SMA)
  • Certifications: RoHS Compliant (Note 1), UL 94 V-0 flammability rating
  • Moisture Sensitivity Level: 1

Technical Specifications

Part Number Series Zener Voltage (VZ) (Volts) Test Current (IZT) (mA) Max. Dynamic Impedance (ZZT) @ IZT (Ohms) Max. Reverse Current (IR) @ VR (A) Knee Impedance (ZZK) (Ohms) Knee Current (IZK) (mA)
SMAJ4728A 3.3 76 10 100 @ 1V 400 1
SMAJ4729A 3.6 69 10 100 @ 1V 400 1
SMAJ4730A 3.9 64 9 50 @ 1V 400 1
SMAJ4731A 4.3 58 9 10 @ 1V 400 1
SMAJ4732A 4.7 53 8 10 @ 1V 500 1
SMAJ4733A 5.1 49 7 10 @ 1V 550 1
SMAJ4734A 5.6 45 5 10 @ 2V 600 1
SMAJ4735A 6.2 41 2 10 @ 3V 700 1
SMAJ4736A 6.8 37 3.5 10 @ 4V 700 1
SMAJ4737A 7.5 34 4 10 @ 5V 700 0.5
SMAJ4738A 8.2 31 4.5 10 @ 6V 700 0.5
SMAJ4739A 9.1 28 5 10 @ 7V 700 0.5
SMAJ4740A 10 25 7 10 @ 7.6V 700 0.25
SMAJ4741A 11 23 8 5 @ 8.4V 700 0.25
SMAJ4742A 12 21 9 5 @ 9.1V 700 0.25
SMAJ4743A 13 19 10 5 @ 9.9V 700 0.25
SMAJ4744A 15 17 14 5 @ 11.4V 700 0.25
SMAJ4745A 16 15.5 16 5 @ 12.2V 700 0.25
SMAJ4746A 18 14 20 5 @ 13.7V 750 0.25
SMAJ4747A 20 12.5 22 5 @ 15.2V 750 0.25
SMAJ4748A 22 11.5 23 5 @ 16.7V 750 0.25
SMAJ4749A 24 10.5 25 5 @ 18.2V 750 0.25
SMAJ4750A 27 9.5 35 5 @ 20.6V 750 0.25
SMAJ4751A 30 8.5 40 5 @ 22.8V 1000 0.25
SMAJ4752A 33 7.5 45 5 @ 25.1V 1000 0.25
SMAJ4753A 36 7 50 5 @ 27.4V 1000 0.25
SMAJ4754A 39 6.5 60 5 @ 29.7V 1000 0.25
SMAJ4755A 43 6 70 5 @ 32.7V 1500 0.25
SMAJ4756A 47 5.5 80 5 @ 35.8V 1500 0.25
SMAJ4757A 51 5 95 5 @ 38.8V 1500 0.25
SMAJ4758A 56 4.5 110 5 @ 42.6V 2000 0.25
SMAJ4759A 62 4 125 5 @ 47.1V 2000 0.25
SMAJ4760A 68 3.7 150 5 @ 51.7V 2000 0.25
SMAJ4761A 75 3.3 175 5 @ 56V 2000 0.25
SMAJ4762A 82 3 200 5 @ 62.2V 3000 0.25
SMAJ4763A 91 2.8 250 5 @ 69.2V 3000 0.25
SMAJ4764A 100 2.5 350 5 @ 76V 3000 0.25
Parameter Test Conditions Symbol Value Unit
Power Dissipation Tamb≤50 Pd 1 W
Operating Junction Temperature Tj -65~+150
Storage Temperature Tstg -65~+150
Max. Forward Voltage Drop IF=100mA Vf 1.2 V
Thermal Resistance (Junction to Ambient) Note: 2 RΘja 100 K/W
Thermal Resistance (Junction to Lead) Note: 2 RΘjL 75 K/W

Dimensions (Inches/MM):

Dimension Min (In) Max (In) Min (MM) Max (MM) Note
A .079 .096 2.00 2.44
B .050 .064 1.27 1.63
C .002 .008 .05 .20
D --- .02 --- .51
E .030 .060 .76 1.52
F .065 .091 1.65 2.32
G .189 .220 4.80 5.59
H .157 .181 4.00 4.60
J .090 .115 2.25 2.92

Ordering Information:

Device Packing: Part Number-TP Tape&Reel: 7.5Kpcs/Reel

Note: Adding "-HF" suffix for halogen free, e.g. Part Number-TP-HF
