Manual Feeding Sealing Packing Machine Bag OEM Chain Bucket Type
Manual Feeding Sealing Packing Machine Bag OEM Chain Bucket Type
Manual Feeding Sealing Packing Machine Bag OEM Chain Bucket Type
Manual Feeding Sealing Packing Machine Bag OEM Chain Bucket Type
Manual Feeding Sealing Packing Machine Bag OEM Chain Bucket Type
Manual Feeding Sealing Packing Machine Bag OEM Chain Bucket Type
Manual Feeding Sealing Packing Machine Bag OEM Chain Bucket Type
Manual Feeding Sealing Packing Machine Bag OEM Chain Bucket Type
Specifications
Brand Name :
Galaxybridge
Model Number :
GL-C802Z
Certification :
CE/EMC
Place of Origin :
Guangdong, China
MOQ :
1Sets
Price :
Negotiable
Supply Ability :
100 Set/Sets per Month
Delivery Time :
To be negotiated
Packaging Details :
Packed in wooden cases
Packaging Type :
Bags, Three edge-sealing
Weight (KG) :
400
Dimension(L*W*H) :

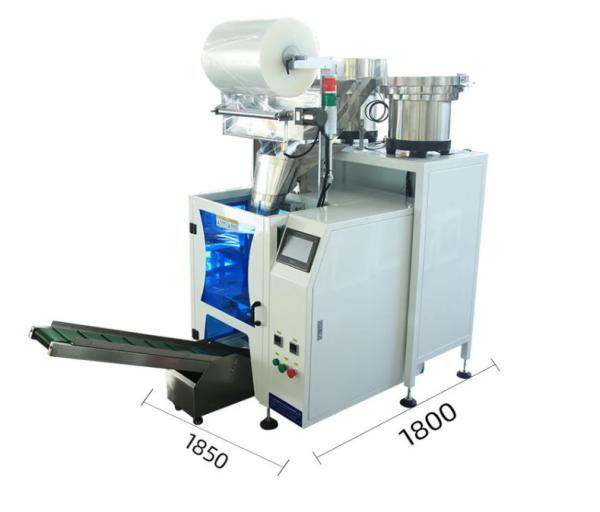

L1800*W1850*H1900(mm)
Application :
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco
Driven Type :
Electric
Voltage :
220V
Description

Vertical Counting Manual Feeding Chain Bucket Type Hardware Bag Sealing Packing Machine

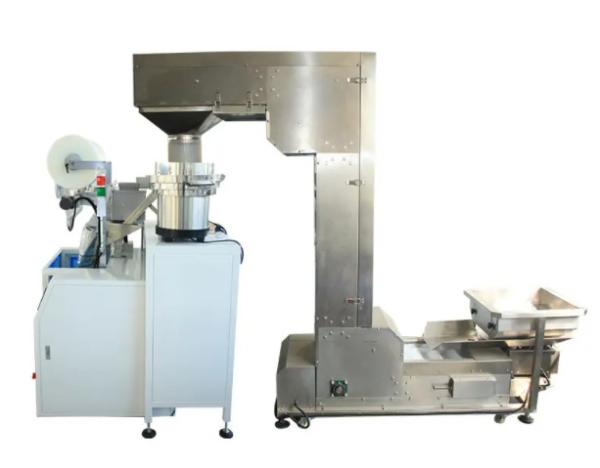

XK-C802Z(Weighing complement number packing machine + hoist)

1)Technical characteristics
1. The vibration plate tailored for the packaging sample can be weighed and packed by weighing method with the accuracy of ±1g
2.Vibration plate automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count.
3.the vibration plate is short of material after feeding conveyor belt automatic supply
4. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.
5.The length of packaging bag is adjustable, the total number of packaging is adjustable, and the automatic alarm is given when the set number is reached.
6. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check and reweigh, labeling machine, hoist and other expansion equipment.
2)Scope of application and functional features

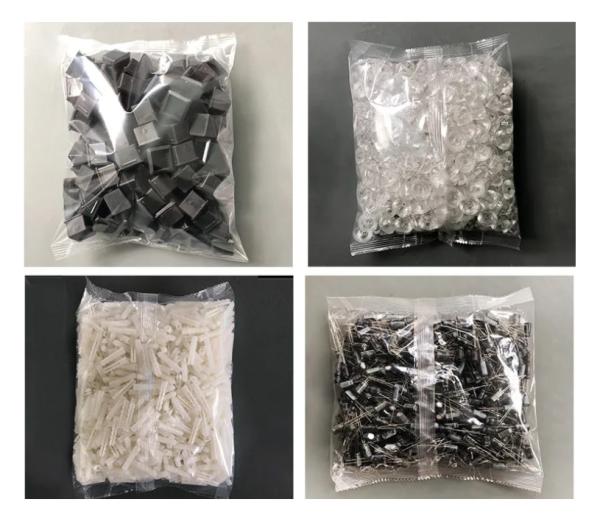

1. This product is suitable for the quantity required more product packaging, all kinds of particles, tablets, hardware items such as packaging, such as screw, nut, number of packages require more, cases of 500100 a bag, this product USES weighing complement way measurement, double disk thick, diligence, weighing, first complement way after packing.
2. It is suitable for "OPP/CPP/ composite membrane" as sealing material.

Product specifications

Equipment model GL-B862Z
Packaging Material Plastic, Paper, Metal, Glass, Wood, CPP
Bag size length Within 300 mm
Warranty 1 years
Type Multi-Function Packaging Machine
Voltage power 220V/50HZ P≈0.6KW
Air supply 0.4-0.8MPA
Bag mouth shape Pattern knife tooth shape
Dimensions L1800*W1850*H1900(mm)
Weight about 400KG

Manual Feeding Sealing Packing Machine Bag OEM Chain Bucket TypeManual Feeding Sealing Packing Machine Bag OEM Chain Bucket TypeManual Feeding Sealing Packing Machine Bag OEM Chain Bucket TypeManual Feeding Sealing Packing Machine Bag OEM Chain Bucket Type
