Electronic Switch Auxiliary Packaging Equipment Plastic Parts Toys Packing Machine
Electronic Switch Auxiliary Packaging Equipment Plastic Parts Toys Packing Machine
Electronic Switch Auxiliary Packaging Equipment Plastic Parts Toys Packing Machine
Electronic Switch Auxiliary Packaging Equipment Plastic Parts Toys Packing Machine
Electronic Switch Auxiliary Packaging Equipment Plastic Parts Toys Packing Machine
Electronic Switch Auxiliary Packaging Equipment Plastic Parts Toys Packing Machine
Specifications
Brand Name :
Galaxybridge
Model Number :
GL-B860K
Certification :
CE/EMC
Place of Origin :
Guangdong, China
MOQ :
1Sets
Price :
Negotiable
Supply Ability :
100 Set/Sets per Month
Delivery Time :
To be negotiated
Packaging Details :
Packed in wooden cases
Packaging Type :
Bags, Film, Pouch
Weight (KG) :
150
Dimension(L*W*H) :
length 2500mm/width 700mm/height 1550mm
Application :
Commodity, Machinery & Hardware
Driven Type :
Electric
Voltage :
220V
Description

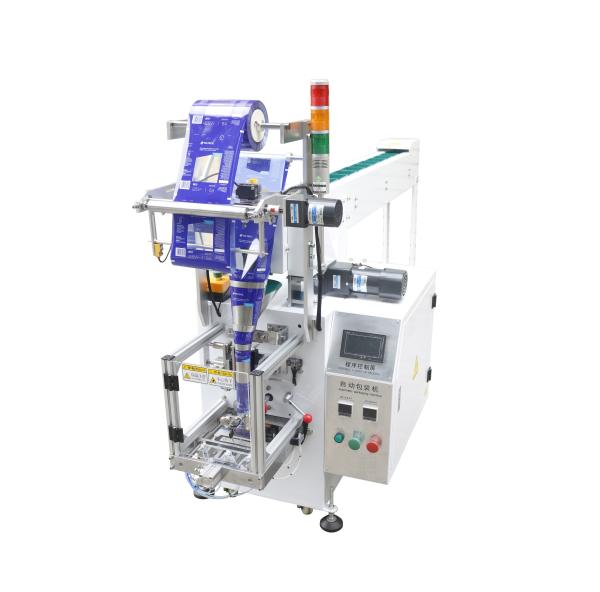

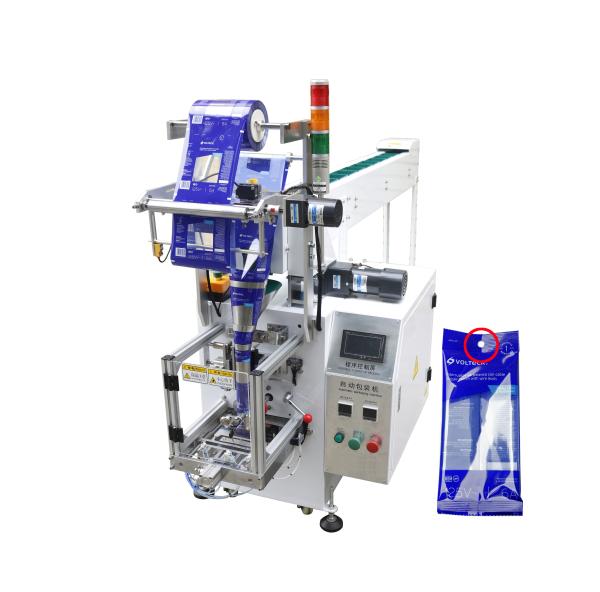

GL-B860K (Hanging hole type packaging machine)
1) Technical features
1. Automatic filling, automatic packaging, sealing function, output counting.
2. Adopting an intelligent temperature control system, the temperature control is stable and the temperature can be adjusted as needed.
3. High versatility, any material can be packed manually, and the bag length is adjustable.
4. The length of the packaging bag is adjustable, and the total number of packages is adjustable. It will automatically alarm when the set number of times is reached.
5. A manual feeding port sensor can be installed to ensure packaging after each feeding to avoid empty bags.
5. After packaging, the bag shape will be uniform, regular, beautiful, and strong. It can also be equipped with coding machines, checkweighers, labeling machines, elevators and other expansion equipment.

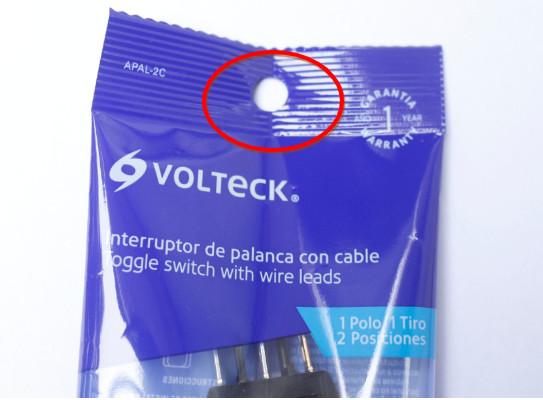

6. The bag can be punched.

2) Scope of application and functional characteristics
1. There are parts processed by spray painting or electroplating on the surface. Products with extremely high surface requirements require hanging holes after bag molding. For example, toys, electroplated plastic parts, spray painted parts, electronic original switches and other products require manual labor. Put materials in to prevent the vibrating plate from scratching the surface of the product.
2. If there are no special requirements on the product surface, automatic counting packaging with vibrating plates can also be added.
3. Suitable for "OPP/CPP/composite membrane" as sealing material.

Product specifications

Equipment model GL-B860K
Counting method Manually placed/equipped with a vibrating disc
Bag size Width 40-140, length 250 or less (regular 140)
Packaging speed 1-60 bags/minute
Sealing shape Stripe, back seal/three sided seal (usually back seal)
Voltage power 220V/50HZ P≈0.6KW
Air supply 0.4-0.8MPA
Bag mouth shape patterned knife tooth shape
External dimensions length 2500mm/width 700mm/height 1550mm
Weight Approximately 150KG
