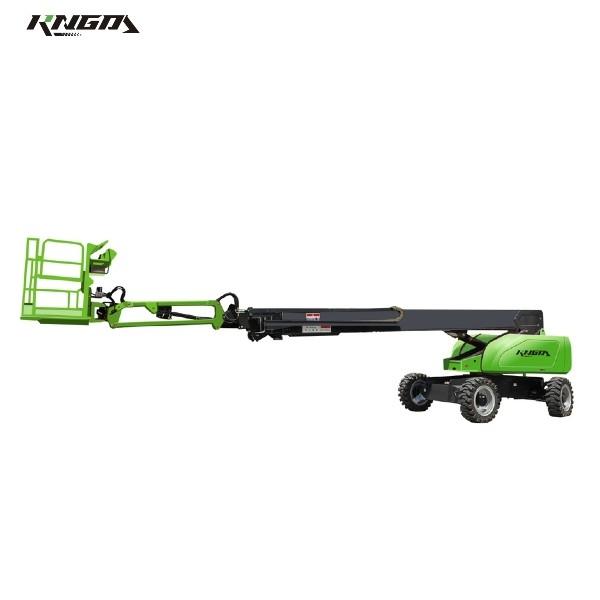

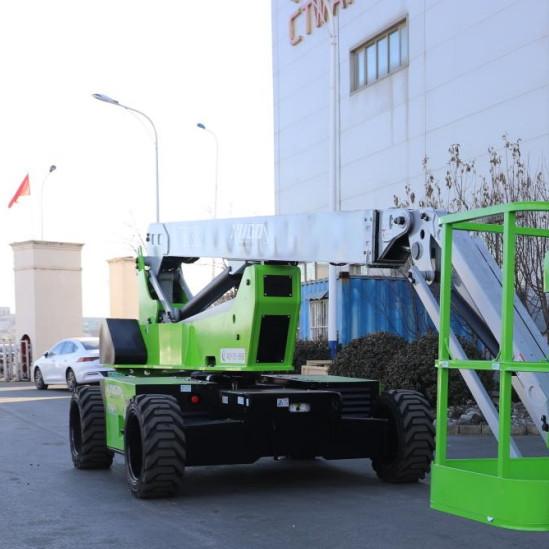

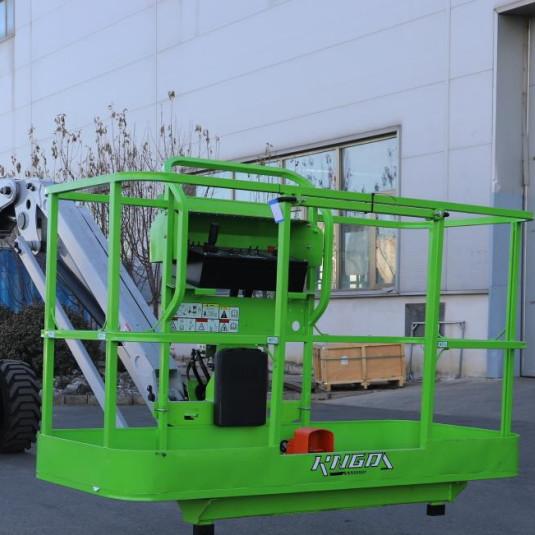

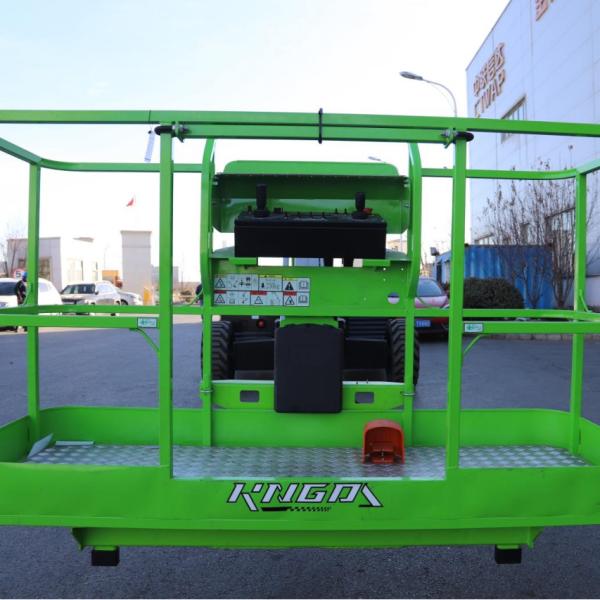

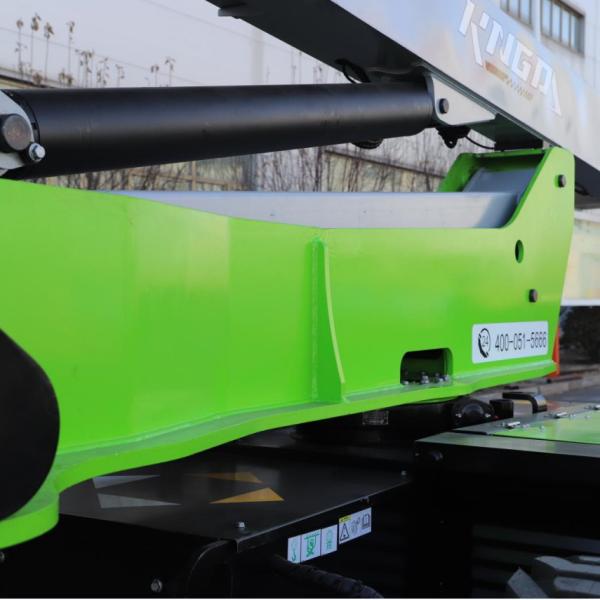

Weight 18500Kg Diesel Telescopic Boom Lift Working Height 34m
Weight 18500Kg Diesel Telescopic Boom Lift Working Height 34m
Weight 18500Kg Diesel Telescopic Boom Lift Working Height 34m
Weight 18500Kg Diesel Telescopic Boom Lift Working Height 34m
Weight 18500Kg Diesel Telescopic Boom Lift Working Height 34m
Weight 18500Kg Diesel Telescopic Boom Lift Working Height 34m
Weight 18500Kg Diesel Telescopic Boom Lift Working Height 34m
Weight 18500Kg Diesel Telescopic Boom Lift Working Height 34m
Weight 18500Kg Diesel Telescopic Boom Lift Working Height 34m
Weight 18500Kg Diesel Telescopic Boom Lift Working Height 34m
Specifications
Brand Name :
KINGDA
Model Number :
TB32J
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
（TBD）USD
Payment Terms :
T/T
Supply Ability :
NO LIMITED
Delivery Time :
60 Days
Packaging Details :
Export packing
Gradeability :
Up to 45%
Platform Height :
18500 kg
Description

Diesel Telescopic Boom Lift Working 34m Weight 18500Kg

Product Features


1. The Diesel Telescopic Boom Lift is a powerful machine that can reach high heights.

2. It has a telescopic arm that can extend and retract, allowing it to reach places that are difficult to access.

3. This lift is operated using diesel fuel, making it suitable for outdoor use.

4. It has a sturdy construction and stability features to ensure safety while working at height.

5. The Diesel Telescopic Boom Lift is known for its versatility and durability, making it a reliable choice for various construction and maintenance tasks.

Weight 18500Kg Diesel Telescopic Boom Lift Working Height 34m

Model TB32J
Size Metric
Maximum Working Height 34m
Maximum Platform Height 32m
Maximum Horizontal Outreach 20.6m
Platform Size 2.44X0.91m
Length-Stowed 12.6m
Width-Stowed 2.58m
Height-Stowed 2.95m
Wheelbase 3m
Ground Clearance(Center) 0.43m
Performance
Maximum Lifting Capacity 480Kg
Maximum Platform Occupancy 2 ppl
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 5km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope 5°
Turning Radius (inside) 2.57m
Turning Radius (outside) 6.11m
Drive &Steer Mode 4X4X2
Tyre Size 385/65-22.5
Power
Power Supply 55Kw@2400rpm~2600rpm
Fuel Tank Capacity 151L
Hydraulic Oil Tank Capacity 160L
Control Voltage 12V
Weight
Machine Weight 18500Kg
Standard Compliance EN280 GB25849

※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
