50ft 32' 26 Ft Rough Terrain Scissor Lift Scissor Raise Max Working 15m Size 84X30cm
50ft 32' 26 Ft Rough Terrain Scissor Lift Scissor Raise Max Working 15m Size 84X30cm
50ft 32' 26 Ft Rough Terrain Scissor Lift Scissor Raise Max Working 15m Size 84X30cm
50ft 32' 26 Ft Rough Terrain Scissor Lift Scissor Raise Max Working 15m Size 84X30cm
50ft 32' 26 Ft Rough Terrain Scissor Lift Scissor Raise Max Working 15m Size 84X30cm
50ft 32' 26 Ft Rough Terrain Scissor Lift Scissor Raise Max Working 15m Size 84X30cm
Specifications
Brand Name :
KINGDA
Model Number :
RS1323DS
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
（TBD）USD
Payment Terms :
T/T
Supply Ability :
NO LIMITED
Delivery Time :
60 Days
Packaging Details :
Export packing
Capacity :
680KG
Fuel Tank Capacity :
110L
Max Gradeability :
50%
Power Source :
Diesel
Description

Rough Terrain Scissor Lift Max Working15m Tyre Size 84X30cm


Product Features

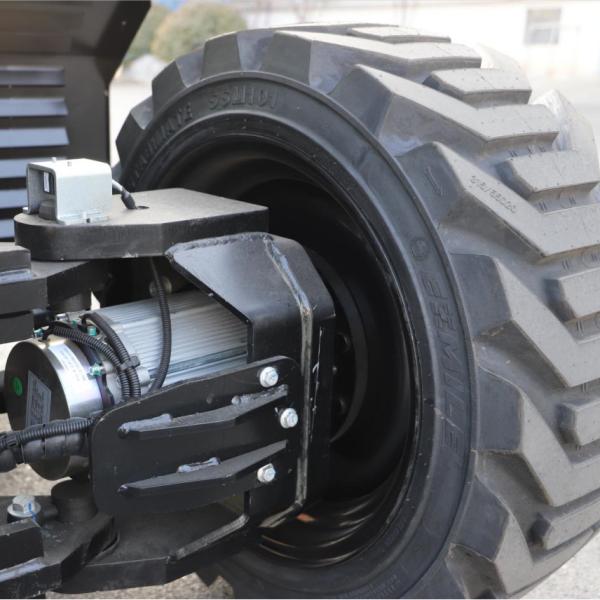

●Equipped with large, heavy-duty wheels and a powerful four-wheel drive system, this scissor lift can traverse challenging terrains.
●The scissor lift allows operators to transport heavy equipment, tools, and materials to elevated work areas, reducing the need for manual lifting and improving overall productivity.
●This scissor lift is equipped with multiple safety features, including emergency stop buttons, safety rails, and non-slip surfaces, ensuring the well-being of operators and minimizing the risk of accidents.
●The scissor lift offers smooth and precise controls, allowing operators to manoeuvre the lift easily and position it accurately, enhancing efficiency and productivity during tasks.
●The scissor lift is designed to be environmentally friendly, with low noise emissions and reduced fuel consumption, making it a sustainable choice for outdoor projects.
●Overall, the rough terrain scissor lift with a 15.0m working height combines durability, adaptability, safety, and operator comfort, making it an excellent choice for a wide range of outdoor construction, maintenance, and industrial projects.

50ft 32' 26 Ft Rough Terrain Scissor Lift Scissor Raise Max Working 15m Size 84X30cm

Model RS1323DS
Size Metric
Maximum Working Height 15.0m
Maximum Platform Height 13.0m
Platform Length 3.98m
Platform Extended Length 6.57m
Platform Width 1.83m
Height-Stowed 2.98m
Platform Extension(front/rear 1.52m/1.22m
Width 2.27m
Length(w/.&w/o.outtrigger) 4.88m/3.98m
Wheelbase 2.86m
Ground Clearance 0.36m
Performance
Platform Capacity 680Kg
Capacity on Extension 230Kg
Drive Speed 5.6km/h
Traceability 50%
Raise/Lower Speed 45/39sec
Turning Radius (inside &outside) 2.16m/5.33m
Tyre Size 84X30cm
Power
Power Supply DieselEngine
Fuel Tank Capacity 110L
Hydraulic Oil Tank Capacity 110L
Weight
WeightMachine 6329Kg

Standard Configuration
Proportional control Emergency descent system Smart charger
Bidirectional extension platform Stopwatch Action buzzer
Folding fence platform Safety maintenance-bracing piece Emergency stop system
Platform self-locking door 4X2 Double frontal wheel electric drive Automatic braking system
Charging protection system Maintenance Free battery Horn
Fault diagnosis system Standard transport forklift holes Stroboscope light
Oil tube explosion-proof system Solid traceless tyres Tilt protection system

※ The picture and technical information may vary by the update policy, the changes will be without prior notice.

Company Profile

JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD. was officially founded in Tianjin City, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD. is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
