Specifications
Brand Name :
KINGDA
Model Number :
TB27J
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
（TBD）USD
Payment Terms :
T/T
Supply Ability :
NO LIMITED
Delivery Time :
60 Days
Packaging Details :
Export packing
Power Source :
Diesel engine
Rotation :
360 degrees continuous
Description

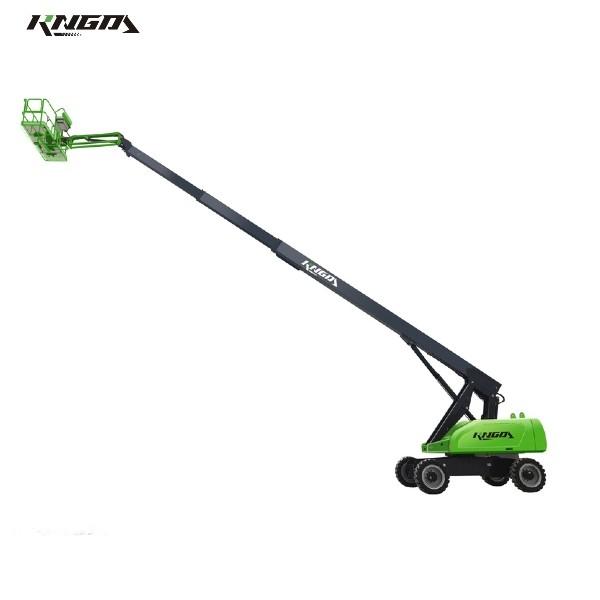

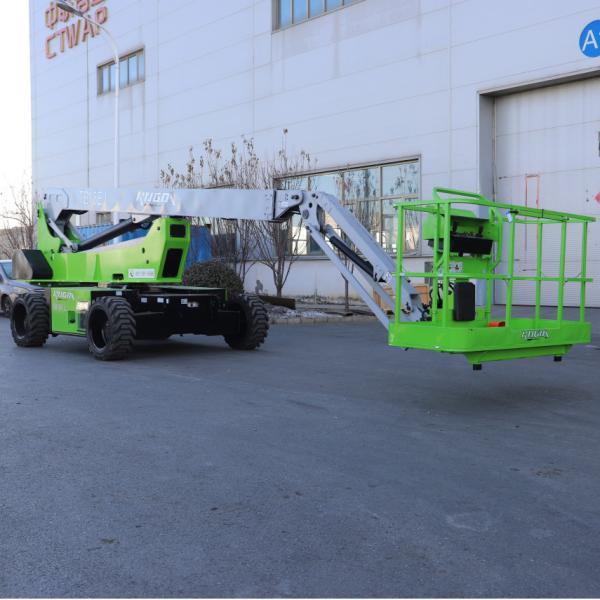

Diesel Telescopic Boom Lift Working Height 28.7m

Product Features


●Small Size Diesel Telescopic Boom Lift
●Compact Size: The boom lift is small in size, allowing easy manoeuvrability and access to tight spaces, making it ideal for indoor and outdoor use.
●Telescopic Boom: It is equipped with a telescopic boom that can extend vertically and horizontally, reaching high elevations and providing a maximum working height.
●Multiple Applications: The lift is suitable for various tasks such as maintenance, installation, and construction in manufacturing, warehousing, and facility management.
●Easy Transportation: The lift's compact design and lightweight construction enable easy transportation to different job sites.

28.7m Working Height Diesel Telescopic Boom Lift Hydraulic

Model TB27J
Size Metric
Maximum Working Height 28.7m
Maximum Platform Height 26.7m
Maximum Horizontal Outreach 18.5m

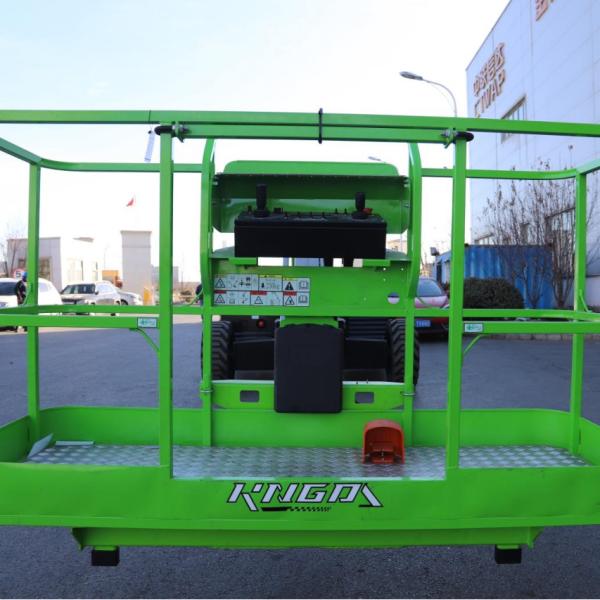

Platform Size 2.44X0.91m
Length-Stowed 10.76m
Width-Stowed 2.5m
Height-Stowed 2.83m
Wheelbase 3m
Ground Clearance(Center) 0.41m
Performance
Maximum Lifting Capacity 480Kg
Maximum Platform Occupancy 2 ppl
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 5km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope 5°
Turning Radius (inside) 2.76m
Turning Radius (outside) 6.09m
Drive &Steer Mode 4X4X2

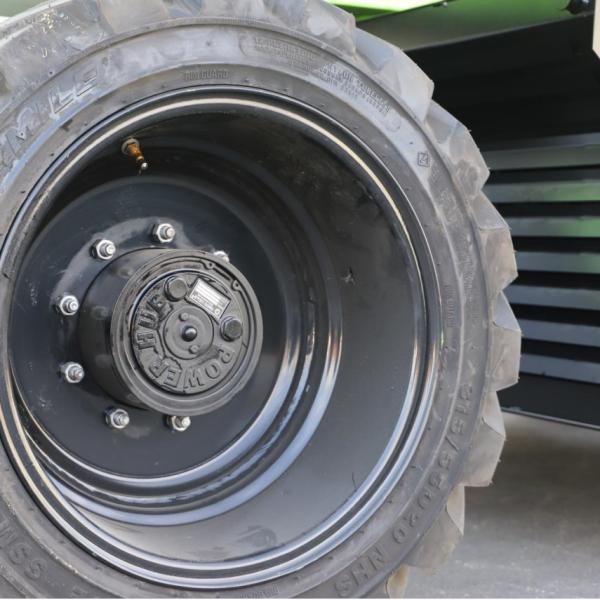

Tyre Size 36X14-20
Power
Power Supply 36Kw@2400rpm~2600rpm
Fuel Tank Capacity 110L
Hydraulic Oil Tank Capacity 110L
Control Voltage 12V
Weight
Machine Weight 12600Kg
Standard Compliance EN280 GB25849

※ The picture and technical information may vary by the update policy, the changes will be without prior notice.

Company Profile

JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
