Guide Bushes SOB Solid Lube Bearings Universal Straight Type Low Resistance
Guide Bushes SOB Solid Lube Bearings Universal Straight Type Low Resistance
Guide Bushes SOB Solid Lube Bearings Universal Straight Type Low Resistance
Guide Bushes SOB Solid Lube Bearings Universal Straight Type Low Resistance
Specifications
Brand Name :
INWAY
Model Number :
SOB
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 tons/month
Delivery Time :
5 work days or based on quantity
Packaging Details :
Carton+pallet
Material :
Bronze
Type :
Sleeve
Size :
Standard Size,Customizable
Product name :
brass bush,Sleeve Bearing
Features :
Low Resistance,Long Operating Life,Maintenance,High precision
Lubricating :
Oilless
Description

Guide Bushes SOB Solid Lube Bearings Universal Straight Type Low Resistance

Introduction

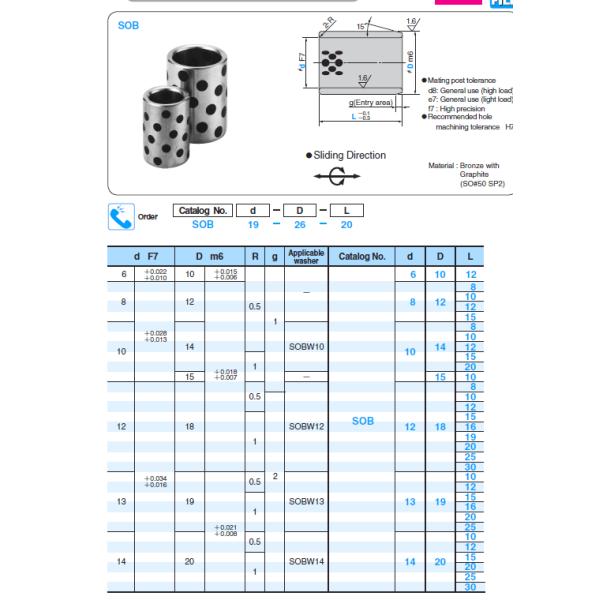

Guide sliding bearing bushing - SOB bronze straight type guide bush

  • Introduction of material

1. The solid casting bronze material is ideally suited for highly demanding applications in tough environments. We offer a standard assortment of plain sleeve bushings, flanged bushings and sliding plates in accordance with ISO 4379 and DIN1850.
2. The solid bronze body can be drilled holes and filled solid graphite lubricant, in this way it can be used in oilless environments.

3. Also the solid bronze body can be machined oil grooves and holes, it can get better lubricating after filled with grease.

  • Features and advantages

1. Insensitive to dirty environment
2. Resistant to shock loads and vibrations at slow speeds
3. Enable operation with a poor shaft surface finish
4. Good resistance to corrosive conditions

  • Material

Solid Bronze bushings and plates are made completely of tin bronze, CuSn10P, which has very good machine ability. All surfaces of the solid bronze bushings are machined.
Solid iron bushings and plates are made in same way of bronze material, but it is much lower costs if you are not in high performance requirements.

  • Examples of applications

1. Construction machinery
2. Transport equipment
3. Pulp and papermaking machinery
4. Off-shore equipment

  • Specifications:

Material Base Bronze 500SP: CuZn25Al6Fe3Mn3
SL2 Solid Graphite lubricant
Density 8.2g/cm3
Tensile Strength >=755N/mm2
Anti-compact Tenacity >=400~500KJ/m3
Hardness >=200HB
Max Load Pressure 100N/mm2 / 120N/mm2(500SP120)
Speed Limit 0.5m/s
PV value limit 1.65N/mm2.m/s
Friction coef Oil Lubrication 0.03
Dry Friction 0.16
Working temperature

-50~+300°C
