Specifications
Brand Name :
YGB,OEM,SKF,NTN
Model Number :
29488
Certification :
ISO9001:2008
Place of Origin :
China，Wuxi
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
T/T , L/C
Supply Ability :
1,000,000pcs per month
Delivery Time :
within 5- 10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Precision Rating :
P0, P6, P5 ,P4 ,P2
Vibration :
V1 V2 V3 V4
Number of Row :
Single Row
Material :
Chrome Steel
Seals Type :
Open
Sample :
Available
Description

440*780*206 mm Thrust Roller Bearings Bearing 29488

Quick Detail:

1) Spherical Roller Thrust Bearing 29230 29230E
2) Bearing Material: Chrome steel; Cage: Brass/Metal Cage
3) Abundant Stock &Quick Delivery
4) Brands: YGB or OEM

Specification:

Model Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg)
d D T rs min Ca Coa Oil (Approx. )
29412 60 130 42 1.5 283 805 2, 600 2.78
29413 65 140 45 2 330 945 2, 400 3.44
29414 70 150 48 2 365 1, 040 2, 200 4.19
29415 75 160 51 2 415 1, 190 2, 100 5.07
29416 80 170 54 2.1 460 1, 380 1, 900 6.09
29417 85 180 58 2.1 490 1, 480 1, 800 7.2
29418 90 190 60 2.1 545 1, 680 1, 700 8.38
29420 100 210 67 3 685 2130 1, 500 11.5
29422 110 230 73 3 845 2, 620 1, 400 15
29424 120 250 78 4 975 3, 050 1, 300 18.6
29426 130 270 85 4 1, 080 3, 550 1, 200 23.7
29428 140 280 85 4 1, 110 3, 750 1, 200 25.2
29430 150 300 90 4 1, 280 4, 350 1, 100 30.5
29432 160 320 95 5 1, 500 5, 150 1, 000 37
29434 170 340 103 5 1, 660 5, 750 940 45
29436 180 360 109 5 1, 840 6, 200 890 52.9
29438 190 380 115 5 2, 010 6, 800 840 62
29440 200 400 122 5 2, 230 7, 650 790 73.3

Spherical Roller Thrust Bearing (29488 )

With specially designed raceways and rollers, YGB Spherical Roller Thrust Bearings are capable of achieving a higher thrust capacity with lower friction and better performance in self-alignment.

In particular, contract manufacturing is accepted upon written requests that enable you to build non-standard bearings.

MBY spherical roller thrust bearings, typically, are able to accommodate heavy axial loads in one direction and heavy radial loads at relatively high speeds. From the perspective of the internal design, rollers have shape conformity with raceways to distribute loads along the roller length. Meanwhile, spherical rollers are arranged in a steep angular position, which permits to accommodate high thrust loads and support moderate radial loads. In other words, the loads are able to distribute between the raceways at an angle to the bearing axis.

On the other hand, raceways of YGB spherical roller thrust bearings are spherical with the center of the radius located on the bearing axis. The design provides self- alignment capability to the bearing. Typically, spherical roller thrust bearings are self-aligning and insensitive to static misalignment of the shaft relative to the housing.

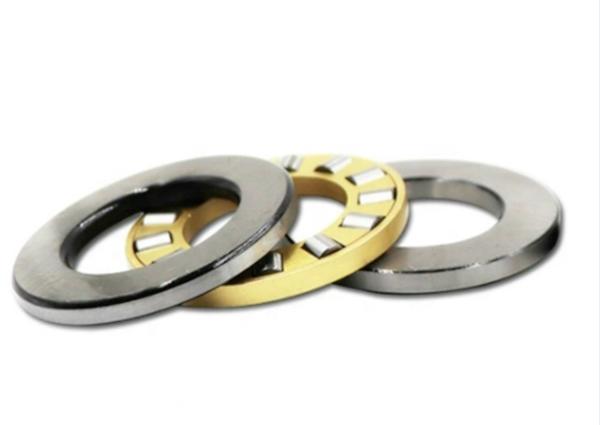

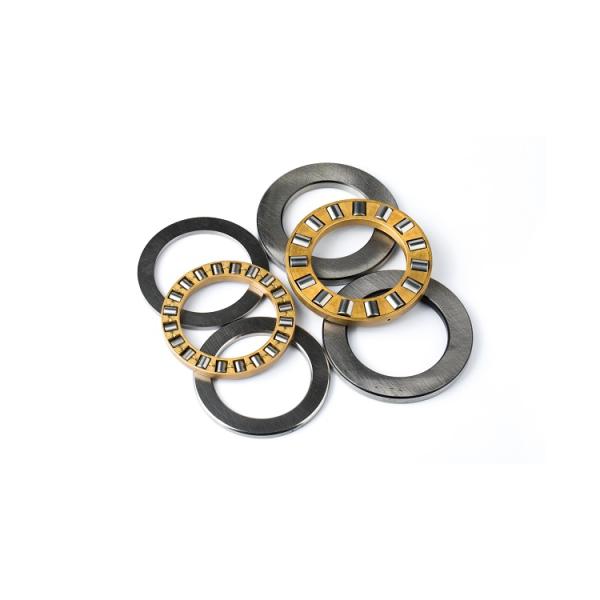

Photos:

Chrome steel 440*780*206 mm Thrust Roller Bearings Bearing 29488 440*780*206 mm Thrust Roller Bearings
Chrome steel 440*780*206 mm Thrust Roller Bearings Bearing 29488 440*780*206 mm Thrust Roller Bearings

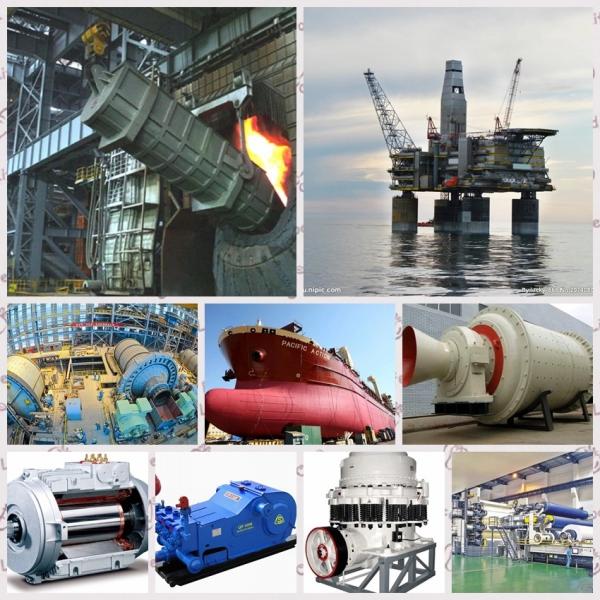

Application:
Chrome steel 440*780*206 mm Thrust Roller Bearings Bearing 29488 440*780*206 mm Thrust Roller Bearings
Chrome steel 440*780*206 mm Thrust Roller Bearings Bearing 29488 440*780*206 mm Thrust Roller Bearings
