Specifications
Brand Name :
FAG YGB, OEM
Model Number :
51116
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1000 pcs
Price :
negotiation
Payment Terms :
T/T or LC
Supply Ability :
10,000pcs per month
Delivery Time :
5-10 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden，in case for outer packing. All it's standard
Model :
51116 SKF
Size(mm) :
80x105x19
Type of bearing :
Thrust Ball Bearing
Quality :
Premium
Shields :
Open type
Service :
OEM can offer
Port :
Shanghai
Clearance :
Standard
Description

High Precision 51116 Single Direction Thrust Bearing 80x105x19mm series 511/500 51109 51116

Description :

Model 51116
Type of bearings Thrust ball bearings
Bearing material Steel
511 Ball Thrust, Single Direction, Metric, Extra Light
16 80mm - Bore Size
The number of row 1
ID*OD*W (mm) 80x105x19mm
Seals of shields Open type
Weight(kg) 0.42
Basic dynamic load ratings/C 44.9 kN
Basic static load ratings/C0 140 kN
Fatigue load limit 5.1
Reference speed 3000 rmp/min
Limiting speed 4300 rmp/min
Lead time Stock or 15-30days
Port Shanghai

The drawing:

High Precision Single Direction Thrust Bearing 80x105x19mm Series 511/500 51109 51116

High Precision Single Direction Thrust Bearing 80x105x19mm Series 511/500 51109 51116

The features:

1. Consists of a shaft washer, a spherical housing washer, and a ball cage assembly.
2. Suitable for relatively high axial loads in one direction.
3. Cage material: sheet steel, high load-bearing capacity, and high strength; suitable for continuous high temperatures,
can be dismantled, the bearing washers and the ball cage assembly can be mounted separately.
4. manufacturers of bearings, such as FAG, KOYO, NSK, SKF, SNR, etc. assign different suffixes for their characteristics, for better orientation take note of the comparison table of bearings (see further information).

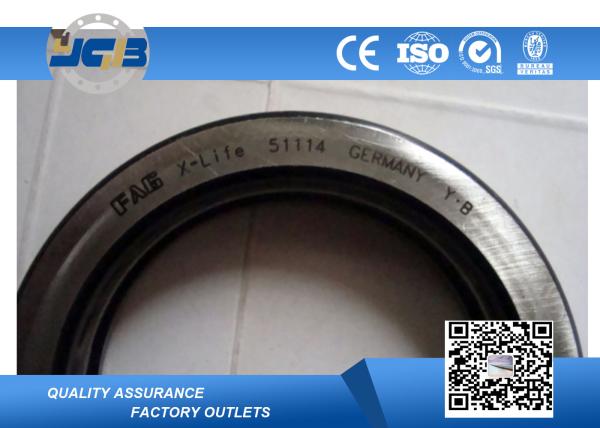

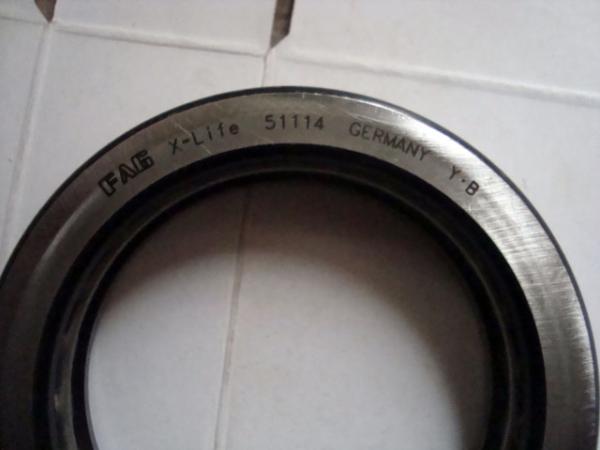

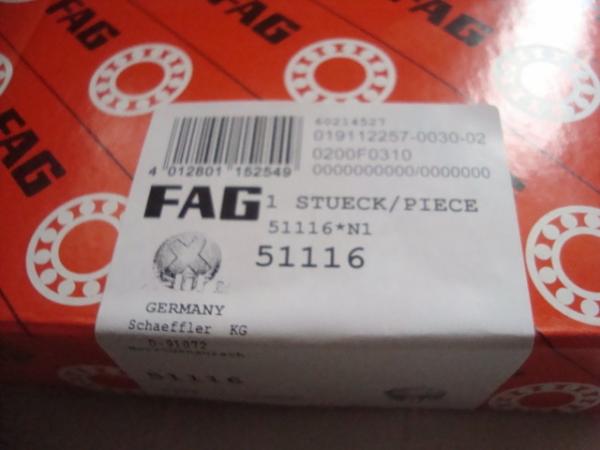

Sample show:

High Precision Single Direction Thrust Bearing 80x105x19mm Series 511/500 51109 51116

Relative Products:

Thrust Bearing
Type Specifications(dxDxH)mm Weight(kg)
59080 400×440×24 4.47
590/560 560×610×30 9.55
510/500 500×540×30 6.66
510/670 670×730×45 20.5
510/950 950×1030×60 -
510/1180 1180×1280×80 108
510/2360X1/HG/YA 2360×2568×150 722
59188 440×540×60 28.8
591/600 600×710×67 50.1
591/800 800×950×90 116
51100 10×24×9 0.0193
51101 12×26×9 0.0214
51102 15×28×9 0.0243
51103 17×30×9 0.0253
51104 20×35×10 0.0376
51105 25×42×11 0.0562
51106 30×47×11 0.0665
51106/HV - 0.076
51106TN1 30×47×11 0.066
51107 35×52×12 0.0826
