OEM 65X90X45mm NA6913 Roller Cage Bearing Single And Double Row With Inner Ring
OEM 65X90X45mm NA6913 Roller Cage Bearing Single And Double Row With Inner Ring
OEM 65X90X45mm NA6913 Roller Cage Bearing Single And Double Row With Inner Ring
OEM 65X90X45mm NA6913 Roller Cage Bearing Single And Double Row With Inner Ring
OEM 65X90X45mm NA6913 Roller Cage Bearing Single And Double Row With Inner Ring
OEM 65X90X45mm NA6913 Roller Cage Bearing Single And Double Row With Inner Ring
Specifications
Brand Name :
SKF , YGB , OEM
Model Number :
NA6913
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
500
Price :
negotiation
Payment Terms :
T/T , L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1,000,000pcs per month
Delivery Time :
within 5- 15 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packinghttps://www.maoyt.com/index.php?r=product/edit&pid=12421533#label_name
Name :
NA 6913 Double Row Bearings
Material :
Chrome Steel
Seals Type :
Open
Number of Row :
Single and Double row
Size :
65x90x45mm
Virbration :
V1 V2 V3 V4
Clearance :
C0 , C2 , C3 , C4 , C5
Precision Rating :
P0 P6 P5 P4 P2
Description

OEM 65X90X45mm NA6913 Needle Roller Bearing Single and Double row With Inner Ring

Description:

Bearing number : NA 6913
Size (mm) : 65x90x45
Brand : SKF , YGB , OEM
Bore Diameter (mm) : 65
Outer Diameter (mm) : 90
Width (mm) : 45
Basic static load rating (C0) - 227 kN
Limiting speed - 5 500 r/min
Weight - 0,84 Kg

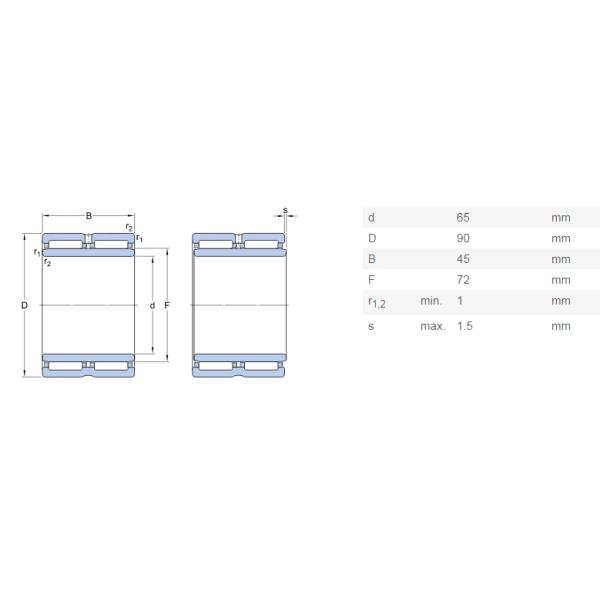

The Drawing:

OEM 65X90X45mm NA6913 Roller Cage Bearing Single And Double Row With Inner Ring

OEM 65X90X45mm NA6913 Roller Cage Bearing Single And Double Row With Inner Ring

NA 6913 Needle roller bearings (needle bearing) is a cylindrical roller with a roller bearing, relative to its diameter, roller both thin and long. This is called needle roller. Despite having a smaller cross-section, has a higher load-bearing capacity, equipped with a thin and long needle bearing roller (roller diameter D<5mm, L / D>2.5, L is the length of the roller), therefore radial structure is compact, its diameter size and load capacity and other types of bearings, minimum diameter, especially for radial mounting dimensions restricted support structure.

According to different occasions, can be used without inner ring of the bearing or needle roller and cage assembly, when the surface of the journal bearing surface and shell holes as bearing directly match the outer rolling surface, in order to ensure the load capacity and operating performance and have the same ring bearing, shaft or housing bore raceway surface hardness, machining accuracy, and surface quality should be similar roller bearing rings. Such bearings can only bear radial load.

The most popular ranges in this product type are:

NK, NKS, RNA series - Without Inner Rings
RNA.....-2RS - Without Inner Rings but with integral lip seals
NKI, NA, NKIS - With Inner Rings
NA.....-2RS - With Inner Rings and integral lip seals

Application:


Needle roller bearings are widely used in cars, compressors, construction, electric motors, food industry, home appliances, etc. As a rolling element, it turns the world.
