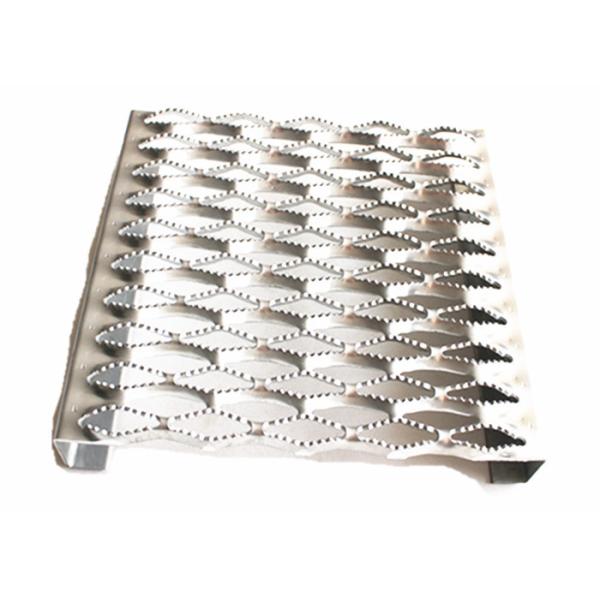

Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate
Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate
Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate
Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate
Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate
Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate
Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate
Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate
Specifications
name :
Anti Slip Metal Plates
material :
aluminum, galvanized steel, stainless steel
Maximum lengths :
6000mm
Standard widths :
120 mm / 180 mm / 240 mm / 300 mm / 360 mm / 420 mm / 480 mm
Plate thickness :
12 Gauge or 14 Gauge.
Application :
As walkways or stair steps for antiskid
Brand Name :
huihao
Model Number :
Anti Slip Metal Plates
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PAYPAL
Supply Ability :
200000PCS per month
Delivery Time :
10 work days
Packaging Details :
Pallets or wooden cases
Description

Aluminum Safety Grating Walkways , Crocodile Mouth Anti Slip Metal Plate

1.Hole size: Many different opening types to suit all applications including solid flooring with Raised Surface – please refer

to catalogues.

2.Thickness: 2mm to 3.5mm

3.Panel Widths: From the narrowest of panels up to 1000mm wide in some of the more specialist industrial type gratings –

please refer to catalogues.

4.Percentage open area: 0%(solid flooring) to 80% open area approximately – please refer to Downloads here for the full

range of percentage open area.

5.Application:works great as the safety grating of sewage treatment plant,power plant,and work plant,etc,as well as the platform

scaffoldings and stair treads for snowy places.

Material hot rolled, cold rolled, aluminum, galvanized plate, stainless steel panel etc.
Hole patterns crocodile mouth, round raised hole, tears shape etc.
Thickness generally 2mm, 2.5mm, 3.0mm
Height 20mm, 40mm, 45mm, 50mm, customized
Length 1m, 2m, 2.5m, 3.0m, 3.66m
Production technique punching, cutting, bending, welding

>>>Huihao-Crocodile mouth Anti-skid Perforated Metal Plates

2 Diamond / 4-3/4" Width

Diamond Pattern

Width

Channel Depth

Pre-galvanized

Aluminum

Stainless

2 Diamonds

4-3/4"

1-1/2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

4-3/4"

2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

16 Ga. (.062")

4-3/4"

2-1/2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

3 Diamond / 7" Width

Diamond Pattern

Width

Channel Depth

Pre-galvanized

Aluminum

Stainless

3 Diamonds

7"

1-1/2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

7"

2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

16 Ga. (.062")

7"

2-1/2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

7"

3"

12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

4　Diamond　/　9-1/2"　Width

Diamond Pattern

Width

Channel Depth

Pre-galvanized

Aluminum

Stainless

4　Diamonds

9-1/2"

1-1/2"

14　Ga.,　12　Ga.

12　Ga.　(.080"),　10　Ga.(.100")

N/A

9-1/2"

2"

14　Ga.,　12　Ga.

12　Ga.　(.080"),　10　Ga.(.100")

16　Ga.　304　&　316L

9-1/2"

2-1/2"

N/A

12　Ga.　(.080"),　10　Ga.(.100")

N/A

9-1/2"

3"

12　Ga.

12　Ga.　(.080"),　10　Ga.(.100")

N/A

5 Diamond / 11-3/4" Width

Diamond Pattern

Width

Channel Depth

Pre-galvanized

Aluminum

Stainless

5 Diamonds

11-3/4"

1-1/2"

14 Ga, 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

11-3/4"

2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

16 Ga. 304 & 316L

11-3/4"

2-1/2"

14 Ga., 12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

11-3/4"

3"

12 Ga.

12 Ga. (.080"), 10 Ga.(.100")

N/A

8 Diamond / 18-3/4" Width

Diamond Pattern

Width

Channel Depth

Pre-galvanized

Aluminum

Stainless

8 Diamonds

18-3/4"

1-1/2"

14 Ga., 12 Ga.

10 Ga. (.100")

N/A

18-3/4"

2"

14 Ga., 12 Ga.

10 Ga. (.100")

N/A
18-3/4" 2-1/2" 14 Ga., 12 Ga. 10 Ga. (.100") N/A
18-3/4" 3" 14 Ga., 12 Ga. 10 Ga. (.100") N/A
10 Diamond / 24" Width
Diamond Pattern Width Channel Depth Pre-galvanized Aluminum Stainless
10 Diamonds 24" 2" 14 Ga., 12 Ga. N/A N/A
24" 3" 14 Ga., 12 Ga. N/A N/A

How to install the Anti Slip Metal Plates

Aluminum Safety Grip Strut Grating Walkways , Crocodile Mouth Anti Slip Metal Plate

Bolt Seats securely anchor the grating to structural supports. The standard bolt seat features oblong holes specifically

designed to ensure a vertical anchor (with a 3/8" bolt) even if the hole is off concentrically by as much as 1/4". Available

in mill-galvanized steel, aluminum and stainless steel.

J-Clips fasten the grating securely to the supporting steel without drilling holes. Standard finish is galvanized.

Mid support clips can be used at midspan to increase load carrying capacities of individual channels by fastening several

planks together to form an integral section. The Midsupport Clip is manufactured from galvanized steel and includes two bolts.

Feature and advantages of the Anti Slip Metal Plate

  • Slip resistance. Serrated edges around diamond shaped openings provide slip resistance under slippery conditions
  • Stress crack resistance. Radiused corners reduce the possibility of stress cracks across saddles
  • or at the side channels under various loading conditions.
  • Self-cleaning. Due to the hole on the surface can filter the extra things.
  • Lightweight. Lightweight design provides high strength to weight ratio.
  • Long life. Long life and requiring little maintenance.

Packaging of the Anti-skid Perforated Metal Plates

In High quality steel pallet with strong steel belt ,wooden pallet. and also could be packed as request .
