2000kg/H 280kw Plastic Recycling Line HDPE Bottle Washing Recycling Line
2000kg/H 280kw Plastic Recycling Line HDPE Bottle Washing Recycling Line
2000kg/H 280kw Plastic Recycling Line HDPE Bottle Washing Recycling Line
2000kg/H 280kw Plastic Recycling Line HDPE Bottle Washing Recycling Line
2000kg/H 280kw Plastic Recycling Line HDPE Bottle Washing Recycling Line
2000kg/H 280kw Plastic Recycling Line HDPE Bottle Washing Recycling Line
Specifications
Brand Name :
HUIHAOCUSTOM
Model Number :
Standard system process line
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
10sets per month
Delivery Time :
10 work days
Packaging Details :
Standard export packaging for plastic recycling machine
name :
Scrap Plastic HDPE Bottle washing recycling line
Production Capacity (kg/h) :
2000
Dimension(L*W*H) :
according to the modle
Capacity :
300~2000kg/h or customized
motor brand :
yineng/siemens
Crusher blade material :
SKD-II / D-2
water supply :
4-20cubic meter
Moisture content :
1-2%
Material size :
10-22mm
power :
100~280kw
Description

Standard System Process Line Scrap Plastic HDPE Bottle Washing Recycling Line

This series washing line is widely used to recycle Waste HDPE/PP/PE Bottle/milk/plastic bucket/plastic crates/plastic lump etc.

This Washing recycling machine could be displayed "L" or "U" shape according customers workshop.

Plastic HDPE Bottle Washing Recycling Line modle details

we supply two modles to you as reference:

  • Standard system process line:

1.Conveyor belt→Plastic crusher (wet crush)→Friction washer loader→Float washing tank→Screw loader→vertical plastic dewatering machine→Hot air dryer system→Silo

Model
Capacity
Total power
Water supply
Manual
Dimension
MEB-300
300kg/h
100 KW
4-5 CBM/H
1~2
20*4.5*5m (L*W*H)
MEB-500
500kg/h
115 KW
5-6 CBM/H
1~2
20*4.5*5m (L*W*H)
MEB-1000
1000kg/h
125 KW
7-8 CBM/H
2~3
23*5*5m (L*W*H)
MEB-1500
1500 kg/h
180 KW
8-10 CBM/H
2-3
25*5*5m (L*W*H)
MEB-2000
2000 kg/h
225 KW
10-15 CBM/H
2-3
25*5*5m (L*W*H)
  • Advance system process line:

1.Conveyor belt→Plastic crusher (wet crush)→Friction washer loader→Float washing tank→Screw loader→High speed friction washing dewatering machine→Float washing tank→Screw loader→Horizontal dewatering machine→Hot air dryer system→Silo

2.Conveyor belt→Single shaft shredder machine or Double shaft shredder machine→Conveyor belt→ Plastic crusher (wet crush)→Friction washer loader→Float washing tank→Screw loader→High speed friction washing dewatering machine→Float washing tank→Screw loader→Horizontal dewatering machine→Hot air dryer system→Silo

Model
Capacity
Total power
Water supply
Manual
Dimension
MEB-300
300kg/h
130KW
5-6 CBM/H
1~2
38*4.5*5m (L*W*H)
MEB-500
500kg/h
145KW
6-8 CBM/H
1~2
38*4.5*5m (L*W*H)
MEB-1000
1000kg/h
190KW
8-10 CBM/H
2~3
43*5*5m (L*W*H)
MEB-1500
1500 kg/h
230 KW
10-15 CBM/H
2-3
45*5*5m (L*W*H)
MEB-2000
2000 kg/h
280 KW
15-20 CBM/H
2-3
45*5*5m (L*W*H)

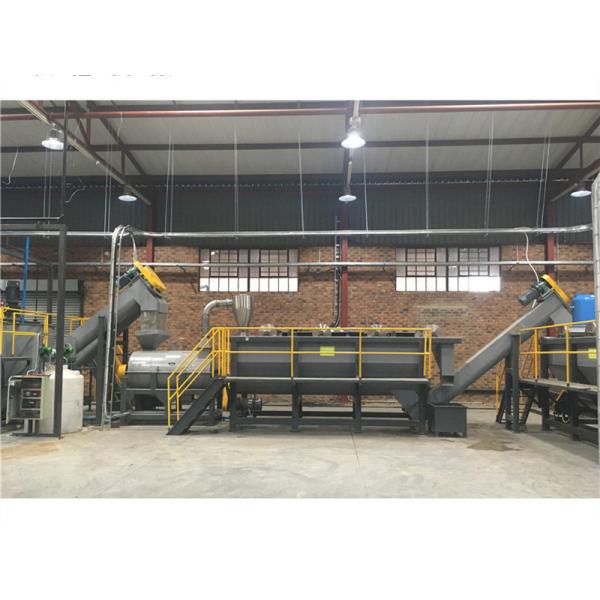

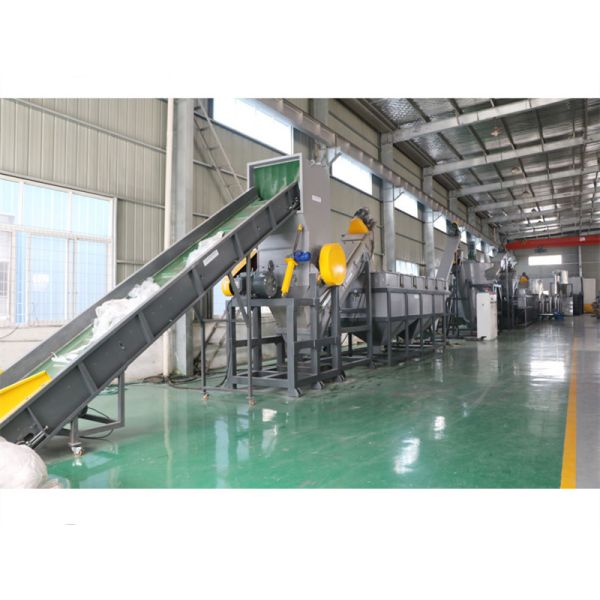

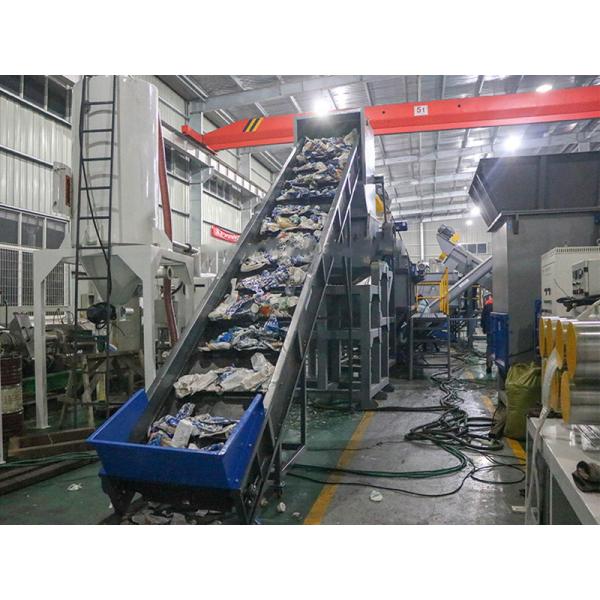

Machine photos of HDPE Bottle Washing Recycling Line

2000kg/H 280kw Plastic Recycling Line HDPE Bottle Washing Recycling Line2000kg/H 280kw Plastic Recycling Line HDPE Bottle Washing Recycling Line2000kg/H 280kw Plastic Recycling Line HDPE Bottle Washing Recycling Line
