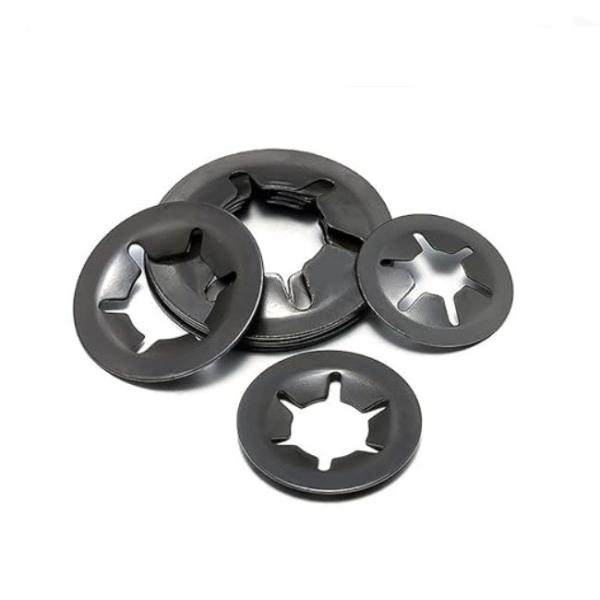

Black Color Lock Speed Bearing Clamp Retaining Ring
Black Color Lock Speed Bearing Clamp Retaining Ring
Black Color Lock Speed Bearing Clamp Retaining Ring
Black Color Lock Speed Bearing Clamp Retaining Ring
Black Color Lock Speed Bearing Clamp Retaining Ring
Black Color Lock Speed Bearing Clamp Retaining Ring
Black Color Lock Speed Bearing Clamp Retaining Ring
Black Color Lock Speed Bearing Clamp Retaining Ring
Black Color Lock Speed Bearing Clamp Retaining Ring
Black Color Lock Speed Bearing Clamp Retaining Ring
Specifications
Price :
USD0.11
Name :
Bearing Clamp Retaining Ring
Material :
65MN STEEL
Surface treatment :
black oxide finish
Size :
M10
Washer type :
Starlock Washer
Thickness :
2.2MM
Designer :
ZHIJING.GAO13363891298
Manufacturer :
HUIHAO HARDWARE
MOQ :
10000PCS
Payment Terms :
L/C,T/T,Western Union,D/P,D/A
Supply Ability :
1000000 pcs per 30 days
Delivery Time :
7 work days
Packaging Details :
small pp bag or plastic box or carton
Brand Name :
HUIHAOKST
Model Number :
JIS B 1216-2006
Certification :
ISO9001-2015
Place of Origin :
CHINA
Description
Black Color Lock Speed Bearing Clamp Retaining Ring
Product Specifications
Attribute Value
Name Bearing Clamp Retaining Ring
Material 65MN STEEL
Surface treatment Black oxide finish
Size M10
Washer type Starlock Washer
Thickness 2.2MM
Manufacturer HUIHAO HARDWARE
Detailed Specifications
  • Washer Type: Starlock Washer
  • Material: 65Mn Spring Steel
  • Finish: Black Oxide
  • Size: M10
  • Fit Shaft Outer Diameter: 10mm
  • Inner Diameter: 9.2mm
  • Outer Diameter: 20mm
  • Thickness: 2.2mm
Product Features
  • Starlock Washer provides spring force between two attachments and grips shaft firmly in place
  • Creates a permanent installation with firm locking capability
  • 65Mn steel offers excellent strength for spring washer applications
  • Black oxide finish enhances corrosion resistance in dry environments
  • Widely used in machinery equipment, industrial production, shock absorption, and bearings
  • Teeth design may cause minor scratching on shaft material
Technical Data
Size 2 3 4 5 6 8 10 12
d 1.9 2.9 3.9 4.9 5.9 7.9 9.9 11.9
MIN 1.8 2.75 3.75 4.75 5.75 7.75 9.75 11.75
dc 6 10 12 14 16 17.5 21 27
H 0.7 1.3 1.4 1.55 1.75 1.8 2.2 2.8
h (Average) 0.25 0.3 0.3 0.4 0.4 0.5 0.7 0.9
Black Color Lock Speed Bearing Clamp Retaining Ring Black Color Lock Speed Bearing Clamp Retaining Ring
Ordering Information
Payment Terms
  • Payment required within 7 days after order confirmation
  • We accept ALIPAY as primary payment method
  • Ensure your registered address matches your account details
Delivery Information
  • Items ship within 1 business day after payment clearance
  • Standard shipping via FEDEX or UPS (2-5 business days)
  • Contact us before leaving feedback for delivery inquiries
Return Policy
  • 30-day return policy
  • Items must be in resellable condition with original packaging
  • Contact us for return authorization and address
For any questions or special requirements, please contact us through our messaging system.
