Stainless Steel Architectural Metal Mesh Drapery for Room Dividers
Stainless Steel Architectural Metal Mesh Drapery for Room Dividers
Stainless Steel Architectural Metal Mesh Drapery for Room Dividers
Stainless Steel Architectural Metal Mesh Drapery for Room Dividers
Stainless Steel Architectural Metal Mesh Drapery for Room Dividers
Stainless Steel Architectural Metal Mesh Drapery for Room Dividers
Specifications
Name :
Architectural Metal Mesh Drapery
Application :
Wall Coverings / Room Dividers
Material :
stainless steel 304,316
ring diamter :
1.2mmx10mm ( common size)
width :
to be your requirements
length :
to be request
Brand Name :
HUIHAO
Model Number :
Architectural Metal Drapery
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C,T/T,Western Union,paypal
Supply Ability :
3000 square meter per 28 days
Delivery Time :
5-8 work days
Packaging Details :
1.inner platic foam 2.fumigated wooden case outside
Description
Stainless Steel Architectural Metal Mesh Drapery for Room Dividers
Product Specifications
Name Architectural Metal Mesh Drapery
Application Wall Coverings / Room Dividers
Material Stainless steel 304, 316
Ring Diameter 1.2mm × 10mm (common size)
Width Customizable to requirements
Length Customizable to request
Product Description

Architectural Chainmail Metal Mesh Drapery consists of linked metal rings that create supple and free-flowing sheets. Unlike individually-welded rings, this linked pattern allows for easy passage through the curtain while maintaining structural integrity.

This chain braided ring mesh serves as an elegant decorative element for both residential and commercial spaces. Its distinctive metal luster and shimmering effect create a unique environment, offering a sophisticated alternative to traditional cloth curtains. Additionally, it is nonflammable and easy to maintain.

Technical Specifications
Welded Type:
Term Type Material Wire Diameter Outer Diameter Weight/m²
XY-SS-053 Weld Stainless steel 0.53mm 3.81mm 3.2kgs
XY-SS-080 Weld Stainless steel 0.80mm 7.00mm 2.8kgs
XY-SS-150 Weld Stainless steel 1.50mm 15.00mm 4.8kgs
XY-CS-150 Weld Copper/brass 1.50mm 15.00mm 5.5kgs
XY-SS-200 Weld Stainless steel 2.0mm 20.00mm 6.8kgs
XY-CS-200 Weld Copper/brass 2.0mm 20.00mm 7.8kgs
Non-Welded Type:
Term Type Material Wire Diameter Outer Diameter Weight/m²
XY-SS-100 Non-welding Stainless steel 1.0mm 8.00mm 4.7kgs
XY-MS-100 Non-welding Mild steel 1.0mm 8.00mm 4.6kgs
XY-SS-120 Non-welding Stainless steel 1.2mm 10mm 4.8kgs
XY-CS-120 Non-welding Mild steel 1.2mm 10mm 5.5kgs
XY-SS-150 Non-welding Stainless steel 1.5mm 15mm 4.8kgs
XY-CO-150 Non-welding Mild steel 1.5mm 15mm 5.5kgs
XY-SS-200 Non-welding Stainless steel 2.0mm 20mm 6.8kgs
XY-CO-200 Non-welding Mild steel 2.0mm 20mm 7.8kgs

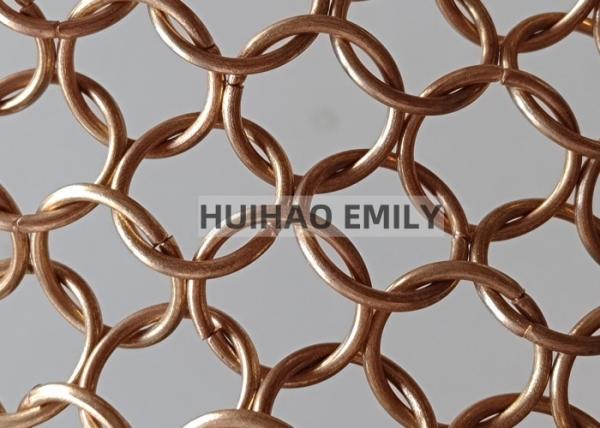

Product Images
Stainless Steel Architectural Metal Mesh Drapery for Room Dividers

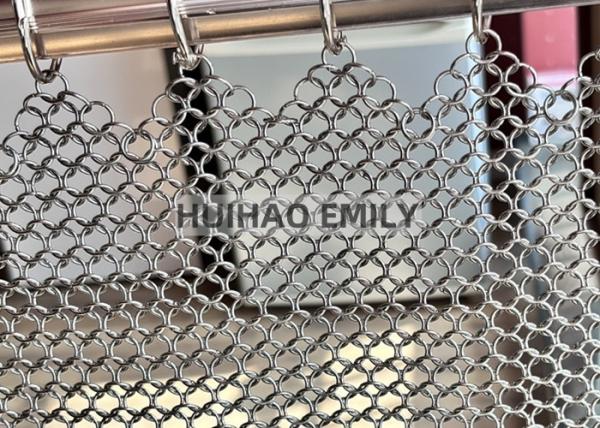

Hanging Methods

Ring mesh drapes can be hung by any competent installer from strong, conventional track using carriers with integral hooks. Choose from these 5 methods:

Stainless Steel Architectural Metal Mesh Drapery for Room Dividers
Applications

Manufactured with stainless steel, brass, copper, or low carbon steel wire, our chainmail ring wire mesh offers both durability and aesthetic appeal. The stainless steel versions provide long-lasting performance, while copper and brass options offer beautiful surfaces for decorative applications.

Common applications include:

  • Space dividers and partition curtain walls
  • Window treatments and sun protection
  • Wall decoration and facade cladding
  • Exhibition design and staircase walls
  • Shop fitting and security areas
  • Helmets and garment decoration
  • Fireplace screens and shower curtains
  • Mechanical filtration and railings
Stainless Steel Architectural Metal Mesh Drapery for Room Dividers
