6M Channel Aluminum Plank Grating For Platforms
6M Channel Aluminum Plank Grating For Platforms
6M Channel Aluminum Plank Grating For Platforms
6M Channel Aluminum Plank Grating For Platforms
6M Channel Aluminum Plank Grating For Platforms
6M Channel Aluminum Plank Grating For Platforms
6M Channel Aluminum Plank Grating For Platforms
6M Channel Aluminum Plank Grating For Platforms
6M Channel Aluminum Plank Grating For Platforms
6M Channel Aluminum Plank Grating For Platforms
Specifications
Brand Name :
HUIHAOKASITE
Model Number :
Safety Grating Walkway Channels
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C,T/T,Western Union,paypal
Supply Ability :
150000pcs per year
Delivery Time :
7 work days
Packaging Details :
Safety Grating Walkway Channels 1.packing on a pallet and then wrapped with plastic film, 2.wrapped with plastic film then put into wodden cases 3.Packaging as the customer's request
Price :
USD68/PC
Material :
aluminum , mild steel, stainless steel
Standard widths :
120 mm / 180 mm / 240 mm / 300 mm / 360 mm / 420 mm / 480 mm
Standard height :
40 mm / 50 mm / 75 mm.
Maximum lengths :
6000mm
applicatiom :
Safety Grating Walkway Channels
Product name :
Walkway aluminum plank grating
Description
6M Channel Aluminum Plank Grating For Platforms
Product Specifications
Attribute Value
Material Aluminum, mild steel, stainless steel
Standard widths 120 mm / 180 mm / 240 mm / 300 mm / 360 mm / 420 mm / 480 mm
Standard height 40 mm / 50 mm / 75 mm
Maximum lengths 6000mm
Application Safety Grating Walkway Channels
Product name Walkway aluminum plank grating
Product Description

Channel steel Safety Grating, Walkway aluminum plank grating process

These are one-piece modules manufactured with integral side toe boards projecting above the walking surface of the flooring. Ideal for elevated applications such as suspended walkways or conveyor catwalks, these channels provide safe, economical, slip resistant options for long span walkways. Continuous spans can be accommodated by welding adjacent planks or specifying splice plates.

Technical Specifications

2 Diamond / 9-1/4" Width

Diamond Pattern Width Channel Depth Galvanized Aluminum
2 Diamonds 9-1/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
2 Diamonds 9-1/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
2 Diamonds 9-1/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
2 Diamonds 9-1/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")

3 Diamond / 13-3/4" Width

Diamond Pattern Width Channel Depth Galvanized Aluminum
3 Diamonds 13-3/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
3 Diamonds 13-3/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
3 Diamonds 13-3/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
3 Diamonds 13-3/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")

5 Diamond / 23-1/4" Width

Diamond Pattern Width Channel Depth Galvanized Aluminum
5 Diamonds 23-1/4" 2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
5 Diamonds 23-1/4" 2-1/2" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
5 Diamonds 23-1/4" 3" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
5 Diamonds 23-1/4" 4" 11 Ga., 10 Ga., 9Ga. 12 Ga. (.080"), 10 Ga. (.100")
Applications

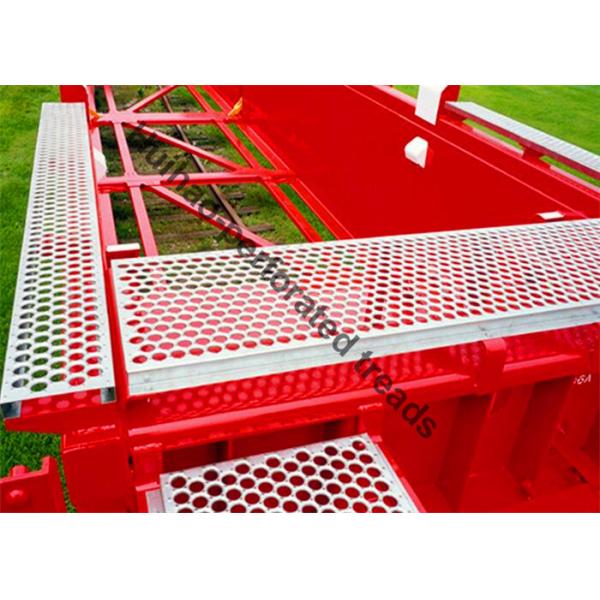

It is widely used in industry and commerce, for platforms, mezzanines, racking, shelving, billboard catwalks, highway signs, rooftop walkways, crossovers and ramps, vented vertical partitions, and other places.

6M Channel Aluminum Plank Grating For Platforms
Installation Guide
6M Channel Aluminum Plank Grating For Platforms
