Polyurethane High Frequency Vibrating Screen Bar For Quarry Screen

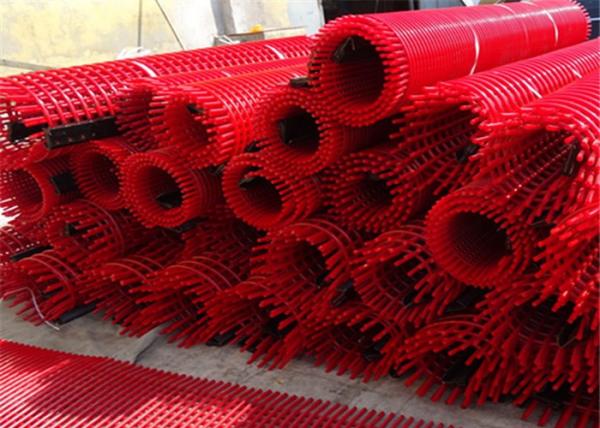

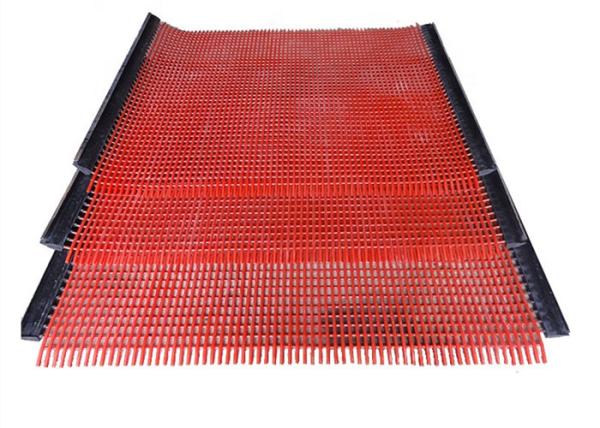

Steel core polyurethane screen (Self Cleaning Screen Mesh) is made of steel wire inside and polyurethane outside,

which has high tensile strength and outstanding wear resistance. The steel core wires are welded into square or rectangular

meshes. It has smooth surface and self-cleaning performance, so that it can avoid pegging or blinding.

Specification of steel core ployurethane screen,Self Cleaning Screen Mesh

Features of steel core ployurethane screen

• No pegging or blinding.
• Wear resistance.
• High tensile strength.
• High screening or separating efficiency.
• Lightweight and easy to install and remove.
• Low noise in the operation.
• Hook connection for easy fastening.

• flexible polyurethane mesh screen with similar open area as woven wire screens.

• The mesh is cut and hook-edged to suit all types of screening equipment with a cambered deck (side- and end-tensioned).

Installation Instructions of steel core ployurethane screen

Transverse or longitudinal tensioning, always with the use of hooks. The separator must be equipped with beams with an elevation

of approx 20 mm per metre of the width of the separator, equipped with protecting PU bars. The tension moment in relation to the

thickness of the PU wire ranges from 20 – 35 Nm; the screen will be extended by approx 0.5 %

Applications of steel core ployurethane screen

• Steel core polyurethane screen is ideal for various materials no matter wet or dry materials.
• The different sizes of steel core polyurethane screen can fit various vibrating screens.
• Steel core polyurethane screen can be used combined with woven vibrating screen mesh
• modular polyurethane screen for different requirements.
