Specifications
Brand Name :
HUIHAOKASITE
Model Number :
Anti-blocking Screen
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
10 pieces
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
700 pieces per 20 days
Delivery Time :
5-8 work days
Packaging Details :
carton box and wooden case (also as customer's request)
Price :
USD56- USD188/PC
material :
high carbon steel
length :
1880mm
width :
1220mm
band width :
35mm
Name :
Anti-blocking Screen
Type :
design metal mesh
Description

Design Type Anti-blocking Screen Deal With Wet Material Screening


inventory List of High Carbon Steel M Style Woven Self Cleaning Mesh With Polyurethane Band

  • material: 65mn steel, 45 mn steel

  • polyurethane band size:35mm width 20mm thickness

  • polyurethane band number per panel: 7 or 5

  • aperture type: H style

  • hook type:shrouded hook edge ,1.5mm thickness galvanized steel

length

width

aperture

wire diameter

stringer number

1880mm

1220mm

20mm

5mm

5

1880mm

1220mm

18.5mm

5mm

5

1880mm

1220mm

16mm

5mm

5

1880mm

1220mm

12.5mm

3.15mm

7

1880mm

1220mm

11.2mm

3.15mm

7

1880mm

1220mm

10mm

3.15mm

7

1880mm

1220mm

8mm

2.5mm

7


The H mesh of self cleaning screen mesh is made of several horizonal and parallel crimped wires. It looks like the herring
bone pattern, which can offer better sizing control than D mesh and W mesh by eliminating more flats and elongates.

tolerance scope of High Carbon Steel H Style Woven Self Cleaning Mesh With Polyurethane Band

  • Aperture error:≤3%,which is better than International Standards;
  • Wire diameter error: ±3%;
  • Diagonal error:≤9mm every2m

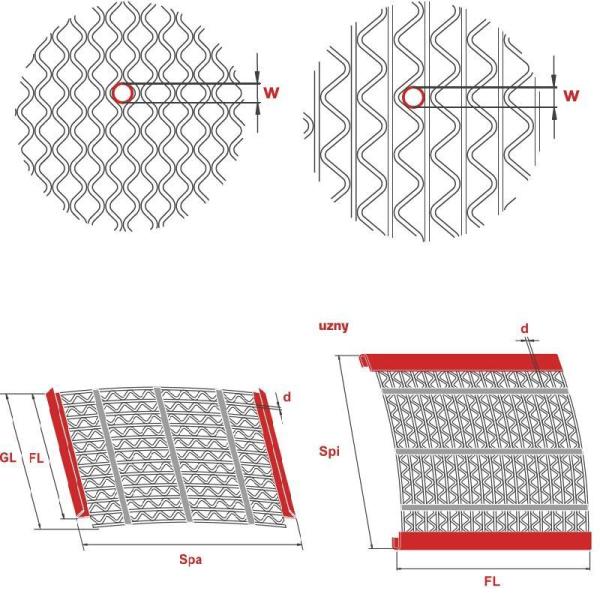

hook types of High Carbon Steel H Style Woven Self Cleaning Mesh With Polyurethane Band

Design Type Anti-blocking Screen Deal With Wet Material Screening

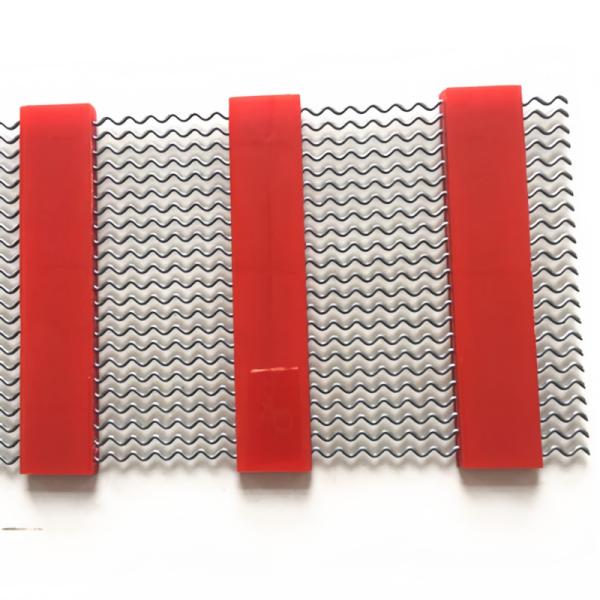

images of High Carbon Steel H Style Woven Self Cleaning Mesh With Polyurethane Band

Design Type Anti-blocking Screen Deal With Wet Material Screening
