Anti-Clogging Quarry Steel Screen Mesh For Stone Crusher
Anti-Clogging Quarry Steel Screen Mesh For Stone Crusher
Anti-Clogging Quarry Steel Screen Mesh For Stone Crusher
Anti-Clogging Quarry Steel Screen Mesh For Stone Crusher
Anti-Clogging Quarry Steel Screen Mesh For Stone Crusher
Anti-Clogging Quarry Steel Screen Mesh For Stone Crusher
Specifications
Brand Name :
huihaokasite
Model Number :
Quarry Steel Screen Mesh
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C,T/T,Western Union,payoal
Delivery Time :
5-8 work days
Packaging Details :
1. 20 pieces per wooden pallets. 2.25pallets per 20ft container 3. to be your requesr.
Price :
USD56-USD188/PC
Supply Ability :
3000 PCS PER 25 DAYS
name :
Quarry Steel Screen Mesh
material :
65MN STEEL
wire diameter :
0.5-5mm
screen mesh width :
less than 2800 mm
length of screen mesh :
requirements
Stand material :
pu
Description

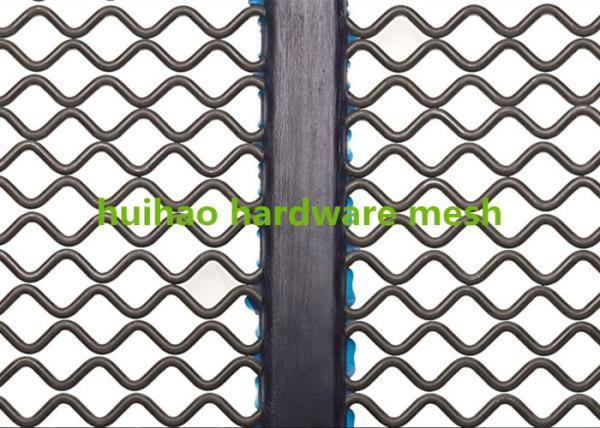

Anti-Clogging Quarry Steel Screen Mesh For Stone Crusher


We manufacture Stone Crusher Anti-Clogging Seperator Mesh/65MN Doser Harp Self Cleaning Screen for our customers

to the following range of specifications:

  • Mesh Types: Square Mesh, Rectangular Slotted Mesh and Elongated Mesh

  • Crimp Types: Flat Top, Double Crimp, Lock Crimp, Corrugated Crimp

1.Brief introduction of Stone Crusher Anti-Clogging Seperator Mesh, 65MN Doser Harp Self Cleaning Screen

  • 1. Materials: manganese steel wire, wild steel wire, stainless steel wire and so on.
  • 2. Weaving patterns: crimped before weaving, double crimped, single crimped
  • 3. Feature:Wear and abrasion resistant, heavy impact resistant, and long using like, high strength

2.Stone Crusher Anti-Clogging Seperator Mesh, 65MN Doser Harp Self Cleaning Screen Specification


Anti-Clogging Quarry Steel Screen Mesh For Stone Crusher


some parts of specification as reference, at same time we wab be according your requirements to custom.


aperture (mm)
wire diameter(mm)
kg/m2
screening area%
1.50
1.20-1.60
4.7-6.8
31-38
2.00
1.20-1.60
4.3-6.2
37-43
3.00
1.20-2.00
3.6-7.8
40-52
4.00
1.20-2.00
3.1-6.9
45-58
5.00
1.50-2.80
2.7-11
41-65
6.00
1.50-2.80
3.4-9
48-64
8.00
2.00-3.15
4.5-9.1
53-63
10.00
2.00-3.15
3.7-8.0
59-69
14.00
2.00-4.00
3.0-9.6
61-76
19.00
2.80-4.00
4.2-7.9
68-76
22.00
2.50-4.00
3.0-7.1
72-80
25.00
4.00-5.00
6.4-9.3
70-74
26.00
4.00-5.00
6.10-9.20
70-75
28.00
3.00-4.00
3.5-5.8
77-82
30.00
3.00-4.00
3.3-5.6
78-83
32.00
4.00
5.30
79
35.00
4.00-5.00
4.8-7.3
77-81
40.00
4.00
4.00
84


3. one drawing type of Stone Crusher Anti-Clogging Seperator Mesh, 65MN Doser Harp Self Cleaning Screen as

reference as follows:


Anti-Clogging Quarry Steel Screen Mesh For Stone Crusher

Anti-Clogging Quarry Steel Screen Mesh For Stone Crusher


4.Assortments available of Stone Crusher Anti-Clogging Seperator Mesh, 65MN Doser Harp Self Cleaning Screen

  • Crimped square wire mesh
  • Standard square wire mesh
  • Square wire mesh, hot-dipped (electro) galvanized after weaving
  • Square wire mesh, hot-dipped (electro) galvanized before weaving
  • Iron wire mesh

5. Applications of Stone Crusher Anti-Clogging Seperator Mesh, 65MN Doser Harp Self Cleaning Screen

  • The heavy duty crusher stone screens are always used in mine, coal industry for sieving the stone and sand.
  • The stainless steel materials also can be used for decoration and fence, as it is corrosion resistant and heat resistant.
  • The Galvanized crusher stone screens are always used to roast food.
  • We can produce any size crusher stone screens according to customer's requirements like different mesh opening, width or length.

6.Poly Stringer Self Cleaning Screen Mesh, High Carbon Steel Doser Harp Screen packing details


1. 20 pieces per wooden pallets. 2.25pallets per 20ft container 3. to be your request


Anti-Clogging Quarry Steel Screen Mesh For Stone Crusher
