Wire Rod Architectural Wire Mesh For Exterior Wall
Wire Rod Architectural Wire Mesh For Exterior Wall
Wire Rod Architectural Wire Mesh For Exterior Wall
Wire Rod Architectural Wire Mesh For Exterior Wall
Wire Rod Architectural Wire Mesh For Exterior Wall
Wire Rod Architectural Wire Mesh For Exterior Wall
Wire Rod Architectural Wire Mesh For Exterior Wall
Wire Rod Architectural Wire Mesh For Exterior Wall
Wire Rod Architectural Wire Mesh For Exterior Wall
Wire Rod Architectural Wire Mesh For Exterior Wall
Specifications
Brand Name :
huihaokasite
Model Number :
Exterior Wall Metal Fabric Partition
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
100 square meters
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000 square meters per 20 days
Delivery Time :
7 work days
Packaging Details :
1. Each piece with one plastic paper, and 50-100 pieces in a wooden box. 2. As your request
Price :
USD58/M2
material :
stainless steel wire
surface treatment :
antique brass, polish, power coated
width :
less than 3m
length :
to be order
Description

Wire Rod Architectural Wire Mesh For Exterior Wall


Architectural Wire Mesh Techincal support:

1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.

1.Details of Exterior Wall Metal Fabric Partition , Wire Rod Architectural Wire Mesh

Material

304, 316, 314, 316L, 310, and etc stainless steel wire, or galvanized carbon steel wire

Weight

as for different sizes

Surface treatment

painting with colours

Feature

flat surface, rust-proof, corrosion resistance, sturdy and durable, heavy load capacity, high anti-pressure ability, high temperature resistance

Wire Diameter

1.5mm, 2mm, 3mm or as requirements


2.Specification of Exterior Wall Metal Fabric Partition , Wire Rod Architectural Wire Mesh

Material

Stainless Steel

Opening Area

42%

Warp Diameter

3mm

Mesh Thickness

7mm

Warp Pitch

6mm

Surface

clean &free oil

Weft Diameter

2mm×4

Max High

4000mm

Weft Pitch

50mm

Max Wide

8000mm

Weight

11.8kgs/m2

Application

Interior / Exterior

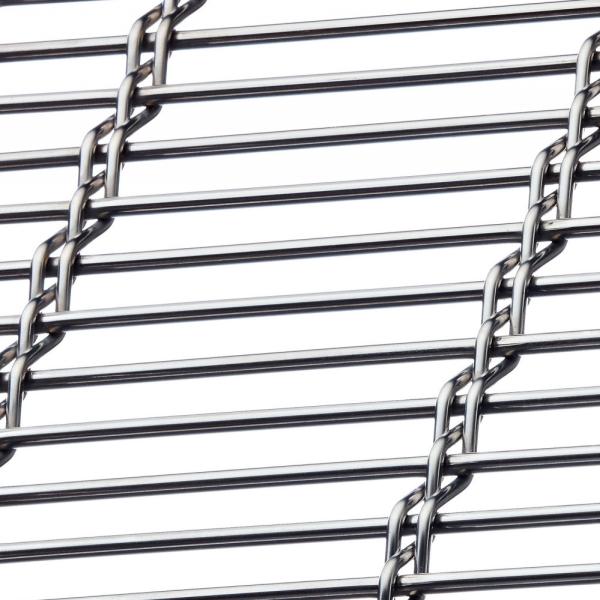

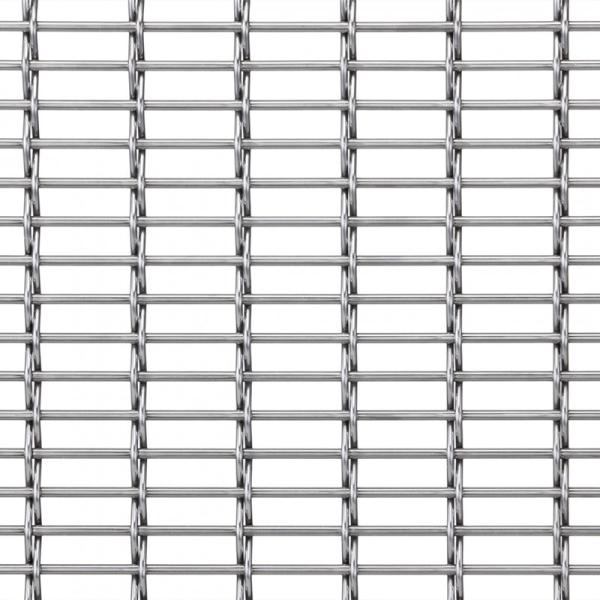

3. imange of Exterior Wall Metal Fabric Partition , Wire Rod Architectural Wire Mesh

Wire Rod Architectural Wire Mesh For Exterior Wall


4. Features of Exterior Wall Metal Fabric Partition , Wire Rod Architectural Wire Mesh

· Corrosion resistance.
· Anti-acid and alkali resistance.
· Anti-high temperture.
· Good filter performance.
· Long using life

5. Application of the Architectural Wire Mesh

Decorative wire mesh is used for exterior facades, wall coverings, draped and suspended ceilings, column cladding, sunshades

and canopies, gates, stairs, balustrades, furniture and partition screens. Metallic mesh is so flexible it can make stainless steel

look like soft, woven cloth or even a transparent membrane. Seen from behind it is translucent.

6. certification
Wire Rod Architectural Wire Mesh For Exterior Wall
