FUJITSU F53/F56 KD03234-C520 Bill Dispenser Teeth Belt 10*125 S2M with all kinds belts
FUJITSU F53/F56 KD03234-C520 Bill Dispenser Teeth Belt 10*125 S2M with all kinds belts
FUJITSU F53/F56 KD03234-C520 Bill Dispenser Teeth Belt 10*125 S2M with all kinds belts
FUJITSU F53/F56 KD03234-C520 Bill Dispenser Teeth Belt 10*125 S2M with all kinds belts
Specifications
Brand Name :
Fujitsu
Model Number :
10*125 S2M
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
1000 pcs/month
Delivery Time :
3-8 working days
Packaging Details :
Wooden box
Compatibility :
Fujitsu ATM Models
Used In :
Fujitsu machine
Material :
High-grade Plastic and Metal
Delivery :
2-7 days after payment received
Origin Of Place :
China
Shipping Mehtod :
By Express/by sea/by air
Item No :
KD02881-Y525
Part Number :
KD03234-C520
Productname :
Fujitsu ATM Parts
Language Support :
English & Franch & Spainish & Arabic
Payment :
T/T,West Union,Paypal
Description

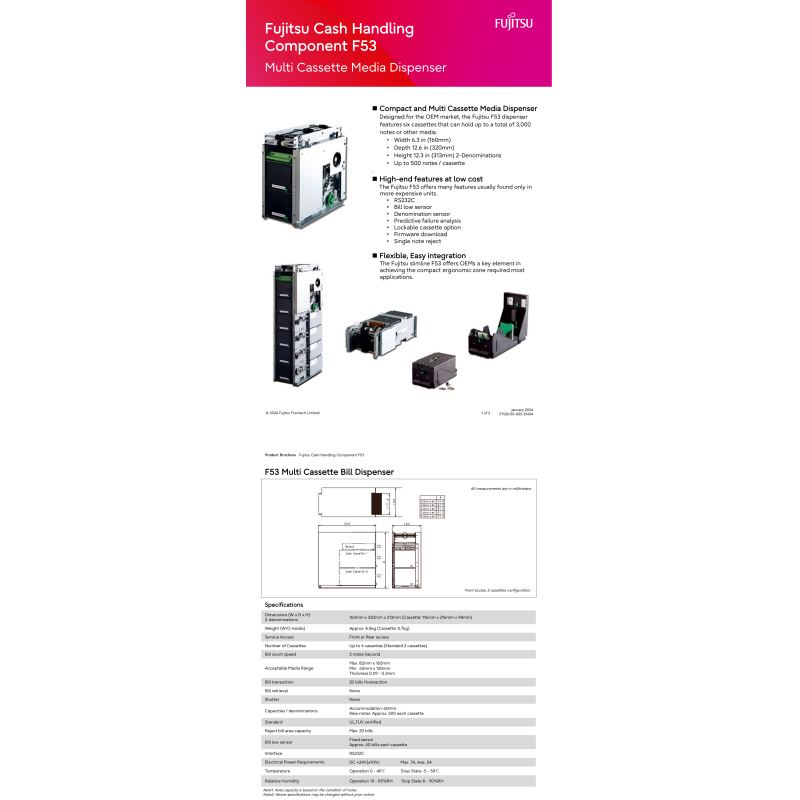

FUJITSU F53/F56 KD03234-C520 Bill Dispenser Teeth Belt 10*125 S2M
Compact and versatile multi-cassette media dispenser designed for OEM integration with high-end features at competitive cost.
Product Overview
The F53 is a compact multi-cassette media dispenser engineered specifically for the OEM market. Its streamlined design offers maximum flexibility and straightforward integration into product designs.
Key Dimensions
  • Width: 6.3in (160mm)
  • Depth: 12.6in (320mm)
  • Height: 12.3in (313mm)
  • 2-Denomination capability
  • Capacity: Up to 500 notes per cassette
Main Features
  • RS232C interface
  • Bill low sensor
  • Denomination sensor
  • Predictive failure analysis
  • Lockable cassette option
  • Firmware download capability
  • Single note reject function
Technical Specifications
Specification Details
Dimensions (W x D x H)
2-denominations		 160mm x 320mm x 313mm
Cassette: 116mm x 216mm x 98mm
Weight (Without media) 8.5kg
0.7kg per Cassette
Service Access Front or Rear
Number of Cassettes Up to 6 Cassettes
Bill Count Speed 2 Notes / Second
Media Specifications
Thickness		 Max: 82mm x 165mm
Min: 60mm x 120mm
0.09mm - 0.3mm
Bills per Transaction 20 Bills / Transaction
Bill Retrieval None
Shutter None
Capacities per Denomination
Accommodation		 60mm
New US Note: 500 each cassette (Approx.)
Certification Standards UL, TUV certified
Reject Bill Area Capacity Max. 20 bills
Bill Low Sensor Fixed sensor
Approx. 40 bills each cassette
Interface RS232C
Electrical Power Requirements DC +24V ±10%
Max. 7A
Average 5A
Temperature
Operation
Stop State		 0ºC - 40ºC
-5ºC - 50ºC
Relative Humidity
Operation
Stop State		 10% - 85%
8% - 90%
