Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Specifications
Type :
Roller, Ball
Structure :
Spherical
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Energy & Mining, Other
Brand Name :
RHF
Model Number :
11204-11212
Precision Rating :
P0 P2 P4 P5 P6
Seals Type :
OPEN
Number of Row :
Double row, Double
Place of Origin :
Shandong, China
Material :
Chrome Steel GCr15
Cage material :
Steel/ Copper/ Nylon
Lubrication :
Grease or Oil Lubricated
Feature :
Long Life Low Noise
Service :
OEM Customized Services
Size :
Standard Size
Weight :
0.18-1.15kg
Warranty :
1 Year
Packaging Details :
1.Single wooden case+Pallet
2.Plastic Sleeve Packing+Carton+Pallet
3.Single Box+Cartons+Pallet
4.As customer request
MOQ :
100 sets
Price :
$16.43/sets 100-999 sets
Description
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Product Description

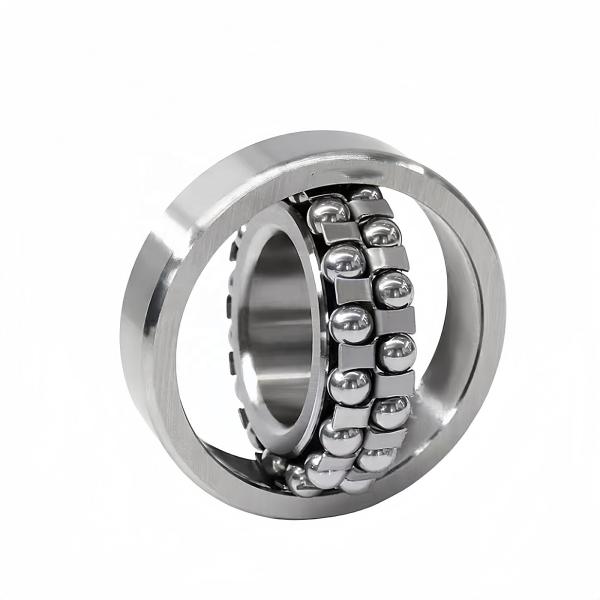

In a self-aligning bearing, the inner ring has two raceways and the outer ring has a single spherical raceway with its center of curvature coincident with the bearing axis. Self-Aligning Double Row Ball Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection. The concave raceway of the outer ring in combination with two rows of balls operate over a wide range of contact angles.
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Cage Material Types: Iron Cage/ M Brass Cage/ TN-9 Nylon Cage
Dimensions(mm)
Basic Load Rating(kn)
Speed(r/min)
Weight(kg)
Model
d
D
C
dynamic
static
reference
reference
20
47
14
12.7
3.4
9000
0.18
11204ETN9
25
52
15
14.3
4
8000
0.22
11205ETN9
30
62
16
15.6
4.65
6700
0.35
11206TN9
35
72
17
15.9
5.1
5600
0.54
11207TN9
40
80
18
19
6.55
5000
0.72
11208TN9
45
85
19
21.6
7.35
4500
0.77
11209TN9
50
90
20
22.9
8.15
4300
0.85
11210TN9
60
110
22
30.2
11.6
3400
1.15
11212TN9
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
Ball Bearing 11204 11205 11206 11207 11208 11209 11210 11211 11212 for Performance
