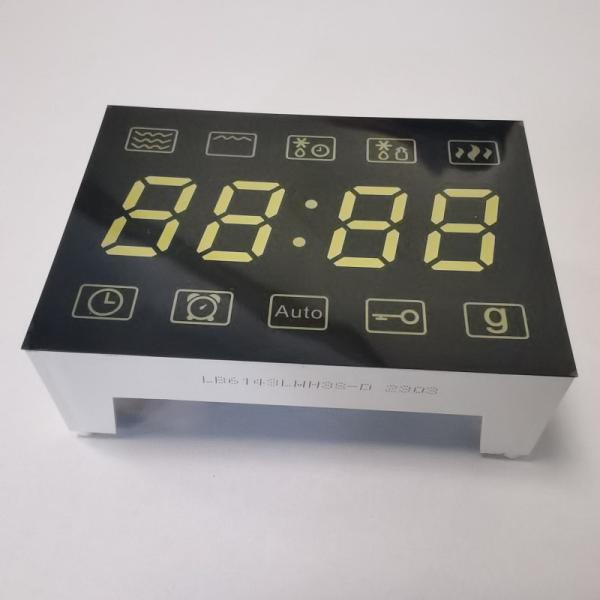

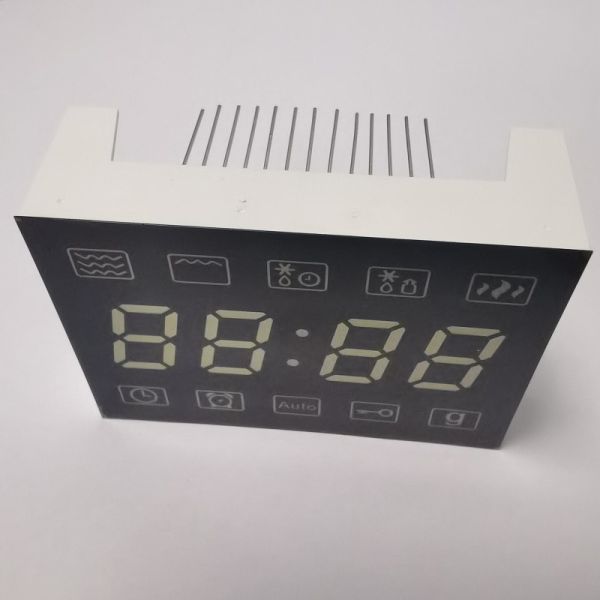

Common Anode Microwave 7 Segment LED Display 4 Digit Ultra Bright White
Common Anode Microwave 7 Segment LED Display 4 Digit Ultra Bright White
Common Anode Microwave 7 Segment LED Display 4 Digit Ultra Bright White
Common Anode Microwave 7 Segment LED Display 4 Digit Ultra Bright White
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB6143IWH3S-D
Certification :
ISO9001&RoHS
Place of Origin :
Shenzhen，china
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT in advance
Supply Ability :
50000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Character Height :
0.49"
Lifespan :
30000hrs
Face Colour :
Yellow segments black face
Pcb Polarity :
Common Anode
Specifications :
61*43*20mm
Type :
7 Segment Led Display
Description
Ultra Bright White 4-Digit Common Anode LED Display
High-performance microwave 7-segment LED display featuring ultra bright white illumination and common anode configuration for industrial applications.
Key Specifications
Package Dimensions 61 × 43 × 20mm
Character Height 0.49 inch
Face Color Black
Polarity Common Anode
Emitting Color Ultra Bright White
Operating Temperature Max. +105°C ~ 120°C
Pin Type SMD
Common Anode Microwave 7 Segment LED Display 4 Digit Ultra Bright White Common Anode Microwave 7 Segment LED Display 4 Digit Ultra Bright White
Technical Parameters by Color Code
Yellow Green (Code: J/JU)
Vibrant yellow-green display designed to enhance visual aesthetics with optimal brightness and clarity.
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.4 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 30 - 40 mcd
Wavelength Dλ If=10mA 569 - 574 nm
Amber/Yellow (Code: Y)
Warm amber/yellow hue providing excellent visibility with comfortable viewing experience.
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.5 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 60 - 80 mcd
Wavelength Dλ If=10mA 585 - 595 nm
Ultra Bright White (Code: WH)
Premium white display offering exceptional clarity and sophisticated appearance for high-end applications.
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 - 3.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 120 - 140 mcd
LED Color Temperature K If=10mA 5500 20 6800 K
Absolute Maximum Ratings (Ta=25°C)
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40 ~ +85 °C
Storage Temperature Range Tstg -40 ~ +85 °C
Solder Temperature (≤3 seconds) Th 260 °C
Manufacturer Profile
Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. As an ISO 9001:2015 certified manufacturer with over 15 years of experience, we specialize in innovative LED display technology and custom solutions that enhance competitive advantages in global markets.
Applications
Our 7-segment LED displays are engineered for seamless integration into various applications including household appliances, temperature and humidity monitoring systems, refrigerator controllers, thermostats, and HVAC systems. These displays combine advanced technology with elegant design for outstanding performance and reliability.
Common Anode Microwave 7 Segment LED Display 4 Digit Ultra Bright White
Frequently Asked Questions
Are you a trading company or manufacturer?
We are an original manufacturer with over 20 years of experience in optoelectronic LED displays.
What is your minimum order quantity (MOQ)?
Our standard MOQ is 1000 pieces, but we accept sample orders and smaller quantities.
Can I get samples for testing?
Yes, we provide 5-10 free samples for testing, with freight costs borne by the customer.
What is your delivery time?
Standard delivery is 10-20 days. Urgent orders with available materials can be completed in 7-10 days.
Do you offer custom design services?
Yes, we provide comprehensive OEM & ODM services with customization of sizes, LED colors, and functional icons.
How do you ensure product quality?
As ISO 9001 certified manufacturers, we conduct twice 100% testing on all products before shipment.
