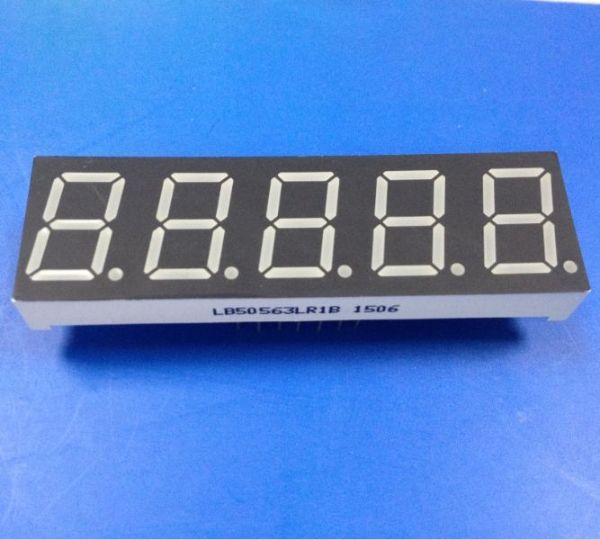

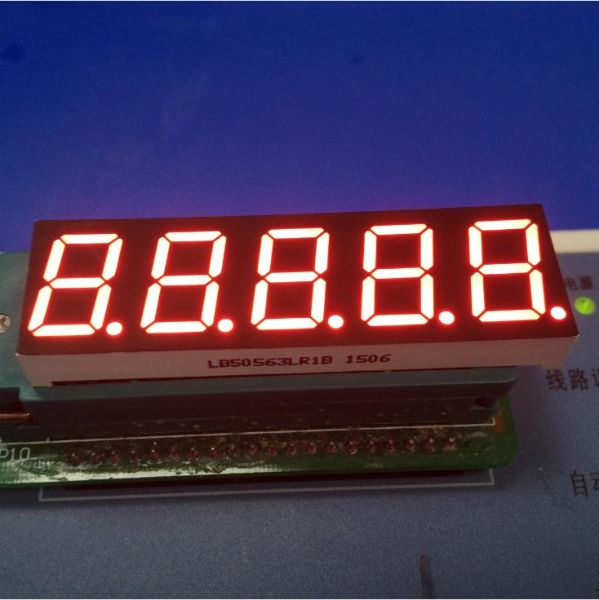

Common Anode Super Bright Red 14.2mm 5 Digit 7 Segment LED Display
Common Anode Super Bright Red 14.2mm 5 Digit 7 Segment LED Display
Common Anode Super Bright Red 14.2mm 5 Digit 7 Segment LED Display
Common Anode Super Bright Red 14.2mm 5 Digit 7 Segment LED Display
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB50563IR1B
Certification :
ISO9001&RoHS
Place of Origin :
Shenzhen，china
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT in advance
Supply Ability :
50000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Life Time :
more than 6 years
Surface :
white segments black surface
Package Dimension :
63*19*8mm
Features :
Low Power Consumption, High Brightness, Easy to Read
Pcb Polarity :
Common Anode
Life Span :
100000 hours
Description

Product Description

Super bright red 14.2mm 5 Digit 7 Segment LED Display Common Anode for digital indicator

  • Absolute Maximum Ratings(Ta=25ºC)

    Parameter Symbol Ratings Unit
    Forward Current(per dice) Ipm 20 mA
    Reverse Voltage(per dice) Vr 5 V
    Power Dissipation(per dice) Pm 80 mW
    Operating Temperature Range Topr -40~+85 ºC
    Storage Temperature Range Tstg -40~+85 ºC
    Solder Temperature(≤3 seconds) Th 260 ºC

    Code:Super Bright Red -R

    Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 1.8 2.2 V
    Reverse Voltage Vr Ir=10uA 5 V
    Luminous Intensty Iv If=10mA 50 60 mcd
    Spectrum With Of Half Value △λ If=10mA 20 nm
    Wavelength Dλ If=10mA 630 635 nm

    Code:Ultra Bright Red -UR

    Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 1.8 2.2 V
    Reverse Voltage Vr Ir=10uA 5 V
    Luminous Intensty Iv If=10mA 90 100 mcd
    Spectrum With Of Half Value △λ If=10mA 20 nm
    Wavelength Dλ If=10mA 620 625 nm

    Code:Ultra Bright Blue -BH

    Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 2.6 3.0 V
    Reverse Voltage Vr Ir=10uA 5 V
    Luminous Intensty Iv If=10mA 100 120 mcd
    Spectrum With Of Half Value △λ If=10mA 20 nm
    Wavelength Dλ If=10mA 460 470 nm

  • Specifications:

  • Display: 5 digit, 0.56 inch 7 segment led display

  • Charcter height: 14.2mm (0.56 inch)

  • Outer dimensions: 63*19*8mm

  • white segments black surface

  • With common anode

  • Emitting color: super bright red

  • Luminous intensity: 50-60 mcd

  • Forward voltage: 1.8-2.2V/led

  • Forward current:5-10mA/led

  • Colors: red, blue, yellow green, pure green, amber, orange and pure white

  • High luminous intensity and reliability

  • Low power consumption

  • Extremely low current

  • Stable performance

  • Long lifespan

  • Easy-to-assemble

  • IC compatible

  • Meet RoHS Compliant

  • Application of Segment LED Displays

    -- Audio Equipment or instrument panels;

    -- General using for digital indicators;

    -- Multimedia products;

    -- Bank exchange rate display;

    -- LED clock display;

    -- Display for gas station and other various display areas of equipment/machine.
