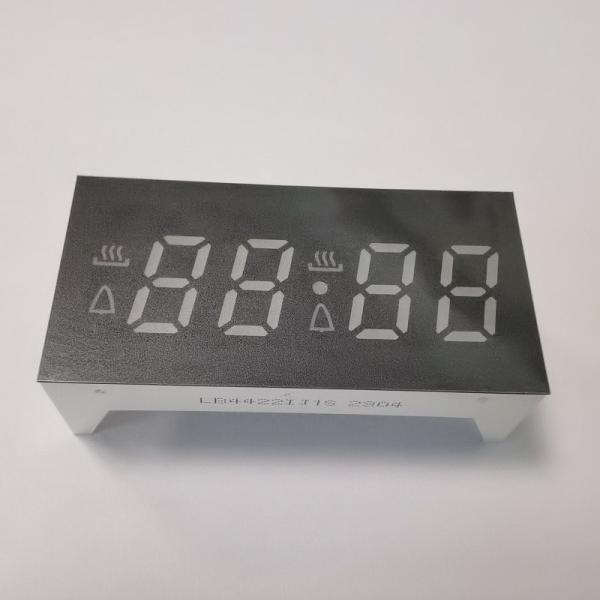

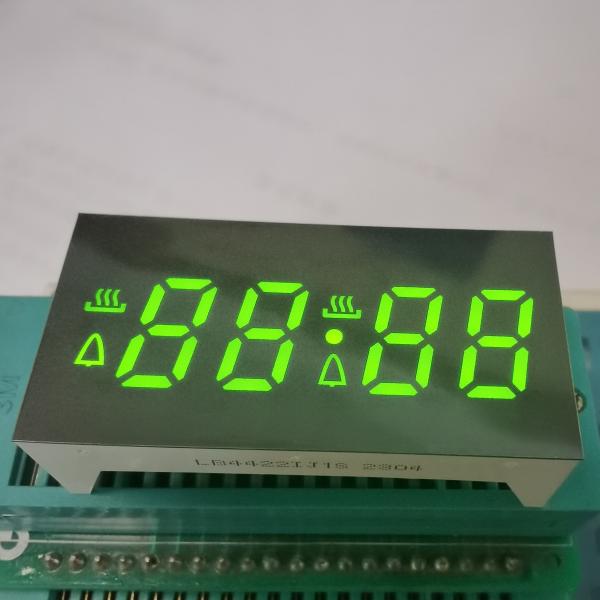

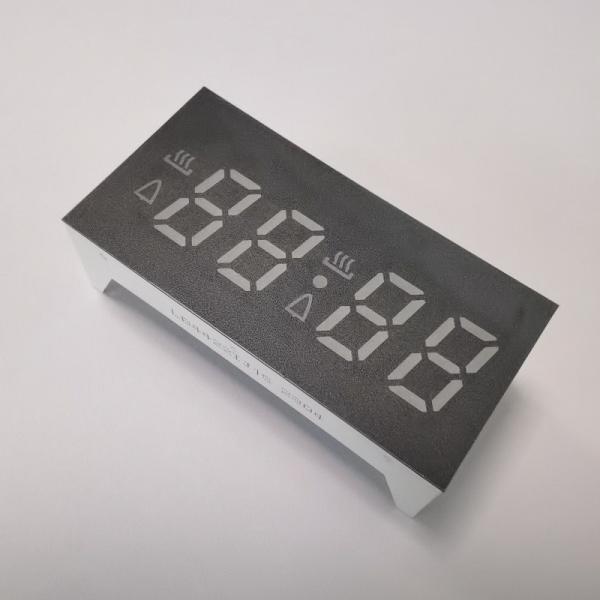

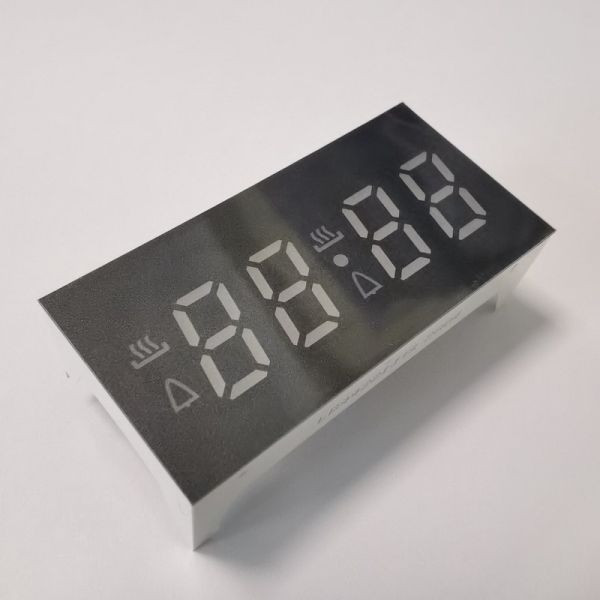

4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker
4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker
4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker
4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker
4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker
4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker
Specifications
Reverse Current :
<0.3mA
Package Dimensions :
50*19*8mm
Pcb Polarity :
Common Anode
Description :
low power consumption,
Forward Voltage :
1.8-2.2V
Character :
enviromental protection epoxy
Quality :
High quality
Panel Size :
40.18*12.8*7mm
Digit_Height :
0.28 inch to 2.3 inch
Package Dimension :
44 x 22 mm
Application :
Indoor, Led segment display
Features :
Competitive Price with high quality
Brand Name :
LIGHT-BO
Model Number :
LB4422LJ1S
Certification :
ISO9001&RoHS
Place of Origin :
SHENZHEN，CHINA
MOQ :
1000
Price :
Negotiate
Payment Terms :
T/T,Western Union
Supply Ability :
20000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Charater Height :
9.92mm (0.38")
Response_Time :
≤ 10 microseconds
Tube Chip Color :
Full Color,Red,Green,white,Blue
Packing Size :
43.5 x 14.0 x 7mm
Advantage :
Prompt delovery,Stable quality
Pin Type :
DIP
Segment Type :
Common Cathode
Egment Color :
Micky white or as same as emitting color
Description
4 Digit 7 Segment LED Display - Super Bright Green Common Cathode for Gas Cooker
Super bright Green 4 Digit 7 Segment LED Display with Common Cathode configuration, specifically designed for gas cooker applications.
Product Specifications
Package Dimensions 44 x 22 mm
Character Height 9.92mm (0.38")
Face Colour Black
Polarity Common Cathode
Emitting Colour Super Bright Green
Operating Temperature Max. +105°C ~ 120°C
Pin Type SMD
Key Features
  • High luminous intensity
  • Low power consumption
  • Stable performance
  • Good consistency
  • Large viewing angle
  • Long lifetime
  • IC compatible
  • Withstands environment temperature +105°C - 120°C
  • RoHS/REACH Compliant
  • Available in multiple colors: red, blue, green, white, amber, orange
4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker 4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker
Technical Parameters
Yellow Green (Code: J/JU)
Vibrant yellow green display option offering excellent visibility and aesthetic appeal for various applications.
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.4 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 30 - 40 mcd
Wavelength Dλ If=10mA 569 - 574 nm
Amber/Yellow (Code: Y)
Warm amber/yellow hue providing excellent visibility with a comfortable glow.
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.5 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 60 - 80 mcd
Wavelength Dλ If=10mA 585 - 595 nm
Orange (Code: F)
Energetic orange color offering high visibility and visual impact.
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.4 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 60 - 80 mcd
Wavelength Dλ If=10mA 600 - 605 nm
Super Bright Red (Code: R)
High-intensity red display for maximum visibility and attention-grabbing applications.
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 50 - 60 mcd
Wavelength Dλ If=10mA 630 - 635 nm
Ultra Bright Red (Code: UR)
Maximum brightness red display for applications requiring superior visibility.
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 80 - 100 mcd
Wavelength Dλ If=10mA 625 - 635 nm
Pure Green
Crisp green display ideal for eco-friendly designs and applications requiring natural appeal.
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 - 3.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 120 - 180 mcd
Wavelength Dλ If=10mA 515 - 525 nm
Ultra Bright Blue (Code: BH)
Modern blue display offering contemporary aesthetic with excellent visibility.
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 - 3.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 120 - 140 mcd
Wavelength Dλ If=10mA 460 - 465 nm
Ultra Bright White (Code: WH)
Pure white display offering exceptional clarity and sophisticated appearance.
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 - 3.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 120 - 140 mcd
LED Color Temperature K If=10mA 5500 20 6800 K
Absolute Maximum Ratings (Ta=25°C)
Performance specifications ensuring optimal reliability under demanding conditions.
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 °C
Storage Temperature Range Tstg -40~+85 °C
Solder Temperature (≤3 seconds) Th 260 °C
Manufacturer Information
Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we deliver innovative, high-quality LED display solutions with unwavering commitment to excellence and customer satisfaction.
Applications
4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker
Our 7 Segment LED Displays are engineered for diverse applications including household appliances, temperature and humidity displays, refrigerator controllers, thermostats, and HVAC systems. These displays combine superior performance with modern design aesthetics.
Certifications
4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker
Company Overview
4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker 4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker 4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker 4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker
Company Exhibitions
4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker 4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker
Shipping Methods
4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker 4 Digit 7 Segment LED Display Super Bright Green Common Cathode for Gas Cooker
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.
Q2: What are your main products?
A: Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through hole LEDs, SMD LEDs, and LED Backlights.
Q3: What is your MOQ?
A: Our MOQ is 1000 pieces. We also accept sample orders and small orders with quantities less than our MOQ.
Q4: Can I get samples for testing before placing an order?
A: Yes. We can provide 5-10 free samples for testing, but the freight cost will be borne by the customer.
Q5: How long is your delivery time?
A: Delivery time is approximately 10-20 days, depending on order quantity and raw material availability. For urgent orders with materials in stock, we can complete production within 7-10 days.
Q6: What are your payment terms?
A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.
Q7: Can you quote FOB prices?
A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, and DDP.
Q8: How can I get your catalog and price list?
A: Please provide your email address or contact us directly through our website for our catalog and price list.
Q9: Can I negotiate prices?
A: Yes, we may consider discounts for bulk orders.
Q10: How much are the shipping charges?
A: Shipping charges depend on shipment size and shipping method. We will provide charges based on your requirements.
Q11: Can you do custom design products?
A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.
Q12: If I send my design, will you keep it confidential?
A: Yes, we will not show or sell your design to others without your authorization.
Q13: What is the sample lead time for customized products?
A: Sample lead time is approximately 20-25 working days after receiving mold cost and mold drawing approval from customers.
Q14: What are your shipping methods?
A: We typically ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.
Q15: How do you ensure product quality?
A: We are ISO 9001 QMS certified manufacturers with over 20 years of experience. We conduct twice 100% testing of all products before shipment.
