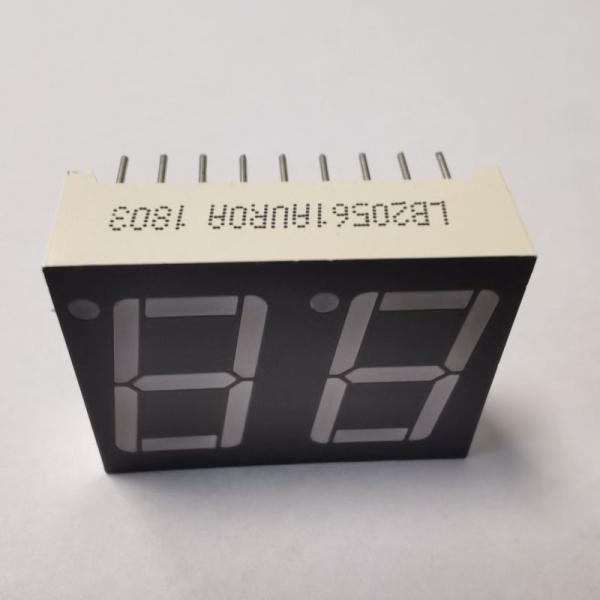

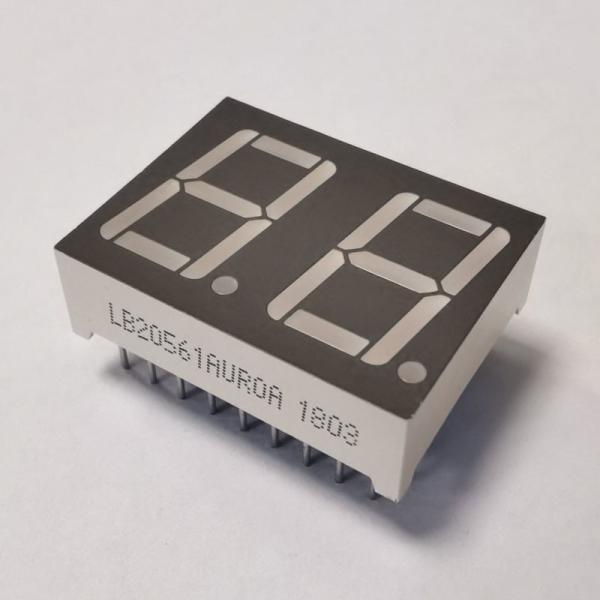

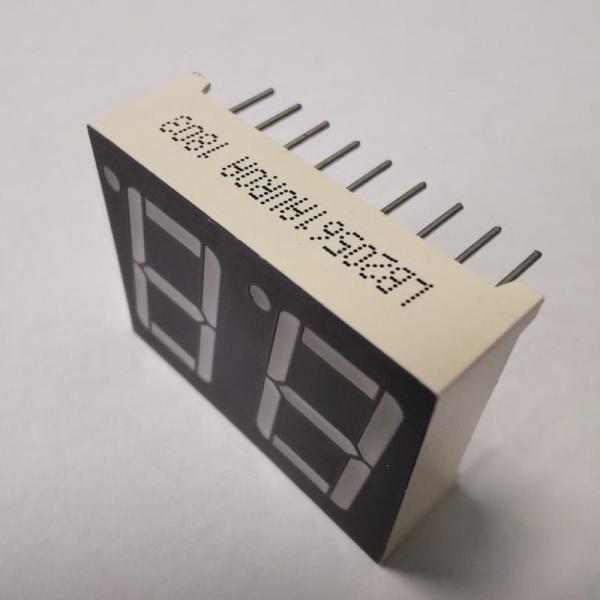

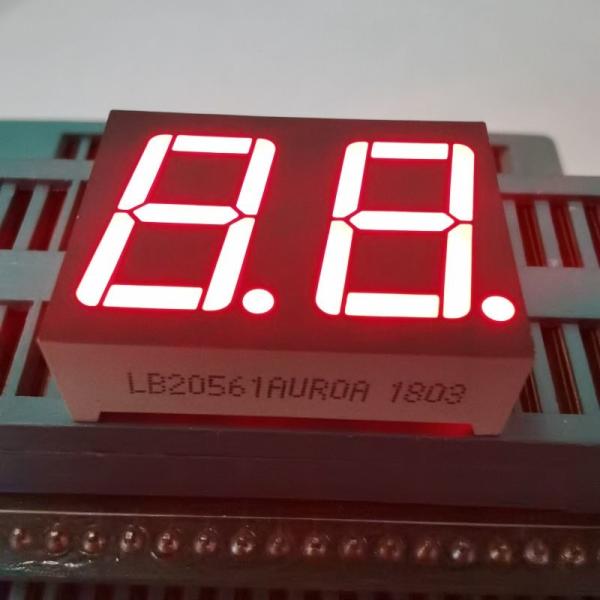

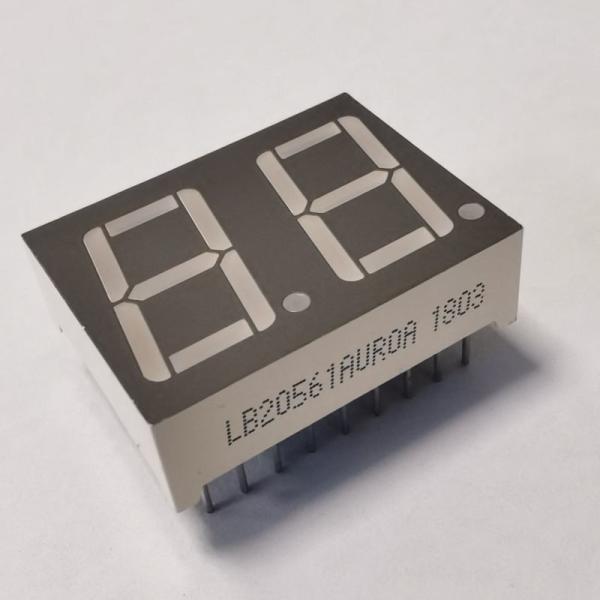

Common Cathode Ultra Bright Red 7 Segment LED Display 18 Pin 2 Digit 0.56inch
Common Cathode Ultra Bright Red 7 Segment LED Display 18 Pin 2 Digit 0.56inch
Common Cathode Ultra Bright Red 7 Segment LED Display 18 Pin 2 Digit 0.56inch
Common Cathode Ultra Bright Red 7 Segment LED Display 18 Pin 2 Digit 0.56inch
Common Cathode Ultra Bright Red 7 Segment LED Display 18 Pin 2 Digit 0.56inch
Common Cathode Ultra Bright Red 7 Segment LED Display 18 Pin 2 Digit 0.56inch
Common Cathode Ultra Bright Red 7 Segment LED Display 18 Pin 2 Digit 0.56inch
Common Cathode Ultra Bright Red 7 Segment LED Display 18 Pin 2 Digit 0.56inch
Common Cathode Ultra Bright Red 7 Segment LED Display 18 Pin 2 Digit 0.56inch
Common Cathode Ultra Bright Red 7 Segment LED Display 18 Pin 2 Digit 0.56inch
Common Cathode Ultra Bright Red 7 Segment LED Display 18 Pin 2 Digit 0.56inch
Common Cathode Ultra Bright Red 7 Segment LED Display 18 Pin 2 Digit 0.56inch
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB20561DUR0A
Certification :
ISO9001&RoHS
Place of Origin :
Shenzhen, China
MOQ :
1000
Price :
Negotiate
Payment Terms :
T/T,Western Union
Supply Ability :
50000 PCS/Day
Delivery Time :
15-20 days
Packaging Details :
EPE+carton
LED Color :
Ultra Bright red
Polarity :
Common Cathode
Digit height :
0.56 inch
Oem :
Yes
Operating temperature :
-45-80℃
Didits :
2
Outer dimensions :
25*19*8mm
Application :
Temperature Indicator
Description

Common Cathode Ultra Bright Red 7 Segment LED Display 18 Pin 2 Digit 0.56inch

  • Customized dual digit 7 segment led display

  • White segments black surface

  • Wavelength:620-625nm

  • Luminous intensity: 80-100mcd

  • Forward voltage: 1.8-2.2V/led

  • Foward current:5-10mA/led

  • High luminous intensity

  • Low power consumption

  • Extremely low current

  • Stable performance

  • Fast heat-dissipation

  • IC Compatible

  • Meet RoHS Compliant

Absolute Maximum Ratings(Ta=25ºC)​

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature(≤3 seconds) Th 260 ºC

Code:Ultra Bright Red -UR

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 80 100 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 625 635 nm

APPLICATIONS:
Widely used for temperature controllers and digital indicators,home appliances,instrument panels and so on.
