Specifications
Brand Name :
LIGHTBO
Model Number :
LB10391BR0A
Certification :
ISO9001&ROHS
Place of Origin :
SHENZHEN，CHINA
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT , Western Union
Supply Ability :
50000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Tube Chip Color :
Single Color
Transport Package :
EPE+Carton
LED Color :
Super Bright Red
Description

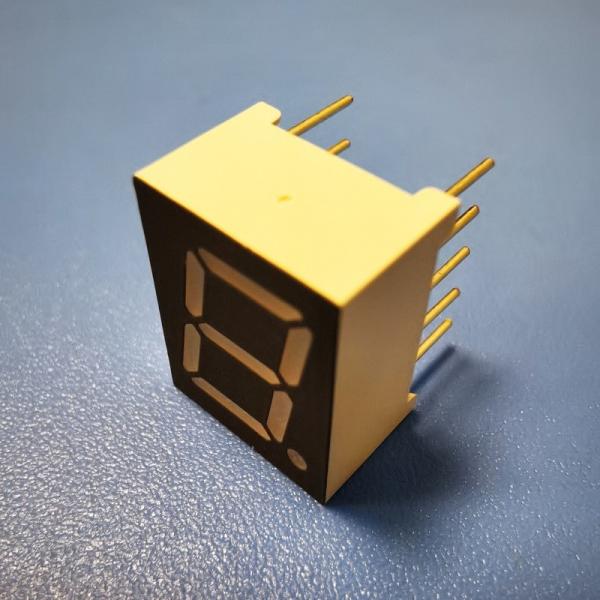

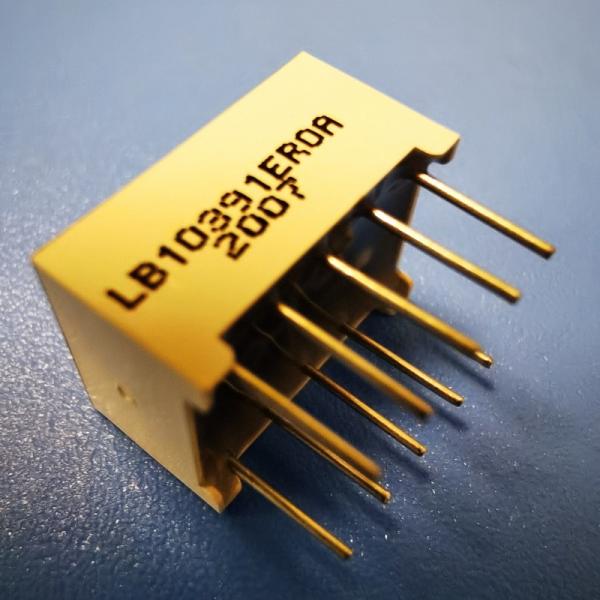

LED Display Common Anode Super Bright Red Single Digit 0.39inch 7 Segment for Instrument Panel

Product Descriptions:
Package dimension:10*13*7mm
Character height:9.9mm( 0.39 inch)
Polarity:Common cathode
Colour:Super Bright Red
Face Colour:Black/Grey
Wavelength:630-635nm
Luminous intensity:50-60mcd/dice
Forward voltage:1.8-2.2V/led
Emitting colors: red, blue, yellow green, pure green,white, amber, orange, and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature(≤3 seconds) Th 260 ºC

Code:Yellow Green- J

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 30 40 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 569 574 nm

Code:Amber/Yellow -Y

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.5 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 60 80 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 585 595 nm

Code:Orange -F

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 60 80 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 600 605 nm

Code:Super Bright Red -R

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 630 635 nm

Code:Ultra Bright Red -UR

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 80 100 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 625 635 nm

Code:Pure Green -G

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 120 180 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 515 525 nm

Code:Ultra Bright Blue -BH

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 120 140 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 460 465 nm

Code:Ultra Bright White -WH

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 120 140 mcd
LED color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32 0.30,0.33 nm

Product Features:
OEM and ODM orders are accepted
High luminous intensity and reliability
Big viewing angle
Stable performance
Long lifetime
Easy assembly
IC Compatible
RoHS directive-compliant

Applications:
Widely used for audio equipments or instrument panels, digital indicators and numeric displays ,digital clock indicators,digital counters, digital read-out display panels and so on .
