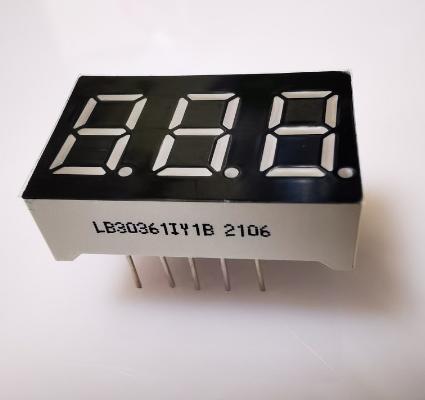

7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter
7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter
7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter
7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter
7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter
7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter
7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter
7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter
7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter
7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter
7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter
7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB30361IY1B
Certification :
ISO9001&RoHS
Place of Origin :
Shenzhen, China
MOQ :
1000
Price :
Negotiate
Payment Terms :
T/T, Western Union,
Supply Ability :
20000 PCS/Day
Delivery Time :
10-15 days
Packaging Details :
EPE+CARTON
Packing :
EPE + Carton
Type :
Character
Specification :
22.5*14*7.2MM
Transport Package :
EPE + Carton
Forward Voltage :
1.8-2.2V/LED
Forward Current :
5-10mA/LED
Description

7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter

Character height: 0.36"( 9.2mm)

Outer dimensions: 22.5*14*7.2 mm

Polarity: Common anode

White Epoxy black surface

Super bright amber
585-595nm
50-60mcd
Forward voltage: 1.8-2.2V/led
Forward current:5-10mA/led
Emitting colours: red, blue, green, white, amber, orange and yellow

Main Product Image

7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter

7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter


Absolute Maximum Ratings(Ta=25ºC)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature(3 sec) Th 260 ºC


Code:R-Ultra bright white

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8 2.2 V
Reverse Voltage(Per dice) Vr Ir=10uA 5 V
Luminous Intensty(Per dice) Iv If=20mA 50 60 mcd
Spectrum With Of Half Value λ If=20mA 20 nm
Wavelength If=20mA 630 635 nm
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC

Detail Image

7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter

7 Segment 3 Digit 9.2mm Super Bright Amber LED Display Common Anode for Panel Meter

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on
