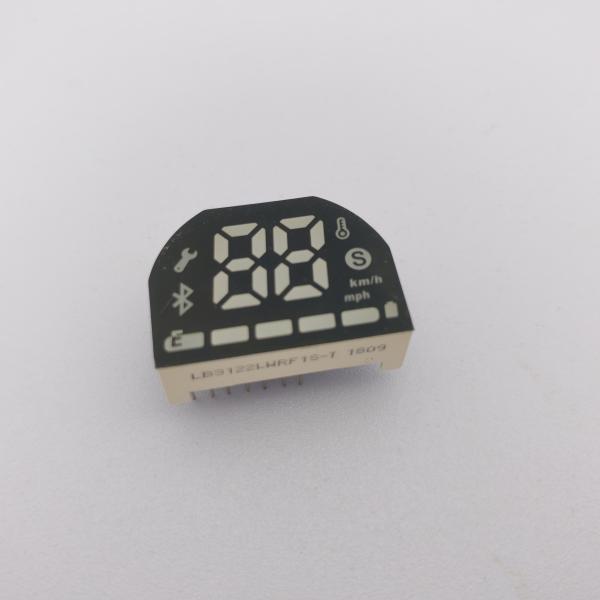

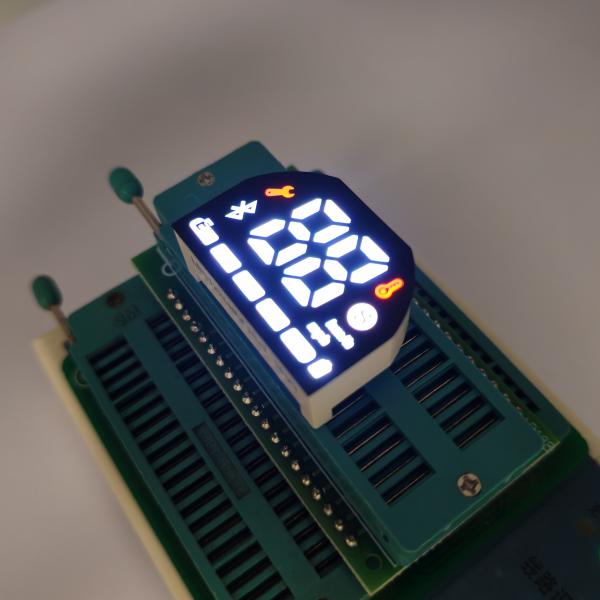

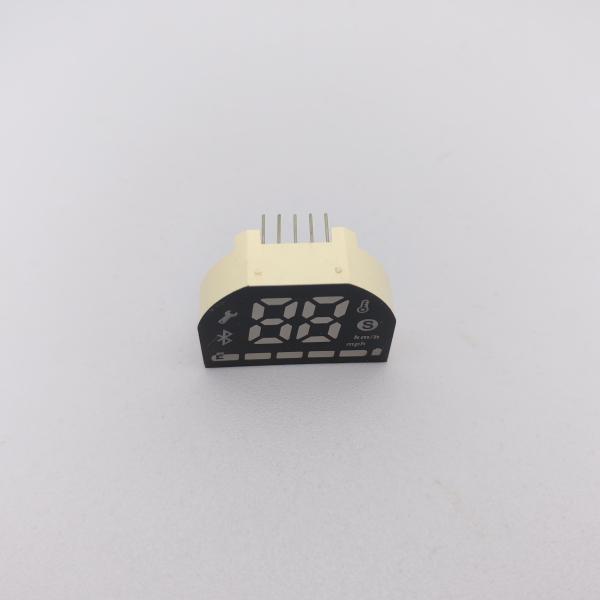

Customized common anode 7 Segment LED Display for Electric Scooter
Customized common anode 7 Segment LED Display for Electric Scooter
Customized common anode 7 Segment LED Display for Electric Scooter
Customized common anode 7 Segment LED Display for Electric Scooter
Customized common anode 7 Segment LED Display for Electric Scooter
Customized common anode 7 Segment LED Display for Electric Scooter
Specifications
Chip Brand :
Epistar
Package Dimension :
78*19mm
Emitting Color :
Ultra bright amber
Operating Temperature :
-40~105 ℃
Display Function :
Video
Tube Chip Color :
full color
Tradecolor Term :
EXW
Led Brand :
EPISTAR
Weight :
8kg/m²
Delivery Term :
Ex-work/FOB/CIF/DDU
Dimensions :
31*22.1*11MM
Digits :
8
Supplier Type :
ODM, OEM, original manufacturer,
Digit Height :
12.7mm (0.5inch)
Screen Dimention :
customized Size/Curve
Color Configuration :
1R1G1B
Brand Name :
LIGHT-BO
Model Number :
LB3122IWRF1S-T
Certification :
ISO9001&RoHS
Place of Origin :
SHENZHEN，CHINA
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT in advance
Supply Ability :
50000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Lifespan :
100,000 hours
Brightness :
1000-5000 nits
Operating Voltage :
AC 110-240V
Character Height :
12.88MM
Description
Custom Common Anode 7 Segment LED Display for Electric Scooters
Customized 7-segment LED displays specifically designed for electric scooter applications, offering superior readability and durability.
Product Specifications
Digit Height 12.88mm (0.25, 0.36, 0.39...5.0 inch options available)
Color Options White, Red, Orange, Blue, Pure Green, Yellow-Green, and more
Dimensions 31*22.1*11mm (custom sizes supported)
Polarity Common Anode
Lifespan 80,000 hours
Free Samples Available
Sample Lead Time 5-7 working days (15-20 days for tooling samples)
Production Lead Time 15-20 working days (based on order quantity)
OEM & ODM Supported (based on customer drawings or concepts)
LOGO Printing Available (based on customer specifications)
Minimum Order Quantity 1,000 PCS (100-500 PCS accepted for initial orders)
Key Features
Superior Optical Performance
High forward voltage design delivers exceptional luminous intensity with uniform light distribution across all segments for perfect readability.
Energy Efficient Operation
Ultra-low power consumption design with minimal operating current requirements.
Robust Construction & Reliability
Industrial-grade components built to standard dimensions, maintaining stable performance in demanding environments with outstanding visibility under bright ambient lighting.
Long-Term Durability
Extended operational lifespan with full compliance to RoHS and REACH environmental standards.
Technical Parameters
Yellow Green (J/JU)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.4 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 30 - 40 mcd
Spectrum Width of Half Value △λ If=10mA - 20 - nm
Wavelength Dλ If=10mA 569 - 574 nm
Amber/Yellow (Y)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.5 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 60 - 80 mcd
Spectrum Width of Half Value △λ If=10mA - 20 - nm
Wavelength Dλ If=10mA 585 - 595 nm
Orange (F)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.4 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 60 - 80 mcd
Spectrum Width of Half Value △λ If=10mA - 20 - nm
Wavelength Dλ If=10mA 600 - 605 nm
Super Bright Red (R)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 50 - 60 mcd
Spectrum Width of Half Value △λ If=10mA - 20 - nm
Wavelength Dλ If=10mA 630 - 635 nm
Ultra Bright Red (UR)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 80 - 100 mcd
Spectrum Width of Half Value △λ If=10mA - 20 - nm
Wavelength Dλ If=10mA 625 - 635 nm
Pure Green
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 - 3.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 120 - 180 mcd
Spectrum Width of Half Value △λ If=10mA - 20 - nm
Wavelength Dλ If=10mA 515 - 525 nm
Ultra Bright Blue (BH)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 - 3.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 120 - 140 mcd
Spectrum Width of Half Value △λ If=10mA - 20 - nm
Wavelength Dλ If=10mA 460 - 465 nm
Ultra Bright White (WH)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 - 3.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 120 - 140 mcd
LED Color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32 - 0.30,0.33 nm
Absolute Maximum Ratings (Ta=25ºC)
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature (≤3 seconds) Th 260 ºC
About Manufacturer
SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, we are an ISO 9001:2015 certified manufacturer with over 15 years of OEM and ODM expertise in optoelectronic LED displays. We specialize in providing outstanding, cost-effective custom solutions that help clients reduce expenses while enhancing competitive advantage.
Applications
Customized common anode 7 Segment LED Display for Electric Scooter
Our 7-segment LED displays, customized LED displays, numeric LED displays, and dot matrix LED displays are used in various applications including home appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and comprehensive heating and cooling systems.
Certifications
Customized common anode 7 Segment LED Display for Electric Scooter
Manufacturing Facilities
Customized common anode 7 Segment LED Display for Electric Scooter Customized common anode 7 Segment LED Display for Electric Scooter Customized common anode 7 Segment LED Display for Electric Scooter Customized common anode 7 Segment LED Display for Electric Scooter
Company Exhibitions
Customized common anode 7 Segment LED Display for Electric Scooter Customized common anode 7 Segment LED Display for Electric Scooter
Shipping Methods
Customized common anode 7 Segment LED Display for Electric Scooter Customized common anode 7 Segment LED Display for Electric Scooter
We ship via DHL, FEDEX, UPS, EMS, by air, or by sea based on customer preference.
Frequently Asked Questions
Are you a trading company or manufacturer?
We are an original manufacturer with over 20 years of experience in optoelectronic LED displays.
What are your main products?
Our main products include 7-segment LED displays, SMD LED displays, dot matrix LED displays, arrow LED displays, custom design LED displays, LED light bars, through-hole LEDs, SMD LEDs, and LED backlights.
What is your MOQ?
Our MOQ is 1,000 PCS, but we accept sample orders and small orders of 100-500 PCS for initial orders.
Can I get samples for testing before placing an order?
Yes, we provide 5-10 free samples for testing, with freight costs borne by the customer.
What is your delivery time?
Delivery time is 10-20 days based on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.
What are your payment terms?
We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.
Can you provide FOB prices?
Yes, we quote prices based on incoterms EXW, FOB, CIF, and DDP.
How can I get your catalog and price list?
Please provide your email address or contact us directly through our website.
Can I negotiate prices?
Yes, we consider discounts for bulk orders.
How much are shipping charges?
Shipping charges depend on shipment size and method. We provide quotes upon request.
Can you do custom design products?
Yes, OEM & ODM services are available. We customize sizes, LED colors, and functional icons according to requirements.
If I send my design, will you keep it confidential?
Yes, we will not show or sell your design to others without authorization.
What is the sample lead time for customized products?
Sample lead time is 20-25 working days after receiving mold cost and mold drawing approval.
How do you ensure product quality?
As ISO 9001 certified manufacturers with over 20 years of experience, we conduct twice 100% testing of all products before shipment.
Product Images
Customized common anode 7 Segment LED Display for Electric Scooter Customized common anode 7 Segment LED Display for Electric Scooter Customized common anode 7 Segment LED Display for Electric Scooter
Our company offers a comprehensive range of LED display solutions, including LED segment displays, dot-matrix LED displays, LED display modules, and classic 7-segment LED displays.
