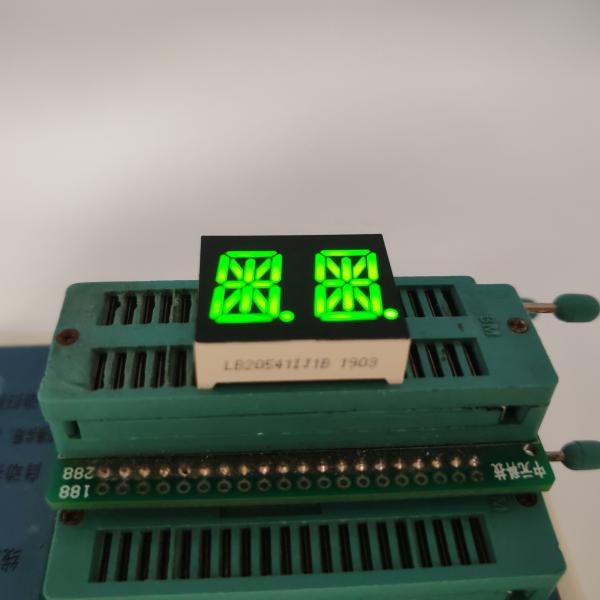

Pure Green Black Face Alphanumeric LED Display 2 Digit 13.8mm 14 Segment
Pure Green Black Face Alphanumeric LED Display 2 Digit 13.8mm 14 Segment
Pure Green Black Face Alphanumeric LED Display 2 Digit 13.8mm 14 Segment
Pure Green Black Face Alphanumeric LED Display 2 Digit 13.8mm 14 Segment
Pure Green Black Face Alphanumeric LED Display 2 Digit 13.8mm 14 Segment
Pure Green Black Face Alphanumeric LED Display 2 Digit 13.8mm 14 Segment
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB20541IJ1B
Certification :
ISO9001&RoHS
Place of Origin :
SHENZHEN，CHINA
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT in advance
Supply Ability :
50000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Digit Height :
0.54 inch
Interface Type :
Common Anode
Storage Temperature :
-40 to 85 degrees Celsius
Feature :
Fast heat-dissipation,Low power
Reverse Voltage :
5 V
Quality :
industrial high quality
Description

Pure Green Black Face Alphanumeric LED Display 2 Digit 13.8mm 14 Segment

Key Specifications/Special Features:

14-segment 0.54-inch 2-digit LED alphanumeric display

Character height: 0.54 inch (13.8mm)

Outer dimensions: 25.2 x 21.1 x 7.8 mm

Made with white segments and black surface

Common anode

Pure Green

515-525nm

Luminous intensity: 120-160mcd

Forward voltage: 2.5-3.0V/led

Forward current:5-10mA/led

Color: Available in red, yellow green,pure green, blue and white,amber, orange

Code:Ultra Bright White -WH

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 3.0 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 120 140 mcd
LED color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32 0.30,0.33 nm

Color:Pure Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.5 3.0 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=20mA 120 160 mcd
Spectrum With Of Half Value λ If=20mA 20 nm
Wavelength Dλ If=20mA 515 525 nm

Code:Yellow Green- J/JU

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 30 40 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 569 573 nm

Code:Amber/Yellow -Y

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 585 595 nm

Code:Orange -F

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 600 605 nm

Code:Super Bright Red -R

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 630 635 nm

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120 ℃
Storage Temperature Range Tstg -40~+120 ℃
Solder Temperature(3 sec) Th 260 ℃

Key Features:

High-efficiency display with uniform segment luminosity

Ultra-low power consumption & minimal current draw

Industrial-standard sizing for seamless integration

Exceptional stability & extended operational lifespan

Simplified assembly process for quick installation

Superior readability in bright ambient conditions

Compliant with RoHS environmental standards

Wide operating range: -35°C to +85°C

Applications:

Audio equipment or instrument panels

General use for digital indicators

Multimedia products
