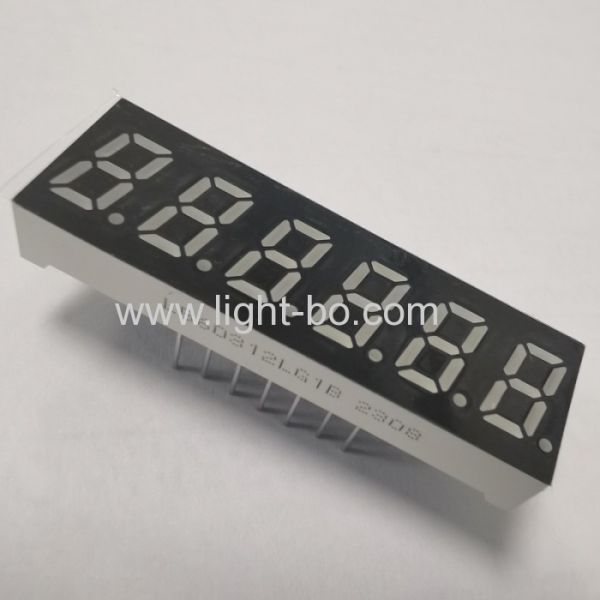

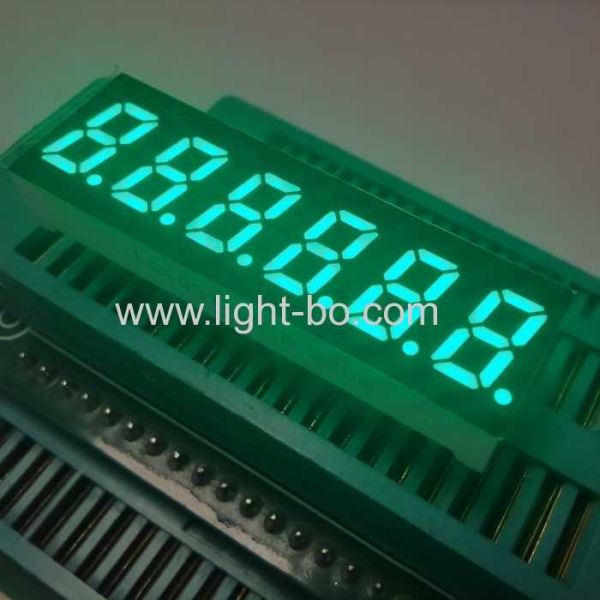

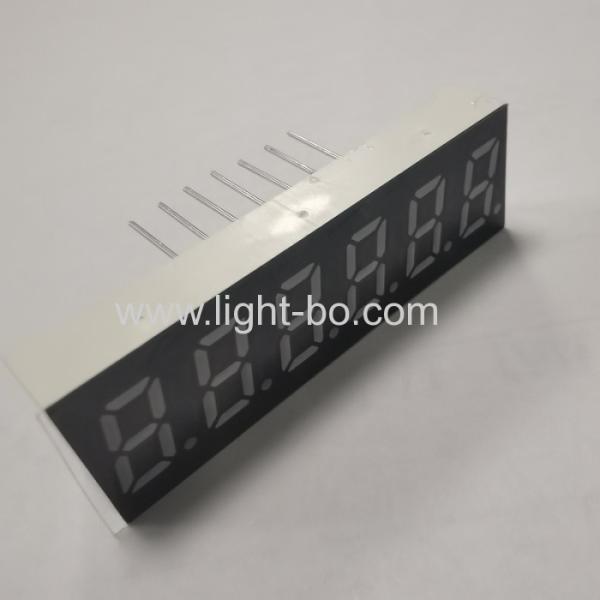

Green Small Size 6 Digit 7 Segment LED Display Common Cathode for Frequency Converter
Green Small Size 6 Digit 7 Segment LED Display Common Cathode for Frequency Converter
Green Small Size 6 Digit 7 Segment LED Display Common Cathode for Frequency Converter
Green Small Size 6 Digit 7 Segment LED Display Common Cathode for Frequency Converter
Green Small Size 6 Digit 7 Segment LED Display Common Cathode for Frequency Converter
Green Small Size 6 Digit 7 Segment LED Display Common Cathode for Frequency Converter
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB60312LG1B
Certification :
ISO9001&RoHS
Place of Origin :
Shenzhen，china
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT in advance
Supply Ability :
20000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Package Dimension :
40*12.5*6.25MM
Luminous Intensity :
120-160 mcd
Surface Colo :
Black
Character Height :
8mm (0.31 inch)
Lifespan :
80000hrs
Quality :
High Quality
Description

Product Description

Green small size 6 Digit 7 Segment LED Display common cathode for frequency converter

  • Specifications:

  • Display: 6 digit, 0.31 inch 7 segment led display

  • Charcter height: 8mm (0.31 inch)

  • Outer dimensions: 40*12.5*6.25MM

  • white segments black surface

  • With common cathode

  • Emitting color: Green

  • Luminous intensity: 50-60 mcd

  • Forward voltage: 1.8-2.2V/led

  • Forward current:5-10mA/led

  • Colors: red, blue, yellow green, pure green, amber, orange and pure white

Color:Pure Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.5 3.0 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=20mA 120 160 mcd
Spectrum With Of Half Value λ If=20mA 20 nm
Wavelength Dλ If=20mA 515 525 nm

Code:Yellow Green- J/JU

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 30 40 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 569 573 nm

Code:Amber/Yellow -Y

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 585 595 nm

Code:Orange -F

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 600 605 nm

  • Absolute Maximum Ratings(Ta=25℃)

  • Parameter Symbol Ratings Unit
    Forward Current(per dice) Ipm 20 mA
    Reverse Voltage(per dice) Vr 5 V
    Power Dissipation(per dice) Pm 80 mW
    Operating Temperature Range Topr -40~+120 ℃
    Storage Temperature Range Tstg -40~+120 ℃
    Solder Temperature(3 sec) Th 260 ℃

  • Applications:

  • Widely used for instrument panels,home appliances, digital indicators, led clock displays and set-top boxes,etc.
