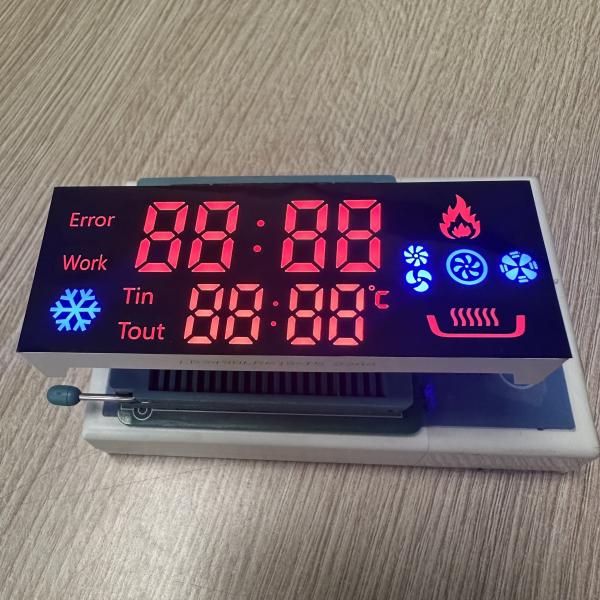

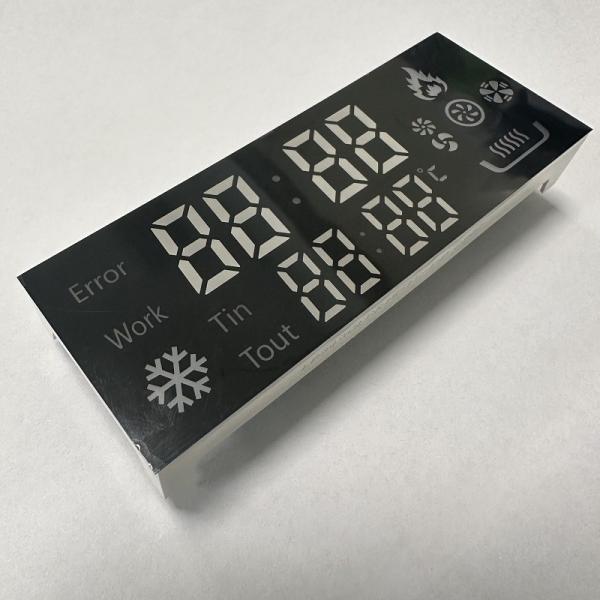

Customized Ultra Red/Blue 7 Segment LED Display for Gas Cooker Controller
Customized Ultra Red/Blue 7 Segment LED Display for Gas Cooker Controller
Customized Ultra Red/Blue 7 Segment LED Display for Gas Cooker Controller
Customized Ultra Red/Blue 7 Segment LED Display for Gas Cooker Controller
Customized Ultra Red/Blue 7 Segment LED Display for Gas Cooker Controller
Customized Ultra Red/Blue 7 Segment LED Display for Gas Cooker Controller
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB3490LRB1S-T5
Certification :
ISO9001&RoHS
Place of Origin :
Shenzhen，china
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT in advance
Supply Ability :
20000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Life Time :
more than 3 years
Face Colour :
Black
Materials :
Waterproof
Operating Temperature :
+105C ~ +120C
Forward Current :
5-10mA/led
Forward Voltage :
2.8-3.2V
Description

Product Description

Package dimensions: 90*34*14mm

Made with yellow segments black surface with film/sticker
Polarity: Common Cathode

LED Color: white

Luminous intensity: 100-120mcd

Forward voltage: 2.8-3.2V

Recommanded Forward current: 5-10mA/led

Emitting Colour: in red,yellow green,pure green,blue, amber, orange,land multicolour

Operating temprature: max. +105C ~ +120C

Color:Pure Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.5 3.0 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=20mA 120 160 mcd
Spectrum With Of Half Value λ If=20mA 20 nm
Wavelength Dλ If=20mA 515 525 nm

Code:Yellow Green- J/JU

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 30 40 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 569 573 nm

Code:Amber/Yellow -Y

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 585 595 nm

Code:Orange -F

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 600 605 nm

Code:Super Bright Red -R

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 630 635 nm

Code:Ultra Bright Red -UR

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 90 100 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 620 625 nm

Code:Ultra Bright Blue -BH

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 3.0 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 100 120 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 460 470 nm


High luminous intensity
Low power cumsuption
Stable perforance
Continuous uniform segments
Big viewing angle
Longe lifetime
Meet RoHS Compliant

Display can withstand environment temperature +105ºC - +120ºC

RoHS/REACH Compliant

Application :

Ideal for home appliances ,Multifunction Digital Oven Timer Control, gas cooker , and so on .
