4 Digit 7 Segment Yellow/Green LED Display For Timer Control
4 Digit 7 Segment Yellow/Green LED Display For Timer Control
4 Digit 7 Segment Yellow/Green LED Display For Timer Control
4 Digit 7 Segment Yellow/Green LED Display For Timer Control
4 Digit 7 Segment Yellow/Green LED Display For Timer Control
4 Digit 7 Segment Yellow/Green LED Display For Timer Control
Specifications
Luminous Intensity :
50-60MCD
Brightness :
≥ 1000 nits (typical)
Dimensions :
54.34×17.6×11.5MM
Origin :
shenzhen
Face Colour :
white segment black face
Emitting Color :
ultra bright blue
Tradecolor Term :
EXW
Brand Name :
LIGHT-BO
Model Number :
LB5418LYJ1S
Certification :
ISO9001&RoHS
Place of Origin :
SHENZHEN，CHINA
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT in advance
Supply Ability :
50000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Supplier Type :
ODM, OEM, Original Manufacturer,
Led Brand :
EPISTAR
Contrast Ratio :
≥ 3000:1
Warranty :
1-3 Years
Specification :
Video Wall, Digital Poster
Emitting Colour :
Ultra bright blue
Display Brightness :
Ultra Bright
More Available :
P4.81, P6.67, P8, P10, etc..
Wavelength :
585-595NM
Dimenisons :
41mm*8mm
Cabinet Material :
Iron Steel
Screen Dimension :
sustomized size
Description

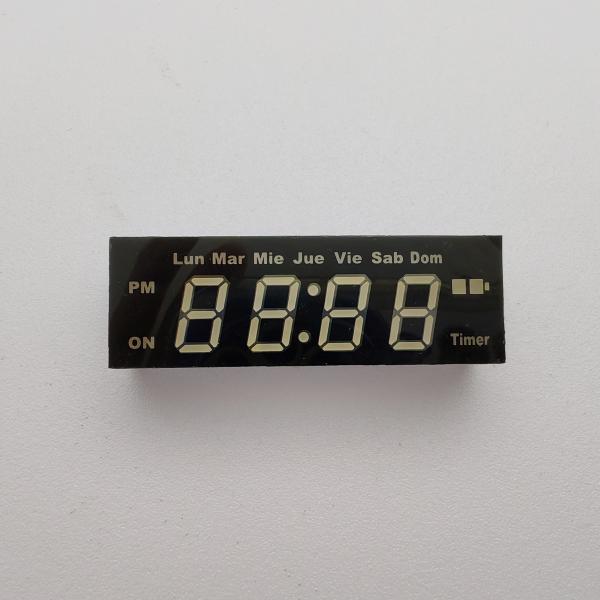

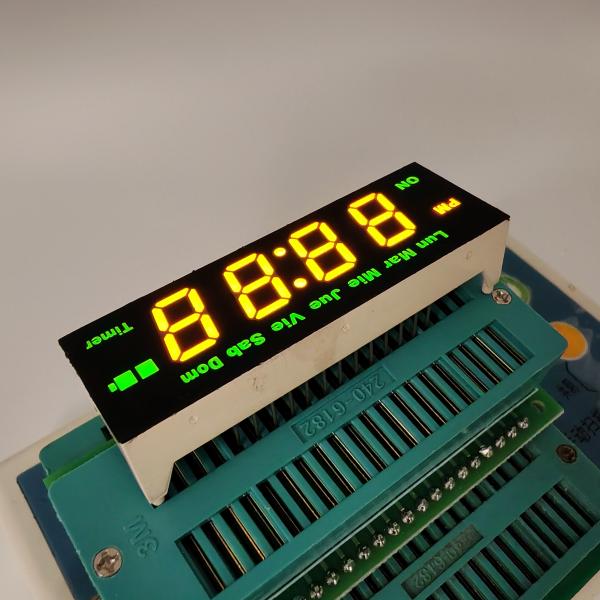

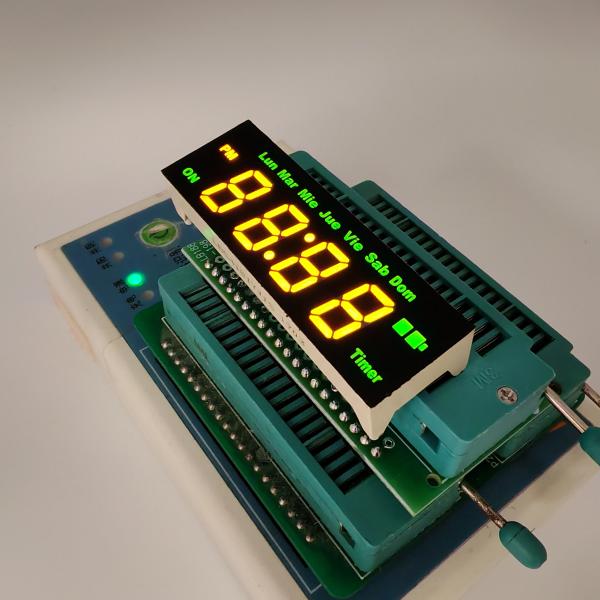

4 Digit 7 Segment Yellow/Green LED Display For Timer Control
Yellow/Green 4 Digit 7 Segment LED Display for timer control applications, offering superior performance and reliability.
Physical Dimensions
  • Compact package: 54.34×17.6×11.5mm (L×W×H)
  • Optimal character height: 10.16mm
  • Matte black face for superior contrast (light absorption >90%)
Electrical Parameters
  • Common cathode configuration
  • Energy efficient: 2.8-3.2V forward voltage
  • High brightness: 100-120mcd/LED output
Optical Characteristics
  • Standard yellow/green display
  • Full color options available: Red, Blue, Pure Green, White, Amber, Orange, Yellow
  • Precise chromaticity: X/Y coordinates 0.29-0.31
Performance Advantages
  • 140° ultra-wide viewing angle
  • <5% luminosity variation between segments
  • 50,000+ hours operational lifespan
  • 40% lower power consumption vs conventional LEDs
  • Vibration resistance
  • Instant-on capability with <1ms response time
  • UV-resistant epoxy encapsulation
Certifications & Compliance
  • RoHS/REACH compliant components
  • IPC-610 Class 2 manufacturing standards
  • Operating temperature: -30°C to +85°C
4 Digit 7 Segment Yellow/Green LED Display For Timer Control 4 Digit 7 Segment Yellow/Green LED Display For Timer Control
Technical Specifications
Yellow Green - J/JU
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.4 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensity Iv If=10mA 30
40 mcd
Spectrum Width Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 569
574 nm
Amber/Yellow - Y
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.5 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensity Iv If=10mA 60
80 mcd
Spectrum Width Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 585
595 nm
Orange - F
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.4 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensity Iv If=10mA 60
80 mcd
Spectrum Width Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 600
605 nm
Super Bright Red - R
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensity Iv If=10mA 50
60 mcd
Spectrum Width Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 630
635 nm
Ultra Bright Red - UR
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensity Iv If=10mA 80
100 mcd
Spectrum Width Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 625
635 nm
Pure Green
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6
3.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensity Iv If=10mA 120
180 mcd
Spectrum Width Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 515
525 nm
Ultra Bright Blue - BH
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8
3.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensity Iv If=10mA 120
140 mcd
Spectrum Width Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 460
465 nm
Ultra Bright White - WH
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8
3.2 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensity Iv If=10mA 120
140 mcd
LED Color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32
0.30,0.33 nm
Absolute Maximum Ratings (Ta=25ºC)
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature (≤3 seconds) Th 260 ºC
Manufacturer Information
Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) stands as a paragon of excellence in OEM and ODM solutions since 2006. With ISO 9001:2015 certification, our rich history of over 15 years highlights our unwavering commitment to innovation and superior quality.
Product Applications
4 Digit 7 Segment Yellow/Green LED Display For Timer Control
Our cutting-edge LED displays including 7 Segment LED Display, Customized LED Display, and Numeric LED Display are engineered for applications in household appliances, temperature and humidity monitoring, refrigerator controllers, thermostats, and HVAC systems.
Certifications
4 Digit 7 Segment Yellow/Green LED Display For Timer Control
Office and Factory Overview
4 Digit 7 Segment Yellow/Green LED Display For Timer Control 4 Digit 7 Segment Yellow/Green LED Display For Timer Control 4 Digit 7 Segment Yellow/Green LED Display For Timer Control 4 Digit 7 Segment Yellow/Green LED Display For Timer Control
Company Exhibitions
4 Digit 7 Segment Yellow/Green LED Display For Timer Control 4 Digit 7 Segment Yellow/Green LED Display For Timer Control
Shipping and Transportation
4 Digit 7 Segment Yellow/Green LED Display For Timer Control 4 Digit 7 Segment Yellow/Green LED Display For Timer Control
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.
Q2: What is your main products?
A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and more.
Q3: What is your MOQ?
A: Our MOQ is 1000 pcs, but we can accept sample orders and small orders with quantity less than our MOQ.
Q4: Before placing order, can I get some samples for test?
A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5: How long is your delivery time?
A: Delivery time: About 10-20 days; According to order quantity and raw materials. For urgent orders with available raw materials, we can adjust production to complete within 7-10 days.
Q6: What is your terms of payment?
A: We accept bank transfer, T/T, Western Union and Paypal with small amount. Payment methods are negotiable.
Q7: Can you quote me FOB prices?
A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.
Q8: How can I get your catalogue and price list?
A: Please provide your email address or contact us directly from our website for our catalogue and price list.
Q9: Can I negotiate the prices?
A: Yes, we may consider discounts for bulk orders.
Q10: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping. We will provide charges upon request.
Q11: Can you do custom design products?
A: Yes, OEM & ODM services are available. We can customize sizes, LED color and functional icons according to your requirements.
Q12: If I send my design, can you make it for myself only, and will not show it to anyone else?
A: Yes, we will not show or sell your design to others without your authorization.
Q13: What will be the samples lead time for customized products?
A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.
Q14: What is the shipping methods?
A: We usually ship by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA etc. You can choose the method that works best for you.
Q15: How do you ensure the quality of your products?
A: We are ISO 9001 QMS certified manufacturers with over 20 years experience. We conduct twice 100% testing for all products before shipment.
