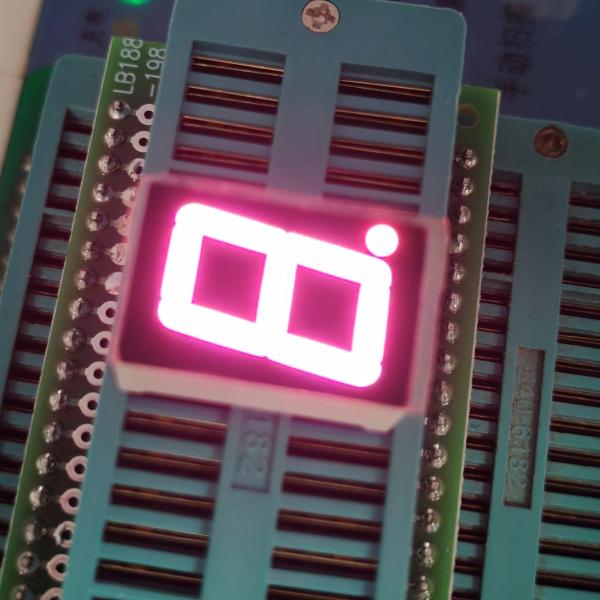

14.2mm (0.56) Single Digit 7 Segment Ultra Bright Pink LED Display Common Anode for Digital Indicator
14.2mm (0.56) Single Digit 7 Segment Ultra Bright Pink LED Display Common Anode for Digital Indicator
14.2mm (0.56) Single Digit 7 Segment Ultra Bright Pink LED Display Common Anode for Digital Indicator
14.2mm (0.56) Single Digit 7 Segment Ultra Bright Pink LED Display Common Anode for Digital Indicator
14.2mm (0.56) Single Digit 7 Segment Ultra Bright Pink LED Display Common Anode for Digital Indicator
14.2mm (0.56) Single Digit 7 Segment Ultra Bright Pink LED Display Common Anode for Digital Indicator
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB10561BP4B-D
Certification :
ISO9001&RoHS
Place of Origin :
Shenzhen，china
MOQ :
1000
Price :
Negotiate
Supply Ability :
20000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Display Brightness :
High
Display Type :
7 Segment
Delivery :
Fast
Screen Dimension :
custom made
Usage :
intrument panel indicator
Character :
enviromental protection epoxy
Description

Ultra bright Pink 14.2mm (0.56") Single Digit 7 Segment LED Display Common Anode for Digital Indicator

Product descriptions:

Package dimension: 12.6*19*8mm
Character height: 14.2mm (0.56 INCH)
Polarity: common anode
Colour: ultra bright pink
Face colour: black
X&Y: 0.29-0.31
Luminous intensity: 100-120mcd/led
Forward voltage: 2.8-3.2V
Emitting colors: red, blue, yellow green, pure green,white, amber, orange, and yellow

Code:Super Bright Red -R

Parameter

Symbol

Condition

Min

Typ

Max

Unit

Forward Voltage

Vf

If=10mA

1.8

2.2

V

Reverse Voltage

Vr

Ir=10uA

5

V

Luminous Intensty

Iv

If=10mA

50

60

mcd

Spectrum With Of Half Value

△λ

If=10mA

20

nm

Wavelength

Dλ

If=10mA

630

635

nm

Code:Ultra Bright Red -UR

Parameter

Symbol

Condition

Min

Typ

Max

Unit

Forward Voltage

Vf

If=10mA

1.8

2.2

V

Reverse Voltage

Vr

Ir=10uA

5

V

Luminous Intensty

Iv

If=10mA

90

100

mcd

Spectrum With Of Half Value

△λ

If=10mA

20

nm

Wavelength

Dλ

If=10mA

620

625

nm

Code:Ultra Bright Blue -BH

Parameter

Symbol

Condition

Min

Typ

Max

Unit

Forward Voltage

Vf

If=10mA

2.6

3.0

V

Reverse Voltage

Vr

Ir=10uA

5

V

Luminous Intensty

Iv

If=10mA

100

120

mcd

Spectrum With Of Half Value

△λ

If=10mA

20

nm

Wavelength

Dλ

If=10mA

460

470

nm

Absolute Maximum Ratings(Ta=25℃)

Parameter

Symbol

Ratings

Unit

Forward Current(per dice)

Ipm

20

mA

Reverse Voltage(per dice)

Vr

5

V

Power Dissipation(per dice)

Pm

80

mW

Operating Temperature Range

Topr

-40~+120

℃

Storage Temperature Range

Tstg

-40~+120

℃

Solder Temperature(3 sec)

Th

260

℃

Product features:
OEM and ODM orders are accepted
High luminous intensity and reliability
Big viewing angle
Stable performance
Long lifetime
Easy assembly
IC Compatible
RoHS directive-compliant

Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on

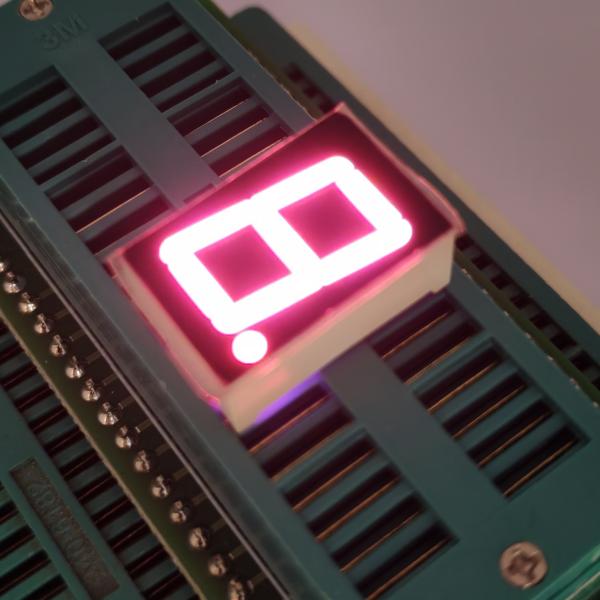

14.2mm (0.56
