Round Common Anode 7-Segment LED Temperature Display Controller
Round Common Anode 7-Segment LED Temperature Display Controller
Round Common Anode 7-Segment LED Temperature Display Controller
Round Common Anode 7-Segment LED Temperature Display Controller
Round Common Anode 7-Segment LED Temperature Display Controller
Round Common Anode 7-Segment LED Temperature Display Controller
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB-RC41IUR1S
Certification :
ISO9001&RoHS
Place of Origin :
SHENZHEN，CHINA
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT in advance
Supply Ability :
50000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Rating :
IP54
Dimenisons :
41*8MM
Digit Height :
10.2MM
Operating Temperature :
-20°C to60°C
Warranty :
3 Years
Usage :
Indoor Outdoor Semi-outdoor
Description

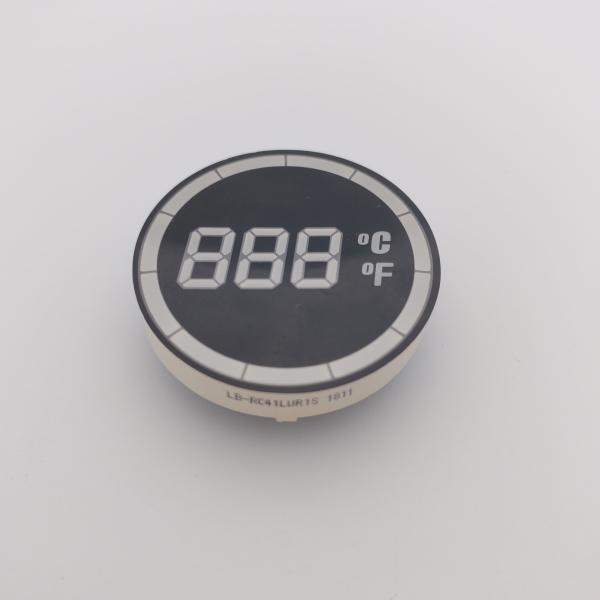

Round Common Anode 7-Segment LED Temperature Display Controller

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Code:Super Bright Red -R

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 630 635 nm

Code:Ultra Bright Red -UR

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 90 100 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 620 625 nm

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120 ℃
Storage Temperature Range Tstg -40~+120 ℃
Solder Temperature(3 sec) Th 260 ℃

Applications:
Widely used for lift position indicators, elevator floor indicators and display screens,moving signs,message boards,home appliances and so on

Industrial Equipment

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems

FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Segment LED Displays.
Q: How long is your delivery time?
A: Delivery time:About 15-20 days; According to order quantity.
Q: What is your terms of payment?
A: T/T,Western Union,Paypal with small amount.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list.
Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of mixed goods.
Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping.We will offer the charge to you as you requested.
Q: May I have some samples for testing?
A: Yes,we can provide 5-10pcs free samples in your delivery cost.
