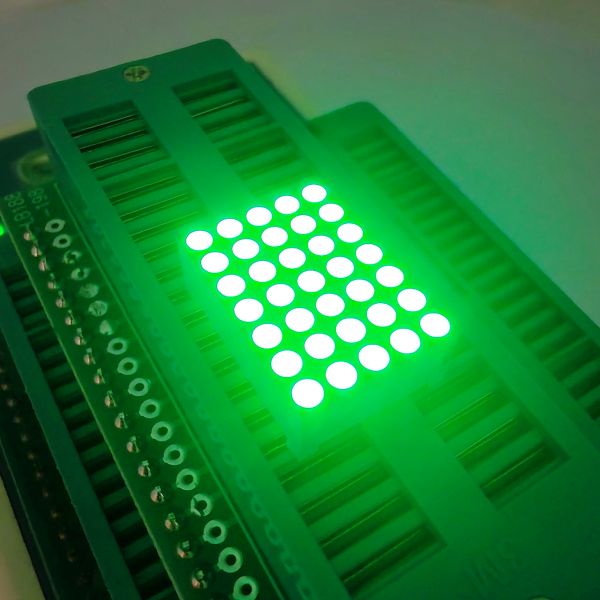

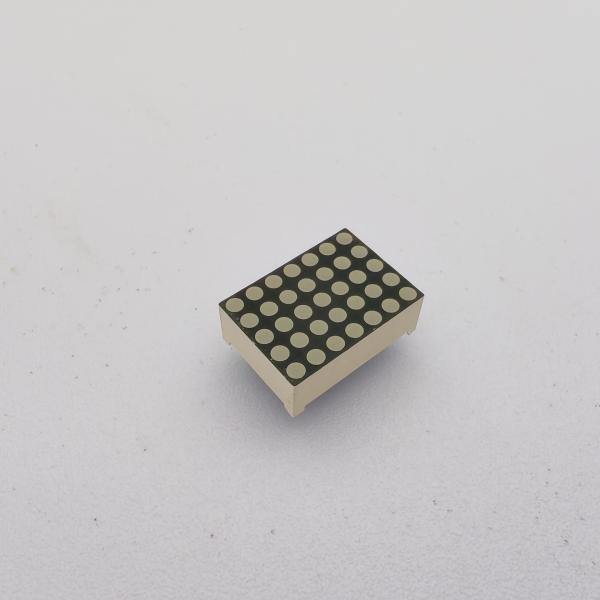

0.7inch Pure Green 5X7 DOT Matrix LED Lift Display
0.7inch Pure Green 5X7 DOT Matrix LED Lift Display
0.7inch Pure Green 5X7 DOT Matrix LED Lift Display
0.7inch Pure Green 5X7 DOT Matrix LED Lift Display
0.7inch Pure Green 5X7 DOT Matrix LED Lift Display
0.7inch Pure Green 5X7 DOT Matrix LED Lift Display
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB02571BG1S-D
Certification :
ISO9001&RoHS
Place of Origin :
SHENZHEN，CHINA
MOQ :
1000
Price :
Negotiate
Payment Terms :
TT in advance
Supply Ability :
50000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Pixel Pitch :
1.9mm
Storage Temperature :
-40°C to +85°C
Current :
20mA
Material :
PCB,Epoxy,LED Chip,plastic
Light Points :
elegant design ,exquiste craftmanship
Polarity :
Common anode
Description

Product Description

-- White segment Black surface

-- High luminous intensity

-- Low current operation

-- Stable performance

-- Continuous uniform segments

-- Easy mounting on PCB

-- IC compatible

-- RoHS compliant

Application of Segment LED Displays

-- Audio Equipment or instrument panels;

-- General using for digital indicators;

-- Multimedia products;

-- Bank exchange rate display;

-- LED clock display;

-- Display for gas station and other various display areas of equipment/machine.

Industrial Equipment

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security system

Code:Ultra Bright White -WH

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 3.0 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 120 140 mcd
LED color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32 0.30,0.33 nm

Code:Yellow Green- J/JU

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 30 40 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 569 573 nm

Code:Amber/Yellow -Y

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 585 595 nm

Code:Orange -F

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 600 605 nm

Code:Super Bright Red -R

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 50 60 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 630 635 nm

Code:Ultra Bright Red -UR

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 90 100 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 620 625 nm

Code:Ultra Bright Blue -BH

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 3.0 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=10mA 100 120 mcd
Spectrum With Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 460 470 nm

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120 ℃
Storage Temperature Range Tstg -40~+120 ℃
Solder Temperature(3 sec) Th 260 ℃
