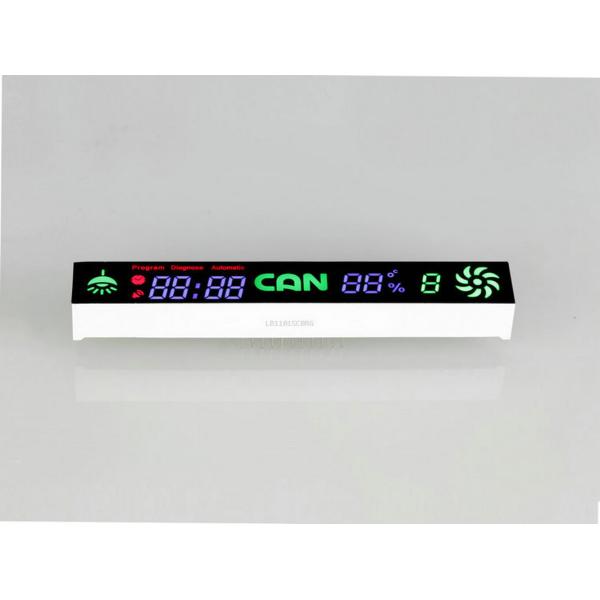

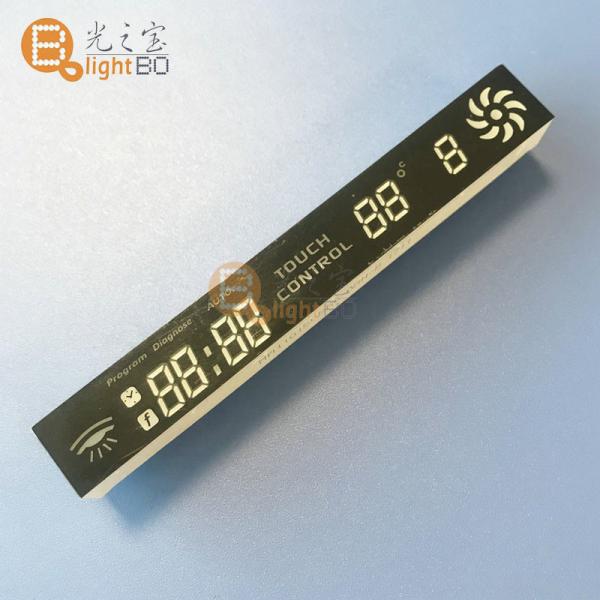

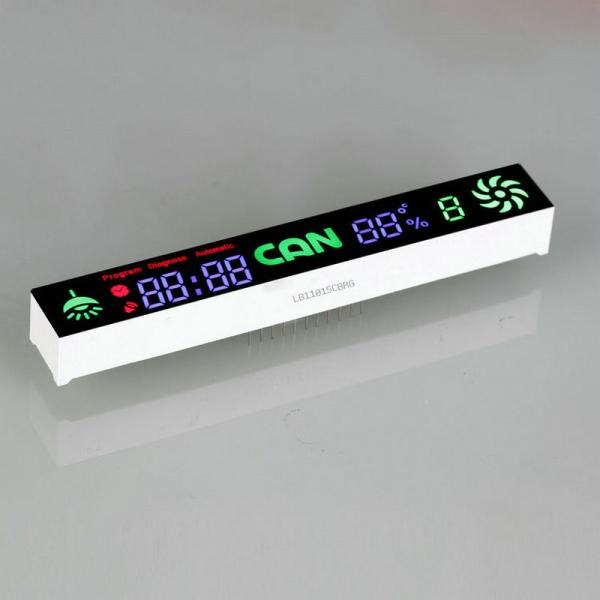

MULTICOLOUR CUSTOM 7 SEGMENT LED DISPLAY FOR KITCHEN HOOD
MULTICOLOUR CUSTOM 7 SEGMENT LED DISPLAY FOR KITCHEN HOOD
MULTICOLOUR CUSTOM 7 SEGMENT LED DISPLAY FOR KITCHEN HOOD
MULTICOLOUR CUSTOM 7 SEGMENT LED DISPLAY FOR KITCHEN HOOD
MULTICOLOUR CUSTOM 7 SEGMENT LED DISPLAY FOR KITCHEN HOOD
MULTICOLOUR CUSTOM 7 SEGMENT LED DISPLAY FOR KITCHEN HOOD
MULTICOLOUR CUSTOM 7 SEGMENT LED DISPLAY FOR KITCHEN HOOD
MULTICOLOUR CUSTOM 7 SEGMENT LED DISPLAY FOR KITCHEN HOOD
MULTICOLOUR CUSTOM 7 SEGMENT LED DISPLAY FOR KITCHEN HOOD
MULTICOLOUR CUSTOM 7 SEGMENT LED DISPLAY FOR KITCHEN HOOD
Specifications
Brand Name :
LIGHT-BO
Model Number :
LB11015
Certification :
ROHS
Place of Origin :
SHENZHEN,CHINA
MOQ :
1000 pcs
Price :
Negotiation
Payment Terms :
T/T,
Supply Ability :
30,000 pcs /day
Delivery Time :
15-20 work days
Packaging Details :
EPE +CARTON
Outer dimension :
110*15mm
Polarity :
Common Anode
lifespan :
100000hrs
Usage :
Indoor/Outdoor
Emitting Color :
Super bright blue
Reverse Current :
10uA
Forward Voltage :
2.8-3.2V/led
Delivery Term :
Ex-work
Type :
Customized
Face Colour :
Black Face
Description

Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe

Code:Blue

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.8 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=20mA 20 40 mcd
Spectrum With Of Half Value △λ If=20mA 20 nm
Wavelength Dλ If=20mA 460 465 nm

Code:Pure Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8 2.5 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=20mA 20 40 mcd
Spectrum With Of Half Value △λ If=20mA 20 nm
Wavelength Dλ If=20mA 525 530 nm

Code:Ultra Bright Red

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.8 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=20mA 25 35 mcd
Spectrum With Of Half Value △λ If=20mA 20 nm
Wavelength Dλ If=20mA 625 635 nm

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40～+120 ℃
Storage Temperature Range Tstg -40～+120 ℃
Solder Temperature(3 sec) Th 260

℃

LED working lifetime 100,000hrs, Absolute Maximum Rating at Ta=25℃

​
