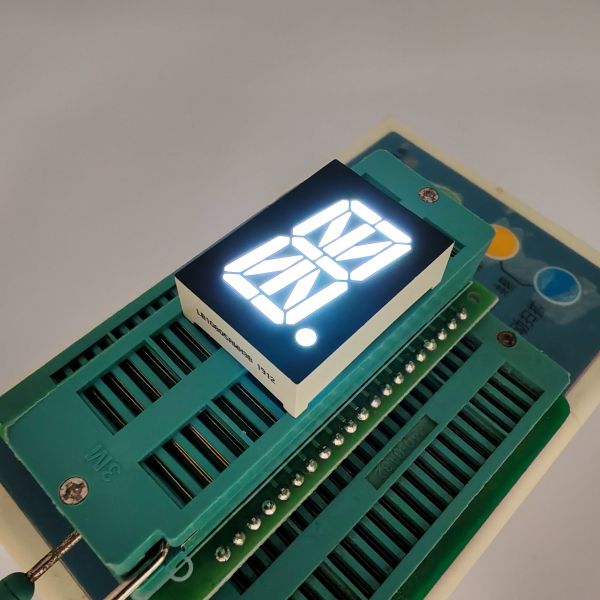

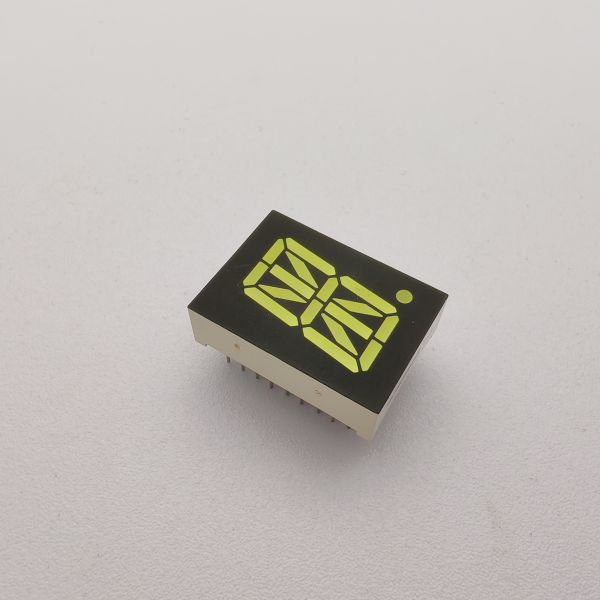

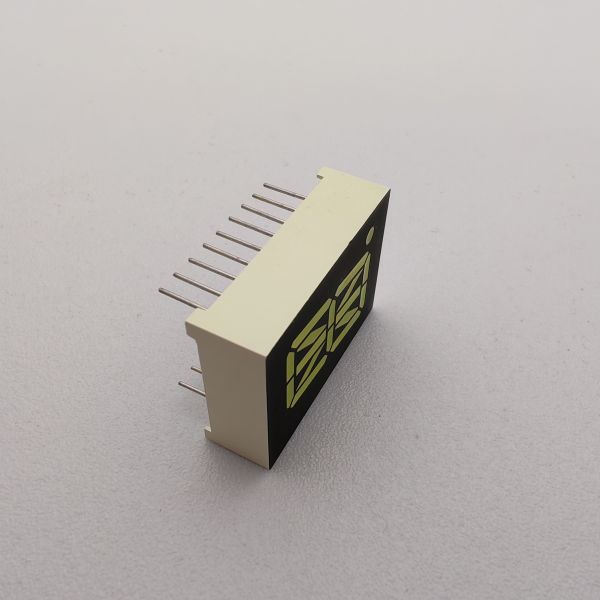

16-Segment White Alphanumeric LED Display Module
16-Segment White Alphanumeric LED Display Module
16-Segment White Alphanumeric LED Display Module
16-Segment White Alphanumeric LED Display Module
16-Segment White Alphanumeric LED Display Module
16-Segment White Alphanumeric LED Display Module
Specifications
Currentpersegment :
20mA
Voltage :
5V
Type :
16 Segment Led display
Outer Dimensions :
27.7*20*8.5mm
Brand Name :
LIGHT-BO
Model Number :
LB10805DWH3B
Certification :
ISO9001&RoHS
Place of Origin :
SHENZHEN，CHINA
MOQ :
1000
Price :
Negotiate
Payment Terms :
T/T,Western Union
Supply Ability :
20000pcs/days
Delivery Time :
15-20days
Packaging Details :
EPE+Carton
Warranty :
TWO Years
Material :
Epoxy Resin
Service :
OEM / ODM
Segment Quantity :
16 Segment
Size :
78*19mm
Digit Number :
ONE digit
Advantage :
Stable quality,Prompt delivery
Led Color :
Ultra Bright white
Emitting Colour :
Ultra bright Red
Pixels :
10mm,7mm,25mm,8.0,10.20mm
Displaytype :
LED
Tube Chip Color :
Full Color
Luminous Intensty :
120-140MCD
Brightness :
High
Luminous Color :
Yellow
Storage Temperature :
-40°C to +85°C
Life Span :
50000 hours
Description
16-Segment White Alphanumeric LED Display Module
Product Overview
Standard Model: LB10805DWH3B | Custom part number printing available
Digit Number 1 digit Can be configured as 2, 3, 4, 5, or 6 digits
Standard Color White Other colors include blue, pure green, yellow-green, orange, etc.
Polarity Common Anode Common Cathode also available
Lifespan 80,000 hours -
Free Samples Yes, supported Tooling samples require 15-20 working days
Sample Lead Time 5-7 working days -
Production Lead Time 15-20 working days Subject to order quantity
OEM/ODM Support Fully supported Based on customer drawings or ideas
Logo Printing Supported Customization based on provided artwork
Minimum Order Quantity (MOQ) 1,000 PCS First order MOQ can be 100-500 PCS
Technical Specifications
  • Optical Design: High-contrast white-on-black display ensuring superior legibility
  • Electrical Performance: High luminous intensity combined with low operating current
  • Optical Quality: Uniform segment illumination with consistent brightness
  • Integration: Designed for easy PCB mounting and direct IC interface compatibility
  • Environmental Compliance: Conforms to RoHS standards for environmental safety
16-Segment White Alphanumeric LED Display Module 16-Segment White Alphanumeric LED Display Module
Product Parameters by Color Code
Yellow Green - J/JU: Elevate your displays with vivid hues tailored to meet your unique display requirements.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.4V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA3040mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA569574nm
Amber/Yellow - Y: Choose this warm, inviting color to craft displays that command attention and exude warmth.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.5V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA6080mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA585595nm
Orange - F: Make your display settings pop with our dynamic and eye-catching color choice.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.4V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA6080mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA600605nm
Super Bright Red - R: Revel in the vibrancy of this rich, captivating color, perfect for any striking display.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA5060mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA630635nm
Ultra Bright Red - UR: Ensure superior visibility with an intense and vivid red that enhances any display.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.82.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA80100mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA625635nm
Pure Green: Opt for a refreshing and clear choice that complements eco-friendly designs effortlessly.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA2.63.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA120180mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA515525nm
Ultra Bright Blue - BH: Infuse your display with a cool, bright hue, lending a contemporary aesthetic to any setting.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA2.83.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA120140mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthDλIf=10mA460465nm
Ultra Bright White - WH: Achieve unparalleled clarity and sophistication with this immaculate choice, elevating your displays.
ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA2.83.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA120140mcd
LED Color TemperatureKIf=10mA5500206800K
Chromaticity CoordinatesX/YIf=10mA0.29,0.320.30,0.33nm
Absolute Maximum Ratings (Ta=25ºC)
Uncover the robust performance parameters that define the remarkable capabilities of our LED display.
ParameterSymbolRatingsUnit
Forward Current (per dice)Ipm20mA
Reverse Voltage (per dice)Vr5V
Power Dissipation (per dice)Pm80mW
Operating Temperature RangeTopr-40~+85ºC
Storage Temperature RangeTstg-40~+85ºC
Solder Temperature (≤3 seconds)Th260ºC
Company Profile
Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO), established in 2006, symbolizes excellence in OEM and ODM services. As an ISO 9001:2015 certified leader, our legacy of over 15 years is marked by quality and innovation.
LIGHTBO propels clients to new heights with high-quality, cost-effective custom solutions, reducing expenses and fortifying competitive advantages globally.
Product Applications
16-Segment White Alphanumeric LED Display Module
7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display: Our innovative products find applications in home appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and heating and cooling systems, showcasing our commitment to performance.
Certifications
16-Segment White Alphanumeric LED Display Module
Office and Factory Overview
16-Segment White Alphanumeric LED Display Module 16-Segment White Alphanumeric LED Display Module 16-Segment White Alphanumeric LED Display Module 16-Segment White Alphanumeric LED Display Module
Company Exhibitions
16-Segment White Alphanumeric LED Display Module 16-Segment White Alphanumeric LED Display Module
Various Transportation Methods
16-Segment White Alphanumeric LED Display Module 16-Segment White Alphanumeric LED Display Module
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.
Q2: What is your main products?
A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and so on.
Q3: What is your MOQ?
A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.
Q4: Before placing order, Can I get some samples for test?
A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5: How long is your delivery time?
A: Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order, and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.
Q6: What is your terms of payment?
A: We accept bank transfer, T/T, Western Union and Paypal with small amount. Details of payment methods can be negotiable.
Q7: Can you quote me FOB prices?
A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF, DDP.
Q8: How can I get your catalogue and price list?
A: Yes. Please let us know your email address or contact us from website directly for our catalogue and price list.
Q9: Can I negotiate the prices?
A: Yes, we may consider discounts for bulk orders.
Q10: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
Q11: Can you do custom design products?
A: Yes, OEM&ODM service are available. We can customize the sizes, LED color and functional icons according to your requirements.
Q12: If I send my design, can you make it for myself only, and will not show it to anyone else?
A: Yes, we will not show it or sell to others without your authorization.
Q13: What will be the samples lead time for customized products?
A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.
Q14: What is the shipping methods?
A: We usually ship the goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA etc. You can also choose the other way that best for you.
Q15: How do you ensure the quality of your products?
A: We are ISO 9001 QMS certified manufacturers with more than 20 years experience. We conduct twice 100% percent test for all of our products before shipment.
